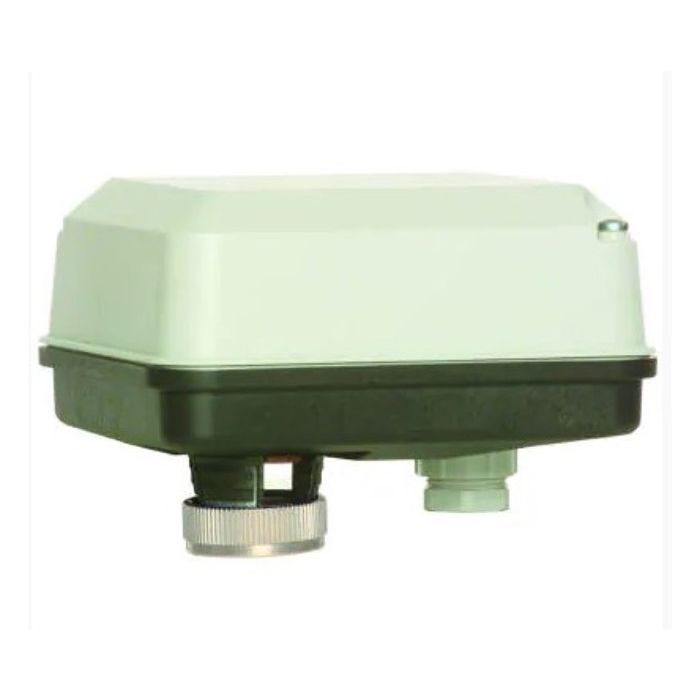

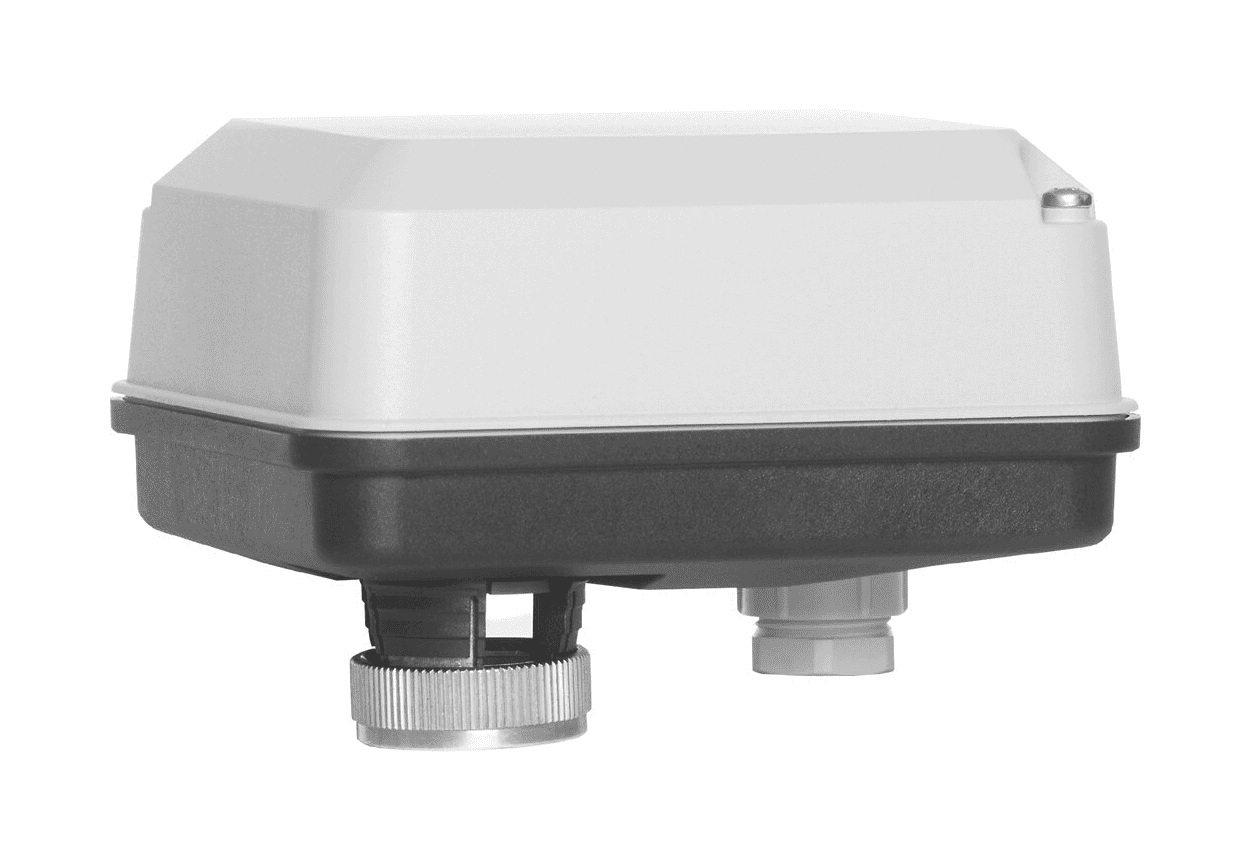

HONEYWELL M7435F1001 Spring Return Valve Actuator

Product Description

The Honeywell M7435F1001 Spring Return Valve Actuator offers precise control for HVAC applications. Designed for use with 1/2 inch and 3/4 inch V5800 series cartridge globe valves, this actuator features a modulating control signal, direct/reverse acting switch, and 50-second drive timing.

• Ensures reliable modulating control.
• Compatible with V5800 series valves.
• 50-second drive timing for efficient operation.

Product Highlights

This spring return valve actuator enhances system reliability and response time in commercial HVAC settings. The modulating control signal allows for precise airflow regulation, maximizing comfort and energy efficiency.

Product Information

Standard Information

• Model: M7435F1001
• Brand: Honeywell

Technical Specifications

• Control Type: Modulating 0-10Vdc/2-10Vdc
• Operating Voltage: 24V
• Connection: Threads onto V58XX valve bonnet
• Actuator Type: Spring Return
• Torque: 40.5 lb-in
• Fail Safe Mode: Spring return, operator retracts up
• Operating Temperature Range: -40 F to 158 F
• Humidity Range: 5% to 95% RH
