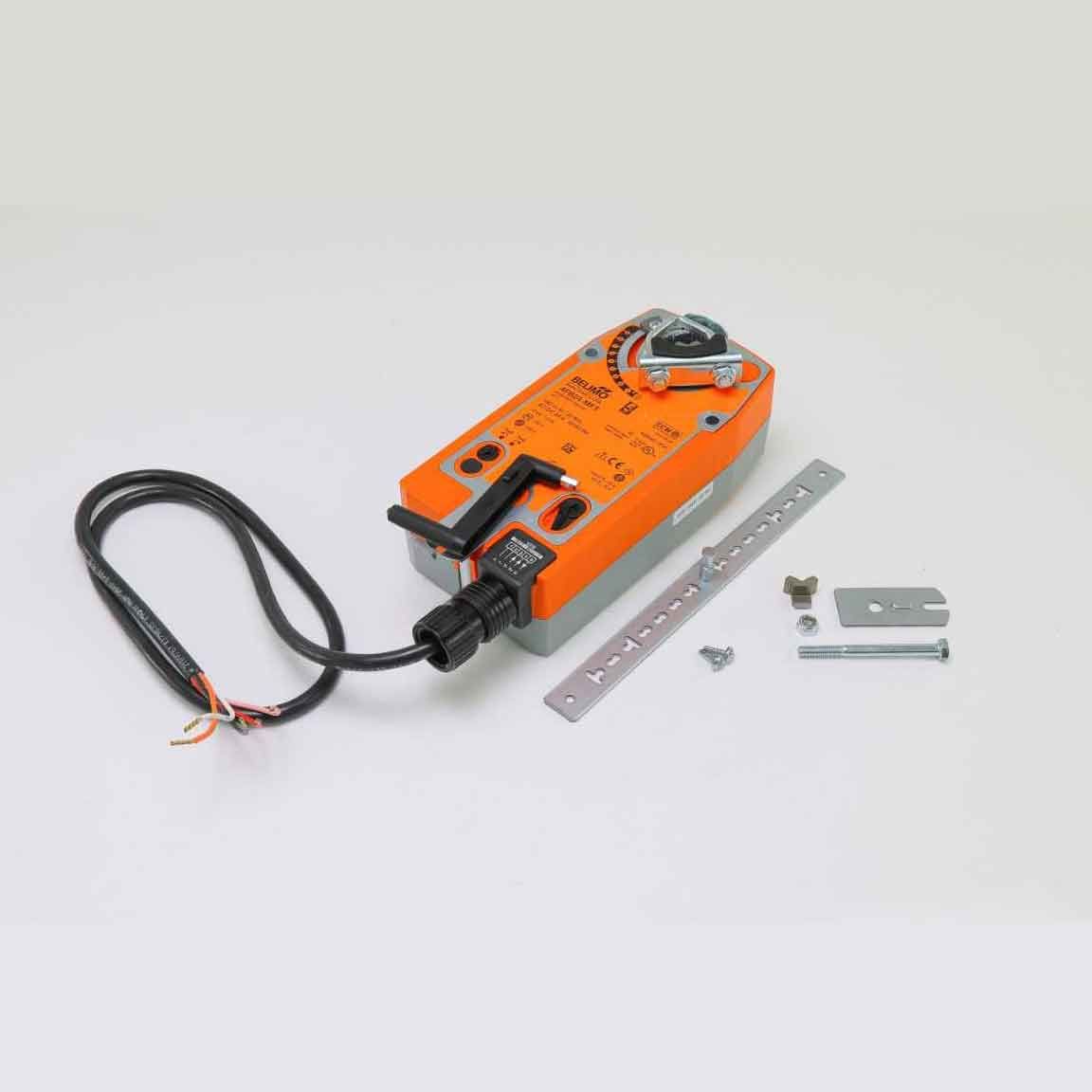

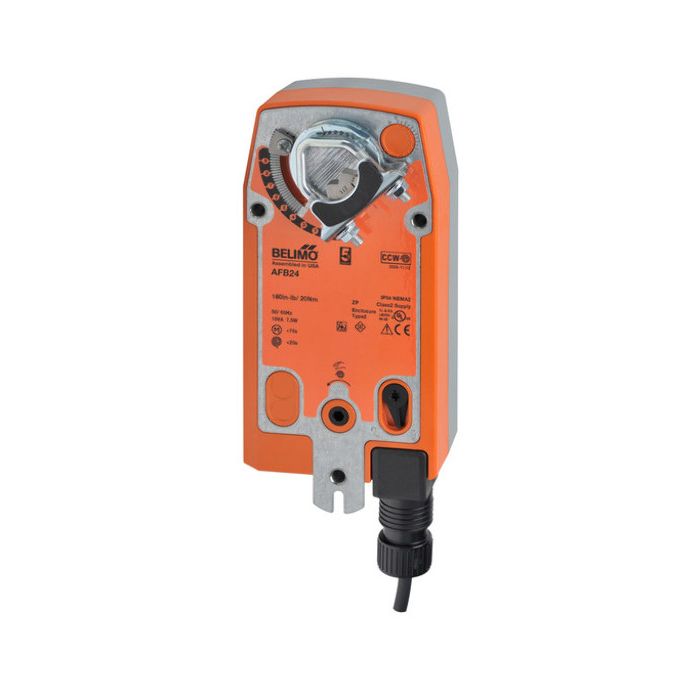

Belimo AFB24-MFT Direct Coupled Actuator 180 in-lb Replacement MPN

Product Description

The Belimo AFB24-MFT is a direct coupled actuator with a torque capacity of 180 inch-pounds. This actuator is used in HVAC systems for proportional modulation of dampers and control valves. It operates on a 24 Volt AC or DC power supply and is designed for a control signal range of 2 to 10 VDC.

• Mechanical spring return operation ensures reliable fail-safe performance.
• 95-degree rotation with a visual position indicator ranging from 0 to 95 degrees.
• Designed for installation in various HVAC applications.

Product Highlights

This actuator provides essential functionality for controlling dampers, ensuring effective air flow and temperature regulation in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: AFB24-MFT

Technical Specifications

• Power Consumption: 7.5 W Running, 3 W Holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 inch conduit cable
• Weight: 5.19 lbs
• Dimensions: 6.4 inches (Length) x 12.1 inches (Width) x 4.15 inches (Height)
• Housing: NEMA 2, IP54 UL Enclosure Type 2
