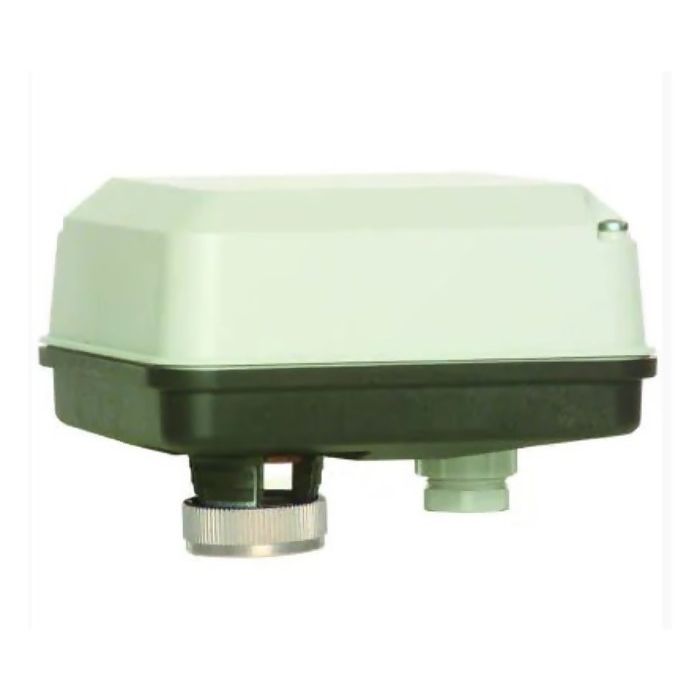

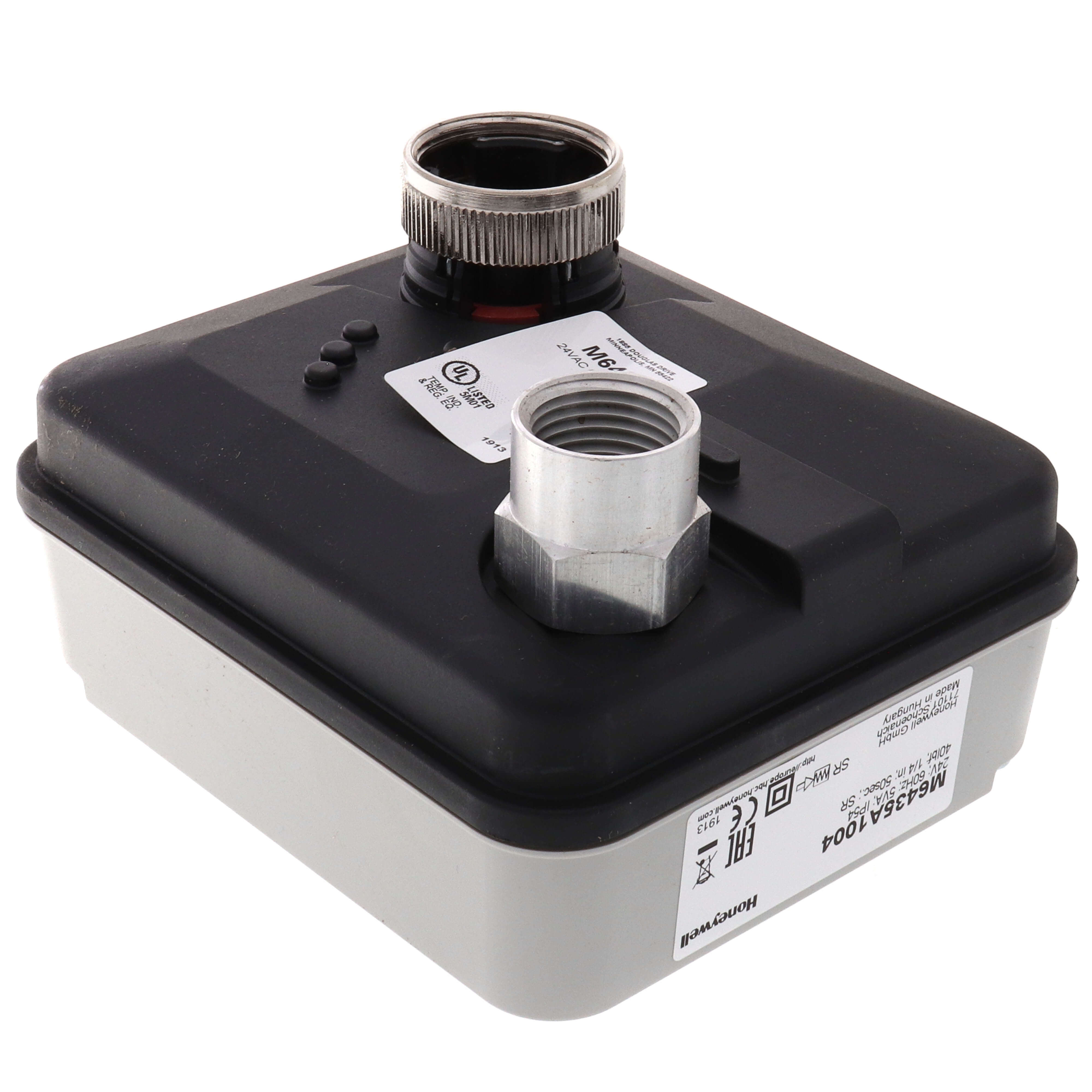

HONEYWELL M6435A1004 Spring Return Valve Actuator 24V UL 180N

Product Description

The Honeywell M6435A1004 is a robust spring return valve actuator designed for reliable operation in HVAC applications. Engineered to operate with 1/2 inch and 3/4 inch V5800 series cartridge globe valves, this actuator ensures precise control of water flow in heating and cooling systems.

• Designed for both 1/2 inch and 3/4 inch valve sizes
• Features a spring return mechanism
• Equipped with a floating control signal for enhanced precision

Product Highlights

Equipped with a 50-second drive timing, this actuator provides a quick response which is essential in maintaining the correct temperature and flow rate in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Model: M6435A1004
• Power: 24 Vac
• Safety Compliance: UL Certified

Technical Specifications

• Actuator Type: Valve
• Torque: 180 N
• Control Signal Type: Floating
• Fail Safe Mode: Spring Return
• Mounting Method: Threaded onto valve bonnet
• Temperature Range: up to 130 C
• Protection Class: IP54
