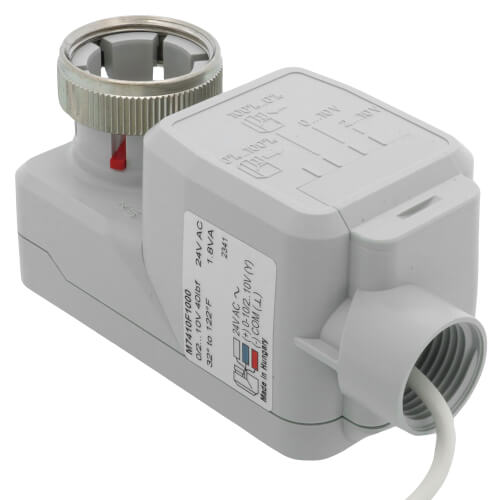

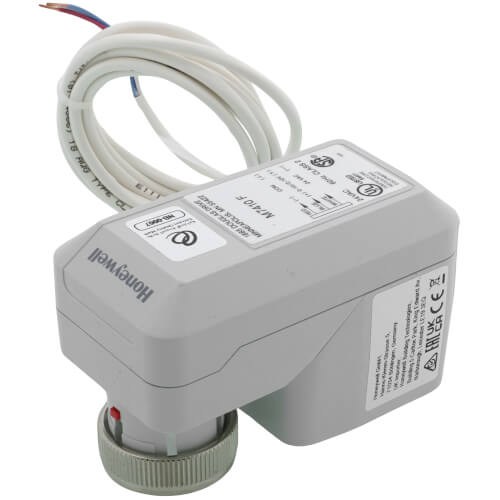

Honeywell M7410F1000 Modulating Cartridge Globe Valve Actuator

Product Description

Designed for precision control, the Honeywell M7410F1000 is a non-spring return valve actuator that enables dependable modulation of water flow in heating, ventilation, and air conditioning (HVAC) systems. This actuator is ideal for use with V58XX series cartridge globe valves.

• Robust 40.5 lb-in torque for powerful performance
• Adaptable control signals from 0 to 10 Vdc and 2 to 10 Vdc
• Compact design with visual position indication

Product Highlights

This actuator excels in environments requiring precise control and operation. The magnetic coupling ensures torque limitation without voltage supply dependency, facilitating error-free operation.

Product Information

Standard Information

• Operating Voltage: 24 Vac +10% -30%
• Temperature Range: Operational from 32 F to 122 F

Technical Specifications

• Torque Rating: 40.5 lbf
• Control Signal Range: 0 to 10 Vdc, 2 to 10 Vdc
• Mounting: Threaded onto V58XX valve bonnet
• Electrical Connections: Plenum-rated cable
• Construction Material: Low maintenance plastic housing
• Safety Approvals: UL94V-5V rated
• Dimensions: 2 3/8 in high x 1 15/16 in wide x 3 15/16 in deep
• Weight: 0.35 lb
