Product Description

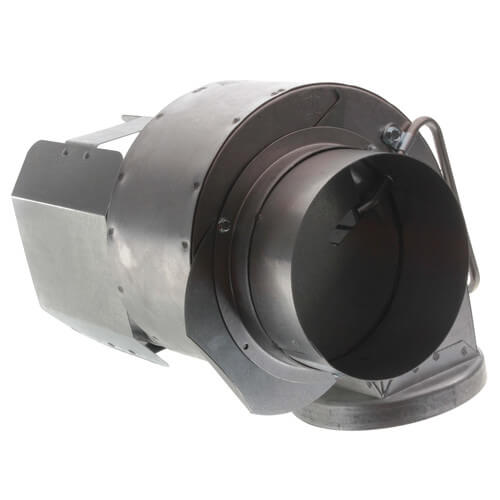

The Field Controls PVG-600 Power Venter is a galvanized steel unit designed to provide efficient sidewall venting for gas-fired heating appliances. The PVG-600 is suitable for natural and LP gas appliances, making it ideal for residential settings.
- Designed for gas appliances
- Operates at 115V
- Galvanized steel construction
Product Highlights

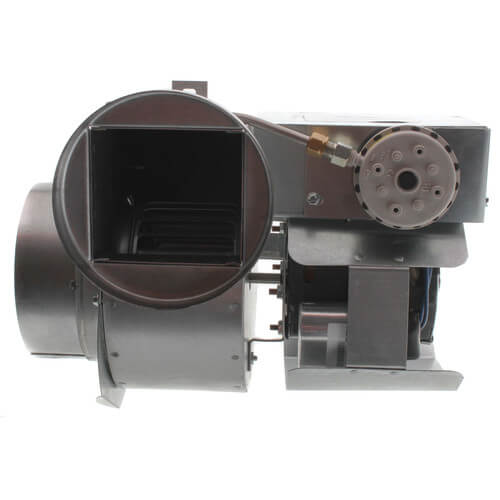

The PVG-600 Power Venter integrates a pressure switch and post-purge controls for safe operation. It effectively exhausts combustion gases and prevents backdrafts, ensuring the safe operation of heaters, boilers, and water heaters.
Product Information
Standard Information
-
Brand: Field Controls
-
MPN: PVG-600
-
Product Type: Gas Venter
Technical Specifications
-
Voltage: 115V
-
Amps: 1.5
-
Watts: 167W
-
Height: 8.75 inches
-
Width: 9.75 inches
-
Depth: 8.5 inches
-
Vent Pipe Diameter: 5 inches
-
Inlet and Outlet Diameter: 5 inches
-
Application: Gas
-
Construction Material: Galvanized Steel
-
Maximum Heat Input: 400,000 BtuH
-
Minimum Heat Input: 145,000 BtuH
-
Maximum Static Pressure: 1 3/8 inches wc
-
Agency Compliance: ETL
-
Maximum Fan Speed: 3,000 RPM
-
Maximum Inlet Air Temperature: 550 Degrees F
-
Inlet Diameter: 5 inches
-
Outlet Diameter: 5 inches
-
Weight: 10.94 lbs
