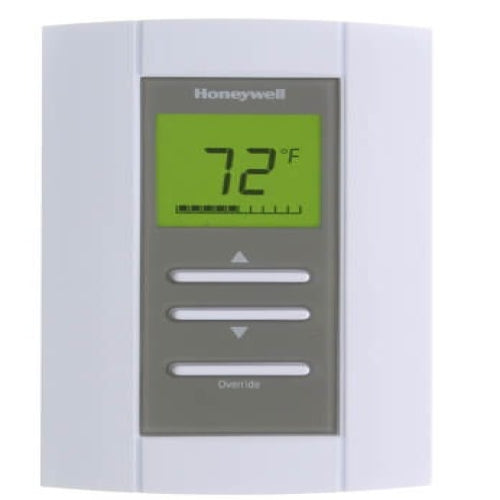

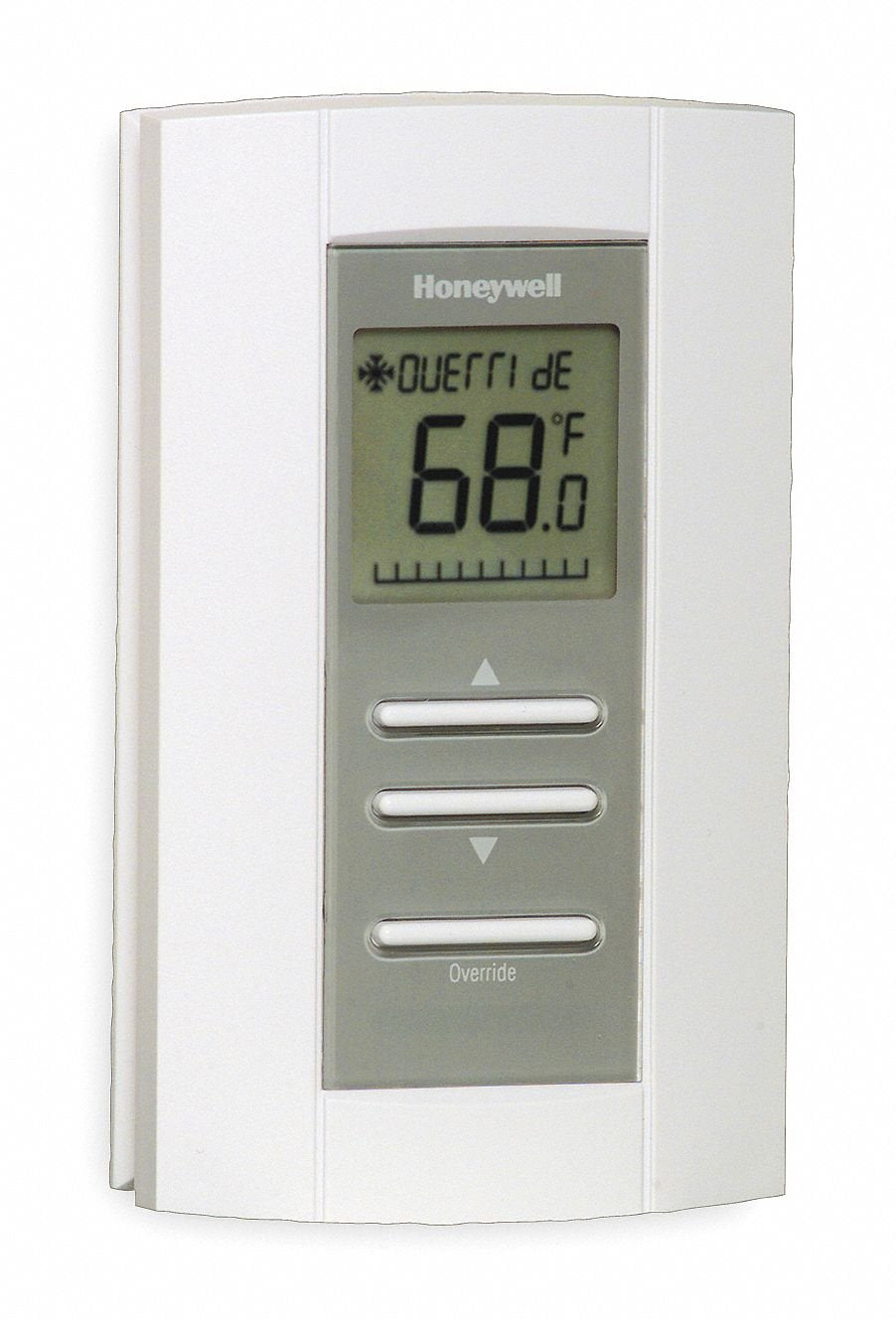

Honeywell TB6980B1006 Zonepro Floating Thermostat with 2 Additional Outputs

Product Description

The Honeywell TB6980B1006 Zonepro Floating Thermostat is engineered for reliable control in low-voltage pressure-dependent Variable Air Volume (VAV) applications. The thermostat offers floating control along with two additional outputs, suitable for applications needing precise temperature adjustments.

• Offers floating control for variable air volume systems
• Includes two additional output controls for enhanced functionality
• Features a night setback (NSB) terminal to optimize energy savings

Product Highlights

This thermostat is adept at managing max and min set points for heating and cooling, ensuring optimal environmental conditions in commercial buildings.

Product Information

Standard Information

• Color: Multicolor
• Mounting: Wall mount
• Dimensions: 5.6 inches x 3.4 inches x 1.8 inches

Technical Specifications

• Control Range: 50F to 95F
• Power Supply: 24 Vac
• Output Signal Type: Floating
• Output Signal Burden: 0.5A max @ 24Vac
• Additional Outputs: 1 Analog/TRIAC, 1 TRIAC
• Frequency: 60 Hz
