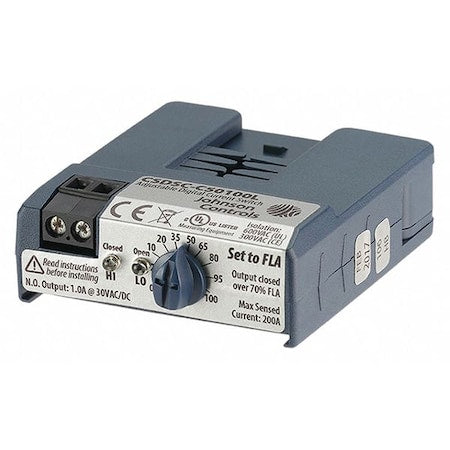

Johnson Controls CSDSC-C50100L-1 Current Sensing Relay 24V NO 0.50-100Amp

Product Description

The Johnson Controls CSDSC-C50100L-1 Current Sensing Relay is designed for precise monitoring and control of electrical circuits with high current loads in industrial environments. This 24V nominal voltage relay with a normally open (NO) contact configuration can handle currents from 0.50 to 100 amps.

• Adjustable trip point from 0.5 to 100 amps offers tailored control.
• Features a split core design for easy installation without disrupting existing wiring.
• Equipped with an LED status indicator for quick diagnostics.

Product Highlights

This relay's robust construction and reliability are suited for demanding applications such as power generation, marine installations, and industrial machinery control.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: CSDSC-C50100L-1

Technical Specifications

• Input Voltage: 24V AC
• Contact Rating (AC): 10 A @ 125V
• Contact Rating (DC): 1 A @ 30V
• Current Rating: 150 A
• Mounting Style: Surface
• Wire Gauge: 14 AWG, 24 AWG
• Body Depth: 2.23 inches
• Body Height: 2.5 inches
