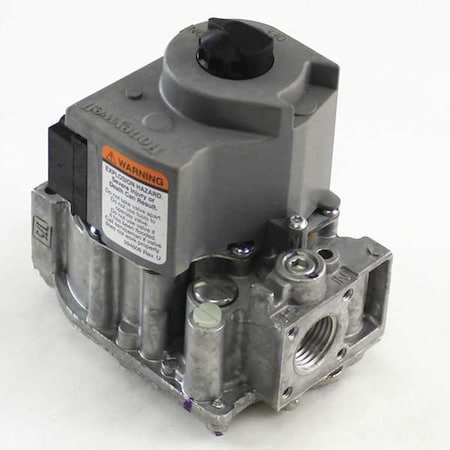

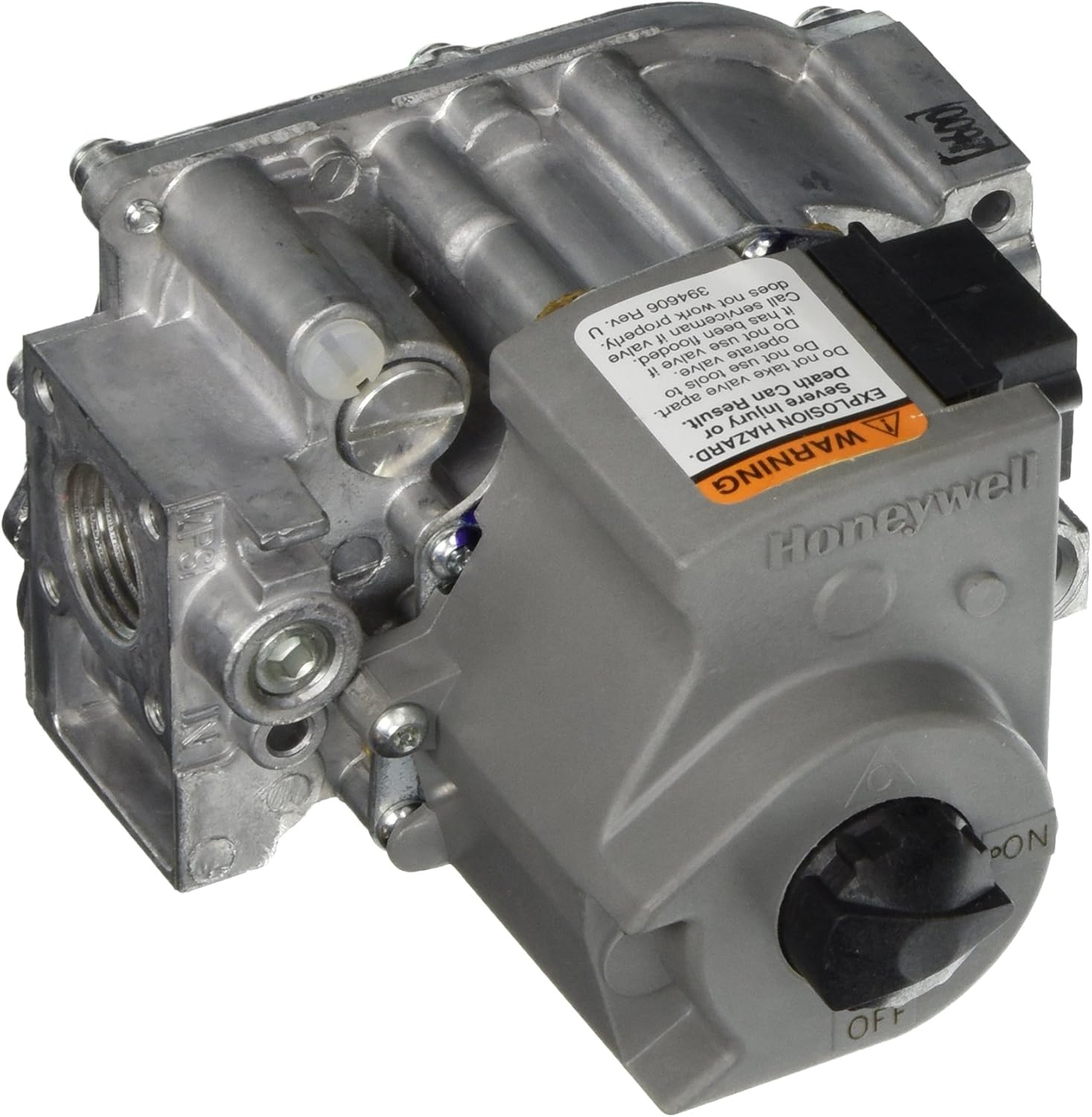

Honeywell VR8205A2024 Ignition Gas Valve Dual Direct 24 Volt 1/2 NPT

Product Description

The Honeywell VR8205A2024 Ignition Gas Valve is designed for use in hot surface or direct spark systems in gas-fired appliances. It operates at 24 volts and has a 1/2 inch NPT connection. This gas valve includes dual automatic valves and a pressure regulator to ensure optimal performance and safety.

• Manual valve, two automatic operators, and pressure regulator included
• Solenoid-operated first automatic valve opens on thermostat call for heat
• Diaphragm-operated second automatic valve works under regulator control

Product Highlights

Honeywell VR8205A2024 Ignition Gas Valve ensures your gas-fired appliances operate safely and efficiently with dual valves and a pressure regulator.

Product Information

Standard Information

• Brand: Honeywell
• Model: VR8205A
• MPN: VR8205A2024

Technical Specifications

• Weight: 2.10 pounds
• Valve Size: 1/2 inch
• Valve Connection: NPT
• Body Material: Iron Body
• Piping Configuration: Straight
• Max Pressure: 125 psi WOG
• Valve Application: Gas
• Voltage: 24V
