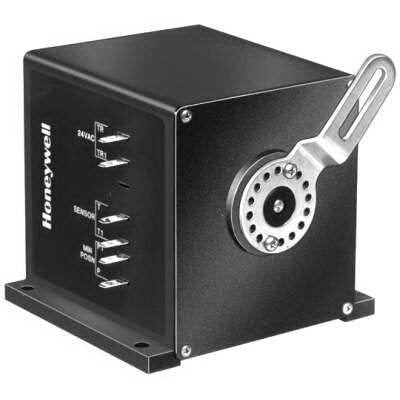

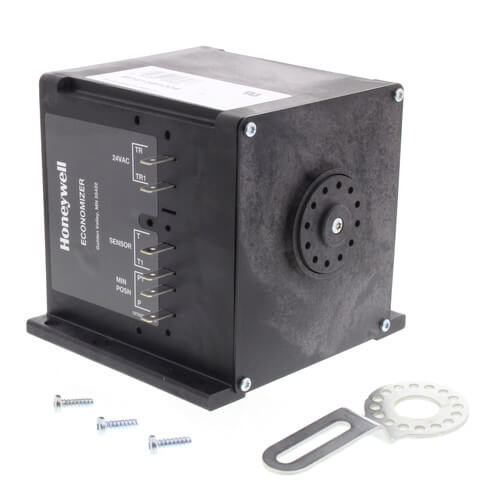

Honeywell M7415B1004 24 Volts Damper Actuator

Product Description

The Honeywell M7415B1004 is a damper actuator designed for HVAC systems. It uses a 24 Volt motor to modulate airflow through the system. The spring return feature ensures the actuator returns to its default position upon power loss.

• Provides two-position, three-position, or modulating control
• 24 Volt AC with spring return mechanism
• Suitable for commercial and industrial HVAC systems

Product Highlights

This actuator is ideal for modulating control of economizer systems, ventilation dampers, and combustion air dampers. It ensures efficient operation and reliability in critical HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M7415B1004

Technical Specifications

• Voltage: 24 Volts AC
• Torque: 25 inch-pounds
• Rotation: Clockwise
• Timing: 90 seconds
• Material: High impact, glass-fiber reinforced plastic
• Frequency: 50/60 Hertz
• Mounting: Foot Mount
• Operating Temperature: -25 to 125 degrees Fahrenheit
• Dimensions: 5 inches wide x 5-3/16 inches deep x 4-1/2 inches high
