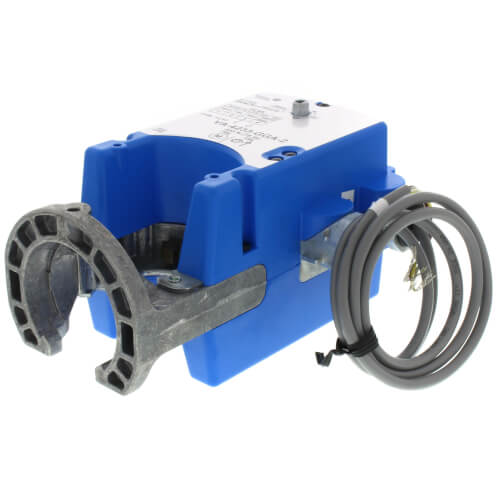

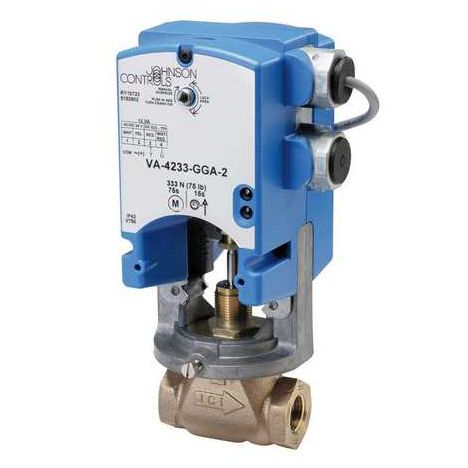

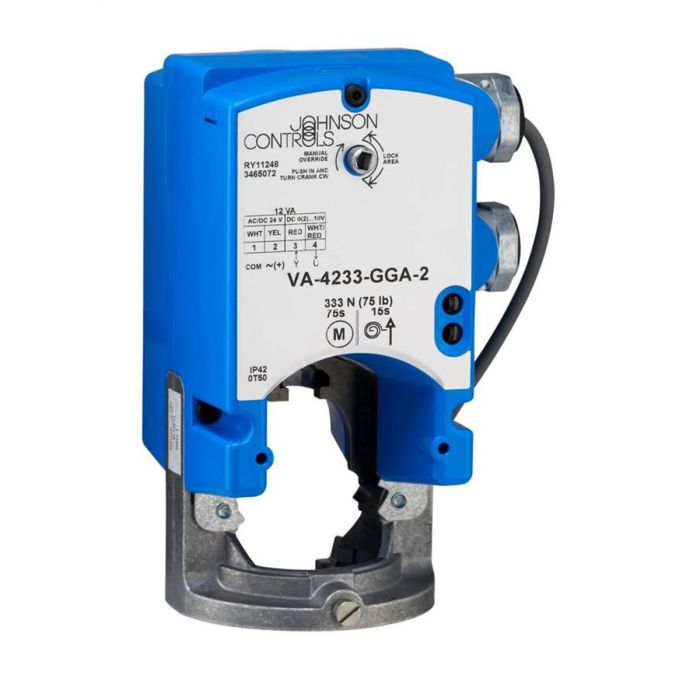

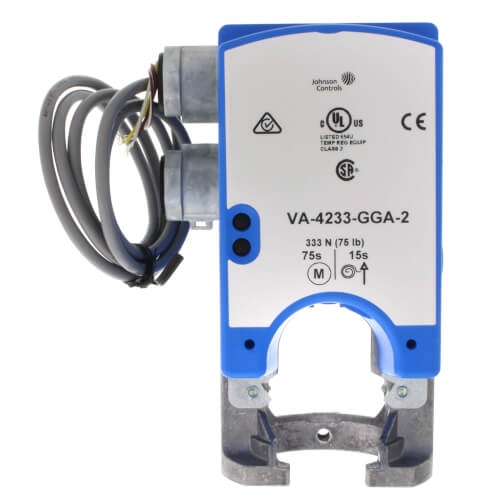

Johnson Controls VA-4233-GGA-2 Electric Actuator 24VAC 61 lb-in Spring Return

Product Description

The Johnson Controls VA-4233-GGA-2 electric actuator is designed for precision control of HVAC systems. This actuator utilizes a stepper motor to accurately position control valves. In case of a power failure, the spring return mechanism ensures the valve returns to the full stem-up position.

• 24V AC voltage
• 61 lb-in torque
• Spring return mechanism

Product Highlights

The Johnson Controls VA-4233-GGA-2 actuator is ideal for use in HVAC applications, providing reliable control with minimal maintenance. The built-in spring return ensures safety during power outages, and the direct-mount design allows for easy installation and compatibility with various valve types.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VA-4233-GGA-2

Technical Specifications

• Voltage: 24V AC
• Torque: 61 lb-in
• Type: Proportional
• Actuator Type: Spring Return
• Power Consumption: 12 VA
• Cycle Time: 76 sec
• Ambient Temp. Range: Up to 122 degrees Fahrenheit
• Height: 6 11/32 inches
• Width: 4 3/32 inches
• Depth: 3 19/32 inches
• Includes: Valve Linkage
