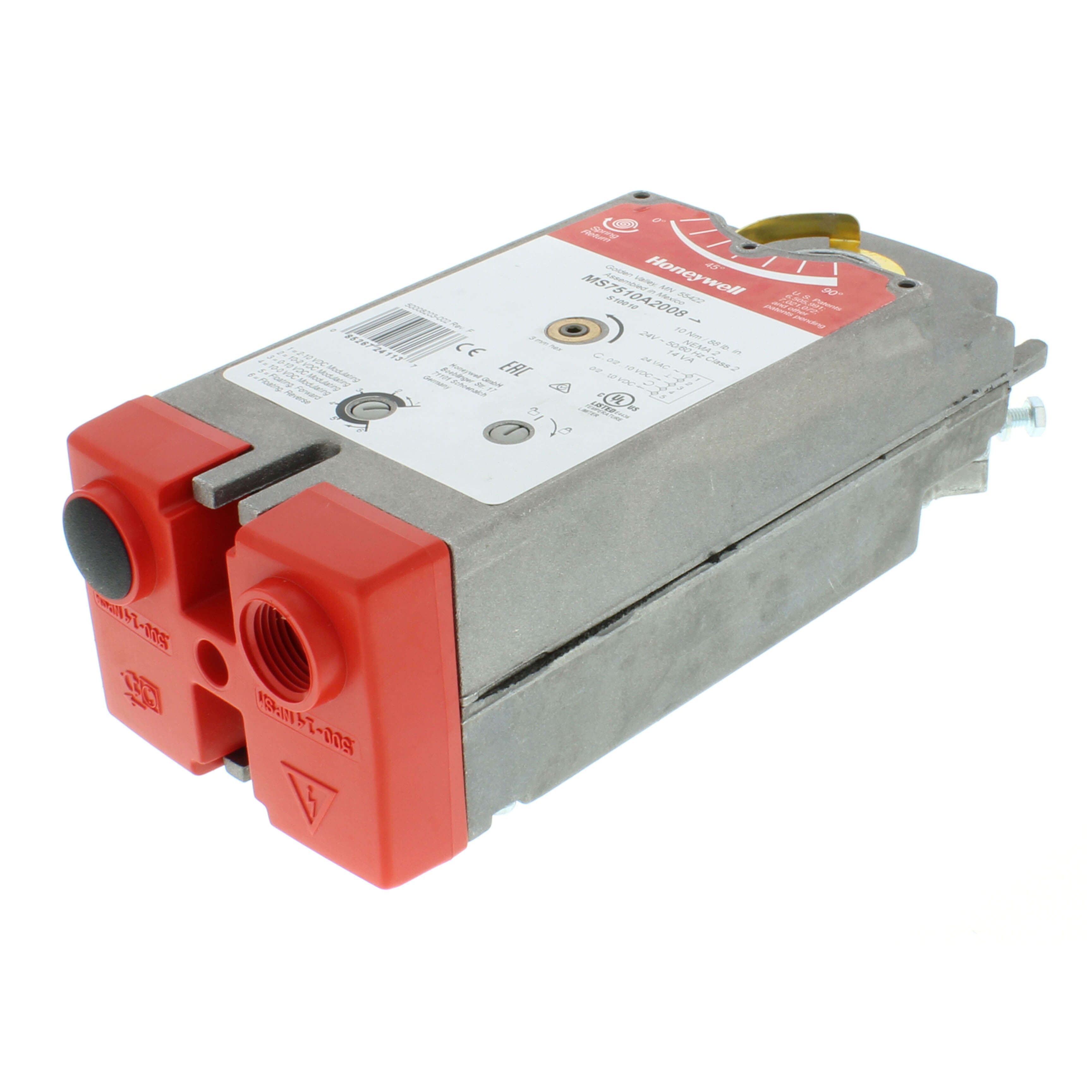

Honeywell MS7510A2008 Spring Return Direct Coupled Actuator 88 lb

Product Description

The Honeywell MS7510A2008 Spring Return Direct Coupled Actuator provides precise control for HVAC systems. Featuring an 88 lb-in torque, it is suitable for a variety of applications. This actuator is designed to ensure fail-safe operation with its spring return mechanism.

• 88 lb-in torque
• 24V modulating actuator
• Spring return feature

Product Highlights

Ideal for use in industrial environments, the Honeywell MS7510A2008 actuator ensures reliable operation and easy installation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS7510A2008
• Category: Actuator Blocks
• Manufacturer: Honeywell

Technical Specifications

• Torque: 88 lb-in
• Voltage: 24V AC/DC
• Control Signal: Floating, (0)2-10 VDC
• Actuator Type: Damper, Valve
• Fail Safe Mode: Spring Return
• Power Consumption: 14VA Driving, 5VA Holding
• Depth: 2.95 inches
• Width: 3.94 inches
• Height: 9.72 inches
• Ambient Temperature Range: -40°F to 140°F
