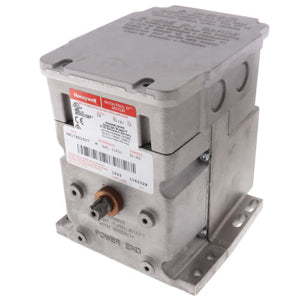

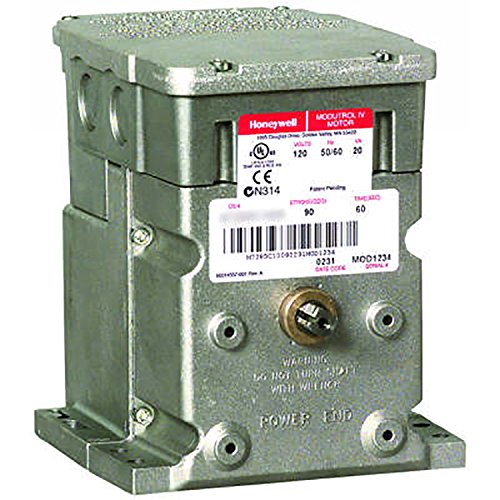

Honeywell M9174D1007 Modutrol IV Motor 24V 75 lb-in

Product Description

The Honeywell M9174D1007 is a 24 Volt proportional Modutrol IV motor designed for modulating control of dampers and valves. It features a torque rating of seventy-five inch-pounds. This motor operates on twenty-four Vac and is suitable for a variety of HVAC applications.

• Dimensions: Six and seven-sixteenths inches high, five and one-half inches wide, and seven and five-sixteenths inches deep.
• Integral junction box provides NEMA three weather protection for upright mounting.
• Field adjustable stroke range from ninety to one hundred sixty degrees.

Product Highlights

Designed for reliable performance in HVAC systems, the Honeywell M9174D1007 is suitable for professionals in air distribution.

Product Information

Standard Information

• Brand: Honeywell
• Model: M9174D

Technical Specifications

• MPN: M9174D1007
• Voltage Rating: 24 V
• Torque Rating: 75 inch-lb
• Dimensions: 6-7/16 inch H x 5-1/2 inch W x 7-5/16 inch D
• Temperature Rating: -40 to 140 degrees F
• Timing: 30 - 60 sec
• Weight: 8 lbs
