Product Description

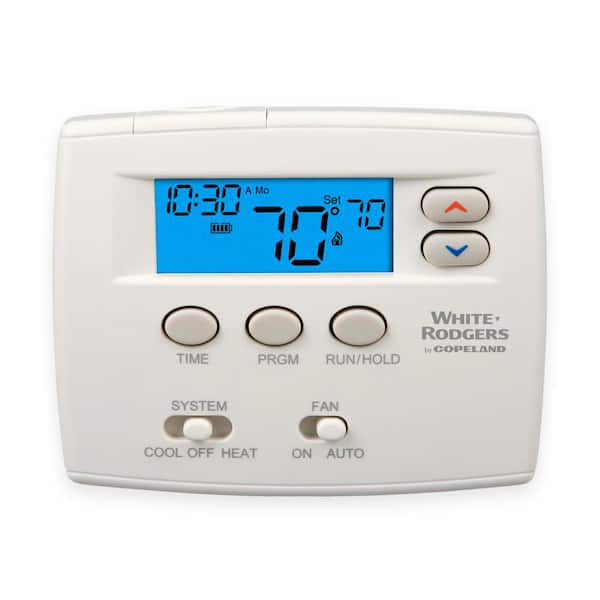

The WHITE-RODGERS 1F80-0261 is a thermostat with 5-1-1 day programmable type, designed for 1-heat/1-cool 1-stage/heat pump systems. It operates from millivolt to 30 Volt AC (battery), or 24 Volt AC 50/60 Hertz (hardwire). Suitable for gas, oil, millivolt compatible, and electric systems.
- Easy Set Models Feature Simple Home Sleep Away Preset Buttons
- Programmable, 5/1/1 Day, 24 Hour, 0 Day or Non-Programmable
- Gas, Oil, Electric, Millivolt
Product Highlights
This thermostat features simple home sleep away preset buttons, and saves energy during peak air conditioner demand periods. It has a lighted display for easier low light viewing.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 1F80-0261
-
Country of Origin: CN
Technical Specifications
-
Type: 5-1-1 Programmable, 1-Heat/1-Cool 1-Stage/Heat Pump
-
Voltage Rating: 20 to 30 VAC
-
Current Rating: 0.05 to 1.5 Amp (Load Terminal)
-
Temperature Rating: 32 to 105 Deg F
-
Size: 4.8 Inch Width x 1.5 Inch Depth x 3.8 Inch Height
-
Display Size: 2 Square Inch
-
Set Point Temperature Rating: 45 to 90 Deg F
-
Display Temperature: 32 to 99 Deg F
-
Terminal Designation: R, C, Y, W, G, O/B
-
Humidity Rating: 90 Percent (Non-Condensing)
-
Application: Gas, Oil, Millivolt Compatible, Electric System
-
Mounting: Horizontal
-
Program Options: 5+1+1 Day
-
Control Range: 45 to 90 deg F
-
Power Source: Battery/Hardwired
-
Thermostat Type: Digital, Programmable
-
System Switching: Cool/Off/Heat
-
Programs per Week: 5-1-1 Days
-
Dimensions: 4-3/4 in W x 1-1/2 in D x 3-3/4 in H
-
Item Number: 1F80-0261
-
Brand: WHITE-RODGERS
-
Terminal Load: 1.0 A per terminal, 1.5A maximum all terminals combined
-
Setpoint Temperature Range: 45 to 90°F (7 to 32°C)
-
Anticipation, Heating: Adjustable
-
Anticipation, Cooling: Fixed
-
Rated Differential, Heat: 0.6° or 1.2°F
-
Rated Differential, Cool: 1.2°F
-
Operating Ambient Temperature Range: 32 to 105°F (0 to 44°C)
-
Operating Humidity Range: 0-90% RH non-condensing Shipping Temperature Range: -40 to +150°F (-40 to +65°C)
