White-Rodgers 1F97-1277 Blue Thermostat, Digital, Programmable/Non-Programmable 45 to 99 deg F Control

Product Description

The White-Rodgers 1F97-1277 Blue Thermostat is a digital, programmable/non-programmable thermostat with a control range of 45 to 99 deg F. It features heat/cool/off system switching and auto fan switching. The thermostat supports 2 stages, 1 stage heat, and 1 stage cool, with 7 or 5-1-1 days programs per week. It operates on 20 to 30 VAC and can be powered by battery or hardwire.

• Offers heat/cool/off system switching.
• Features a 12 sq-in lighted touchscreen display.
• Supports 7 or 5-1-1 days programs per week.

Product Highlights

This digital thermostat is designed for ease of use and versatile application in controlling your home or business's climate.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 1F97-1277
• Country of Origin: CN

Technical Specifications

• Stages Cool: 1
• Stages Heat: 1
• Display Type: 12 sq-in Lighted Touchscreen
• Power Source: Battery/Hardwired
• Control Range: 45 to 99 deg F
• Fan Switching: Auto
• Voltage Rating: 20 to 30 VAC
• Thermostat Type: Digital, Programmable/Non-Programmable
• Number of Stages: 2
• System Switching: Heat/Cool/Off
• Programs per Week: 7 or 5-1-1 Days

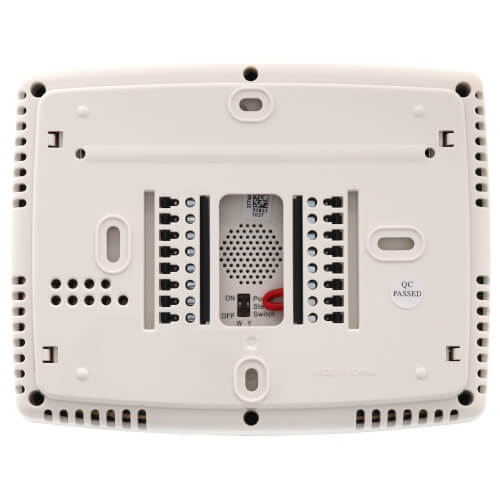

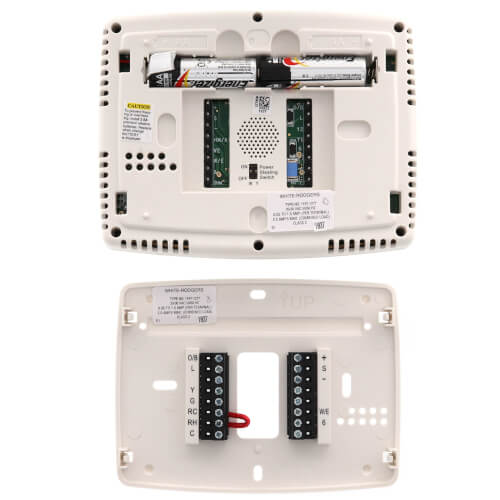

• Terminal Designations: RC, RH, C, W/E, Y, O/B, G, L, 6, +, S, -
• Stages Heat/Cool: 2/1 Heat Pump; 1/1 Gas
• System Application: Heat/Cool/Heat Pump
• Touchscreen: Yes
• Series-Brand: 90 Series Blue
• Application: 1H/1C, 2H/1C Heat Pump
• Programmability: 7/5-1-1 Day
• Temperature Range: 45-99 Deg
• Voltage: Low voltage, 24V
• Height: 4-3/5"
• Width: 5-9/10"
• Depth (Inches): 1-1/5"
• Humidity Control: Yes
• Wireless: No
• Options: Large Display, Password Lockout, Works with Sensor, Fan Control, Auto Changeover
• Changeover: Auto
• Temperature Range (F): 45°F - 99°F
