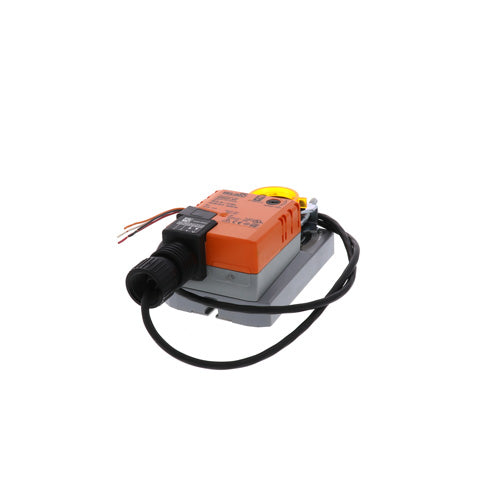

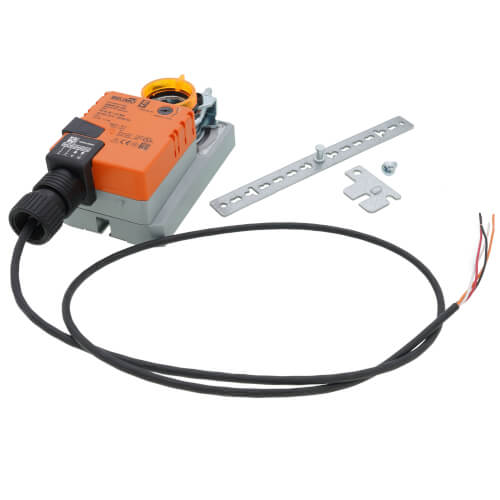

Belimo NMB24-SR Direct Coupled Actuator 90 in-lb

Product Description

The Belimo NMB24-SR is a direct coupled actuator with a torque of ninety in-lbs. It operates on twenty-four volts alternating current and is suitable for use in HVAC systems requiring proportional modulation. This actuator is designed to handle control signals ranging from two to ten volts direct current or four to twenty milliamps.

• Brushless DC motor for enhanced control and efficiency.
• Dual range control capability.
• Compatible with various damper sizes and configurations.

Product Highlights

This actuator is easy to install and requires minimal maintenance.

Product Information

Standard Information

• Brand: Belimo
• MPN: NMB24-SR

Technical Specifications

• Torque: 90 lb-in
• Power Supply: 24 VAC/DC
• Power Consumption: 2.5 W running, 0.4 W holding
• Weight: 2.09 lbs
• Dimensions: 11.2 inches (L) x 5.8 inches (W) x 3.6 inches (H)
• Operating Conditions: -22°F to 122°F
• Control Input: 2 to 10 VDC, 4 to 20 mA
• Electrical Connection: 3 ft, Plenum Rated Cable with 1/2 in Conduit Connector
