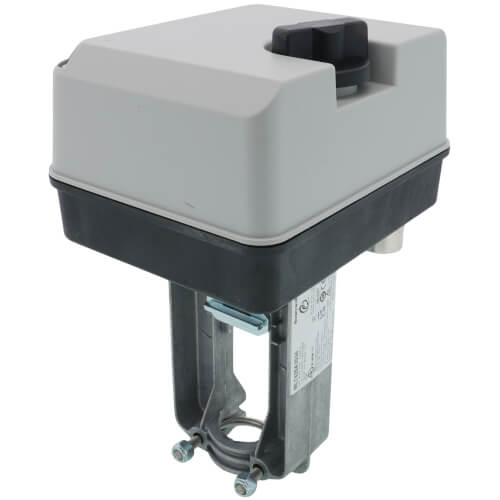

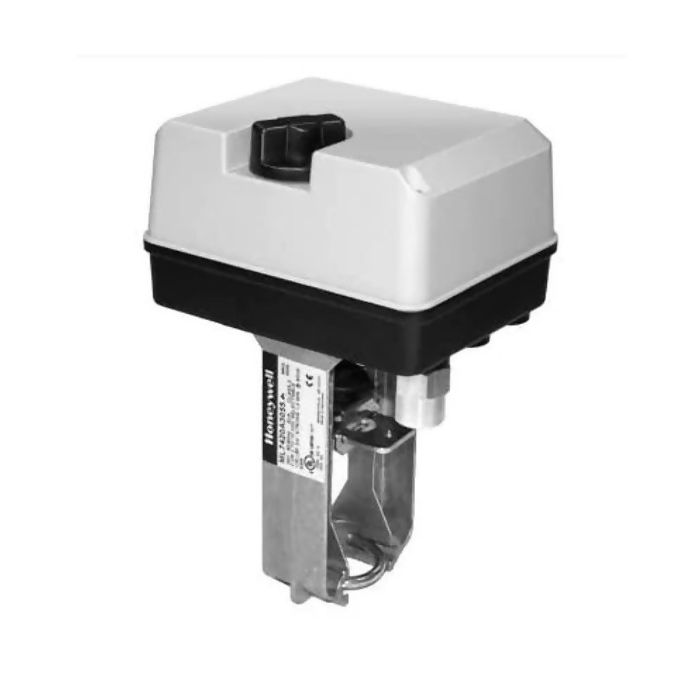

Honeywell ML7420A3055 Direct Coupled Actuator 135 lbf

Product Description

The Honeywell ML7420A3055 is a direct coupled actuator designed for precise control in HVAC applications. This actuator operates with a maximum force of one hundred thirty-five lbf and features a non-spring return design. The actuator is powered by twenty-four volts AC and is equipped to handle control signals from zero to ten VDC, making it suitable for various building automation systems.

• Quick installation with no additional linkage required
• Force limiting end switches for safety
• Maintenance-free design for long-lasting performance

Product Highlights

This Honeywell actuator is ideal for use with standard valves in heating, ventilation, and air conditioning systems. Its compact design allows for easy integration into tight spaces, ensuring accurate valve positioning without the need for limit switches.

Product Information

Standard Information

• Brand: Honeywell
• MPN: ML7420A3055

Technical Specifications

• Torque Rating: 135 lbf
• Power Supply: 24 VAC
• Operation Temperature: 14 F to 122 F
• Stroke Length: 0.75 inches
• Weight: 2.9 lbs
• Dimensions: 9.5625 inches high x 5.3125 inches wide x 6.3125 inches deep
• Control Signal: 0-10 VDC
• Model: Linear-Stroke Valve Actuator
