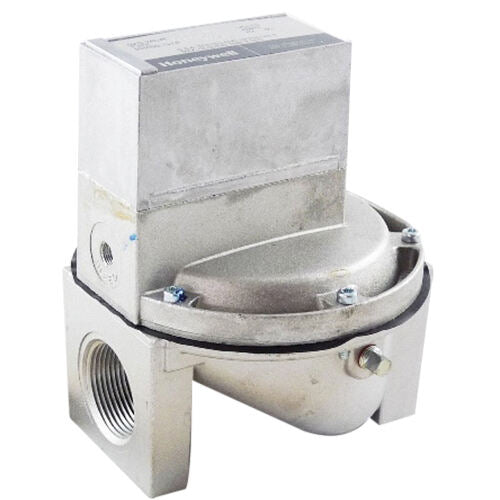

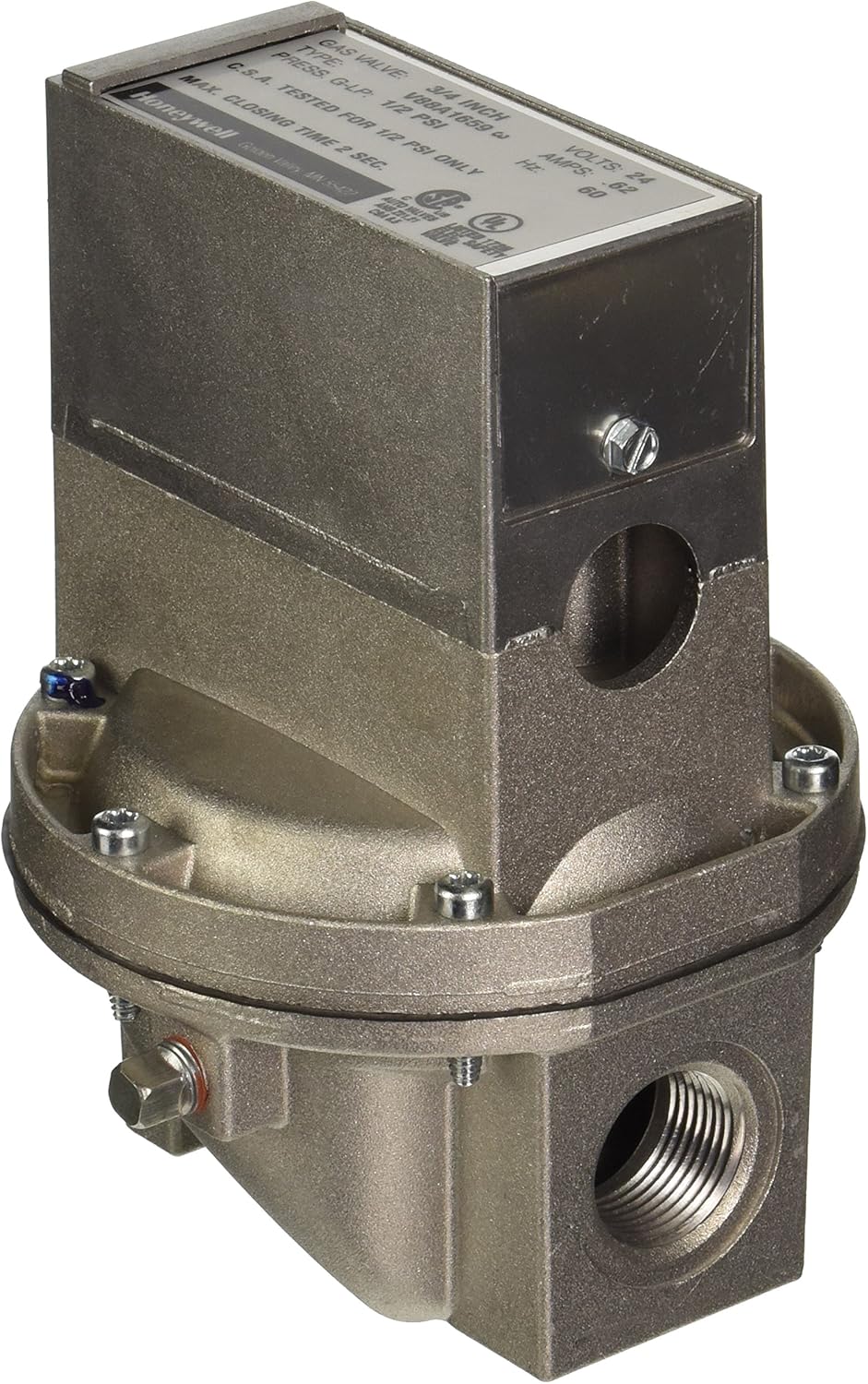

Honeywell V88A1618 Diaphragm Gas Valve 24 Vac 1 NPT 0.5 psi

Product Description

The Honeywell V88A1618 Diaphragm Gas Valve is a dependable solution for controlling natural, LP, or manufactured gas flow in atmospheric boilers, commercial water heaters, and rooftop heaters. This normally closed valve operates at 24 VAC to provide slow opening and fast closing, ensuring efficient and safe performance in various heating applications.

• 1 NPT pipe size
• 0.5 psi pressure rating
• 1021 CFH capacity

Product Highlights

This valve uses a solenoid operator and features a cast aluminum body, making it robust and long-lasting. The valve closes firmly with a weight and spring-loaded diaphragm and has a maximum closing time of two seconds. Its upright or horizontal mounting options make it versatile for different installations.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V88A1618

Technical Specifications

• Voltage: 24 VAC
• Pressure Rating: 0.5 psi
• Capacity: 1021 CFH
• Body Material: Cast Aluminum
• Inlet Connection: 1 NPT
• Outlet Connection: 1 NPT
• Temperature Range: 32 degrees F to 125 degrees F
• Mounting Type: Upright or Horizontal
