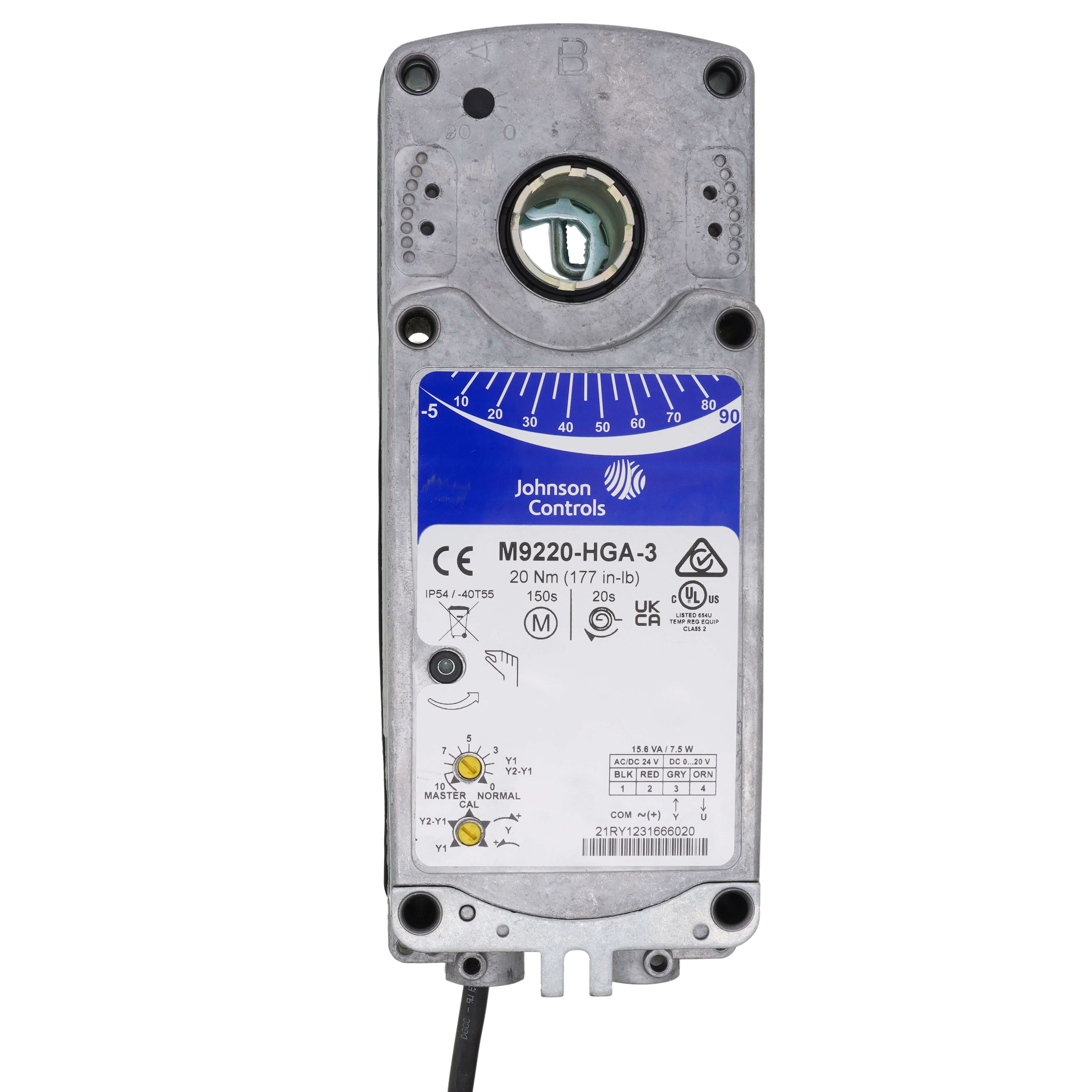

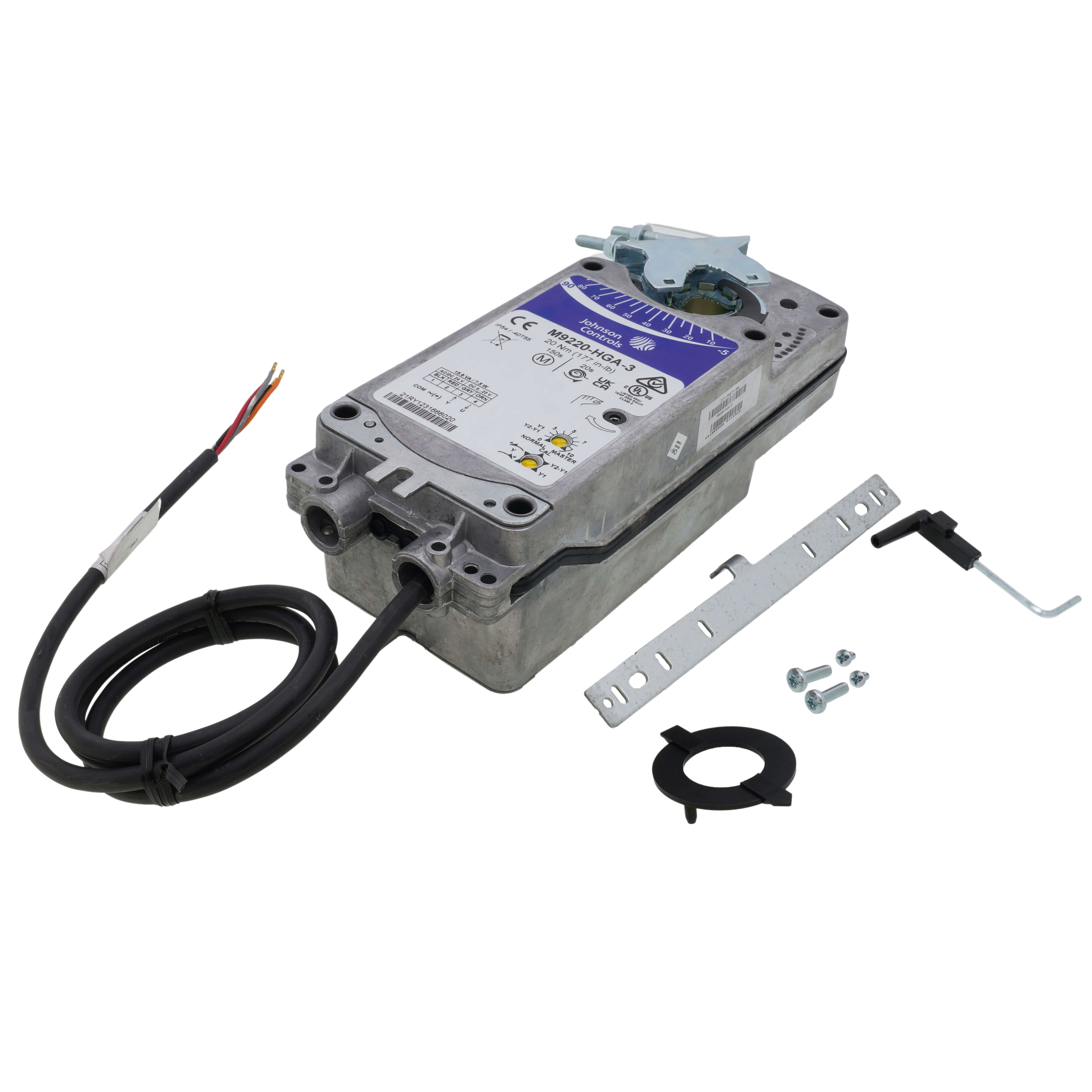

Johnson Controls M9220-HGA-3 Direct Coupled, 177 lb-in. Spring Return

Product Description

The Johnson Controls M9220-HGA-3 is a direct coupled spring return actuator designed for HVAC applications. It operates at 24 VAC at 50/60 Hz with a power consumption of 25 VA. The actuator offers proportional control with adjustable zero and span settings. It features reversible mounting, ensuring easy installation and flexibility in operation.

• Running torque: 177 lb-in
• Fail safe mode: spring return
• Electrical connection: 48 in. 18 AWG wire leads with integral connectors

Product Highlights

This actuator enhances the performance and reliability of HVAC systems, providing precise control over dampers and valves.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: M9220-HGA-3

Technical Specifications

• Operating Conditions: -40 F to 131 F (-40 C to 55 C)
• Power Consumption: 15.5 VA running, 7.7 VA holding position
• Housing: NEMA 2, IP54
• Size: Length 17 inches, Width 6.5 inches, Height 3.5 inches
• Weight: 6 pounds
