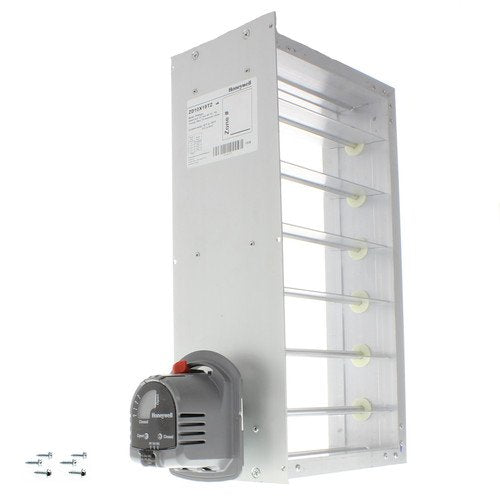

Honeywell ZD8X16TZ TrueZONE Zone Damper 24V 8 x 16 Inch

Product Description

The Honeywell ZD8X16TZ TrueZONE Zone Damper is designed for controlling air flow in HVAC systems. This rectangular damper is 8 x 16 inches and features a 24-volt motor for reliable operation. Suitable for applications needing a normally-open damper.

• Reliable spring-return motor
• Low leakage parallel blade design
• Extruded aluminum frame and blades

Product Highlights

The Honeywell ZD8X16TZ features a robust 24V motor with spring-return for fail-safe, normally-open operations. Designed for easy installation with a simple, two-wire configuration, it offers quiet operation due to fewer blades and solid construction. Compatible with TrueZONE and other electronic zoning systems, it can be mounted on the side or bottom of the duct.

Product Information

Standard Information

• Brand: Honeywell
• MPN: ZD8X16TZ
• Size: 8 x 16 Inch
• Type: Blade
• Shape: Rectangular

Technical Specifications

• Voltage Rating: 24V
• Rotation Angle: 90 degrees
• Temperature Rating: 40 - 140 degrees Fahrenheit
• Material: Aluminum
• Motor Type: Power Closed, Spring Open
• Blade Action: Parallel
• Electrical Connection: 2-Wire
• Application: Controlling Circulating Air in HVAC System
