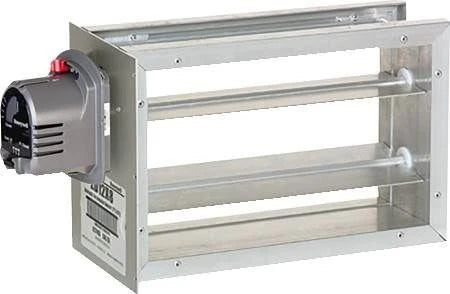

Honeywell ZD16X8TZ Zone Control Damper 16 x 8 Inch 24V

Product Description

The Honeywell ZD16X8TZ Zone Control Damper is designed for controlling the circulation of air in HVAC systems. This Honeywell damper measures 16 x 8 inches and features a 24V power closed spring open motor. The ZD16X8TZ is suitable for use with the TrueZONE and other electronic zoning systems.

• Easy two-wire installation
• Parallel blade design for low leakage
• Aluminum frame and blades

Product Highlights

The Honeywell ZD16X8TZ is a reliable and efficient zone control damper used in HVAC systems. It has a parallel blade design and durable aluminum construction. The damper is easy to install and operate, offering a fail-safe, normally open operation for better performance.

Product Information

Standard Information

• Brand: Honeywell
• MPN: ZD16X8TZ

Technical Specifications

• Size: 16 x 8 inches
• Material: Aluminum
• Voltage Rating: 24V
• Motor Type: Power closed, spring open
• Blade Action: Parallel
• Rotation Angle: 90 degrees
• Temperature Rating: 40 - 140 degrees Fahrenheit
• Electrical Connection: 2-Wire
