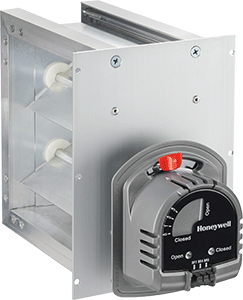

Honeywell ZD10X18TZ Zone Damper 24V 10 x 18

Product Description

The Honeywell ZD10X18TZ Zone Damper is a 24-volt damper designed to control air distribution in HVAC systems. Suitable for use with TrueZONE and other electronic zoning systems, this damper is constructed with an extruded aluminum frame and blades. It features a parallel blade design for efficient performance.

• Kevlar gearing reduces wear for extended durability
• Mechanical visual position indicator for easy status check
• Simple two-wire installation

Product Highlights

The ZD10X18TZ Zone Damper by Honeywell offers reliable performance with a spring-return motor and a normally open operation. This damper ensures low leakage and quiet operation, making it ideal for use in residential and commercial HVAC systems.

Product Information

Standard Information

• Application: Air Quality
• Vendor: Honeywell
• Material: Aluminum

Technical Specifications

• MPN: ZD10X18TZ
• Size: 10 x 18 inches
• Power: 24V
• Operation: Normally open
• Construction: Extruded aluminum frame and blades
• Design: Parallel blade
• Motor Type: Spring-return
• Display: Mechanical visual position indicator
