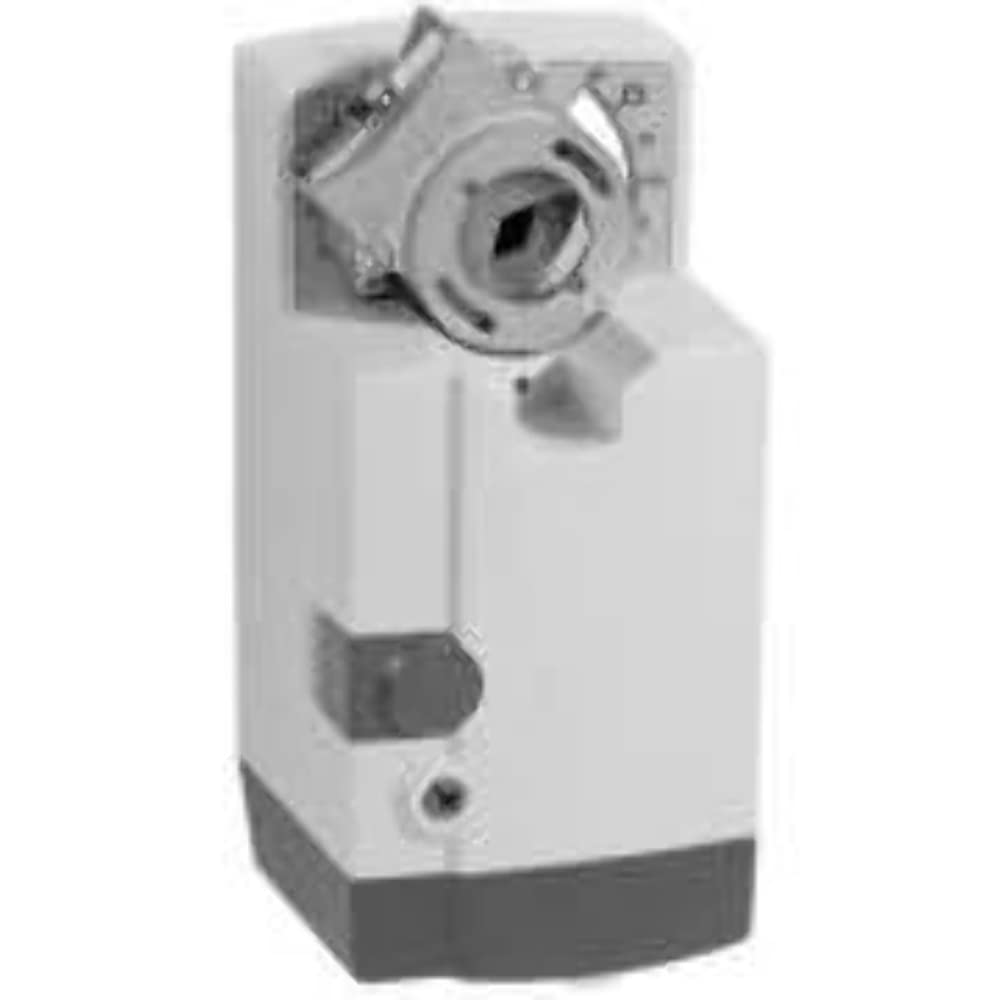

Honeywell MN6134A1003 Damper Actuator Non-Spring Return Floating 24 VAC 300 lb-in 95 s
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
Product Description
The Honeywell MN6134A1003 Damper Actuator is designed for HVAC applications. This actuator offers precise control with non-spring return floating operation. It operates at 24 VAC and delivers a torque of 300 lb-in, making it suitable for demanding environments.
- Non-spring return floating control
- Operates at 24 VAC
- 300 lb-in torque
Product Highlights
The Honeywell MN6134A1003 Damper Actuator provides robust performance for various industrial and commercial HVAC systems. It features a self-centering clamping shaft adapter and a declutch mechanism for manual operation.
Product Information
Standard Information
- Application: HVAC Applications
- Material: Plastic
- Includes: Mounting Bracket, Self-Centering Shaft Adapter
- Dimensions: 3.62 in W x 3.15 in D x 8.78 in H
- Type: 2-Position Non-Spring Return Floating
- Mounting Type: Direct Coupled
- Torque Rating: 300 lb-in
- Voltage Rating: 24 VAC
Technical Specifications
- Motor Timing: 95 s
- Frequency: 50/60 Hz
- Control Signal: Floating, SPDT, ON/OFF
- Additional Torque Ratings: Maximum stall - 327 lb-in
- Electrical Connections: 22 to 14 AWG enclosed screw terminal strip
- Operating Humidity: 5 to 95% RH, non-condensing
- Power Consumption: 9 VA
- Environmental Rating: NEMA 2
