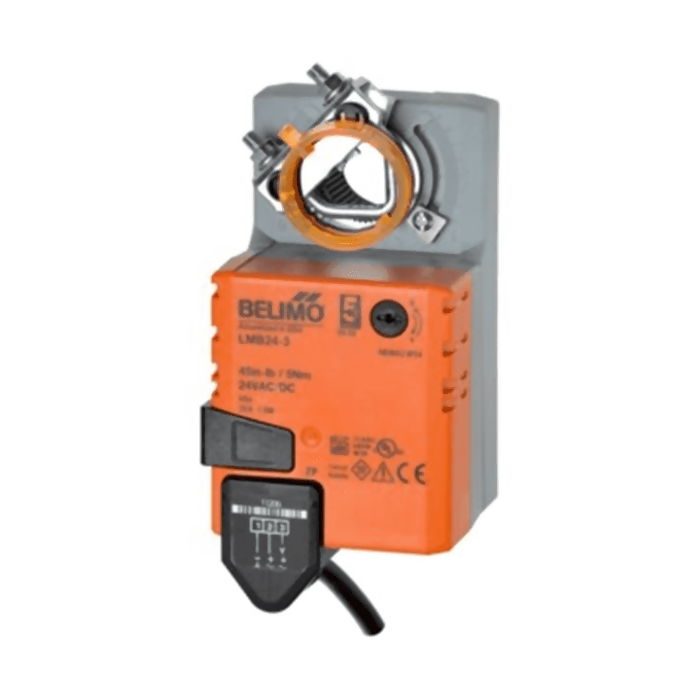

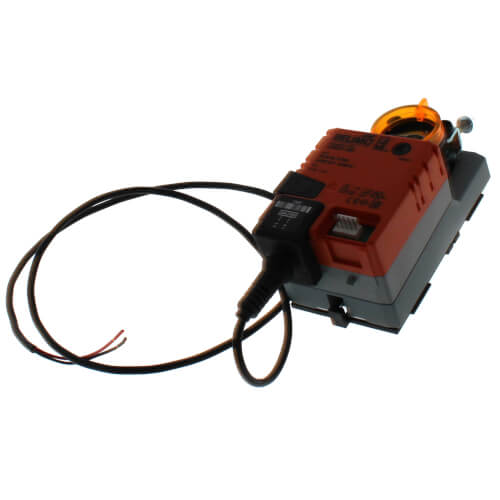

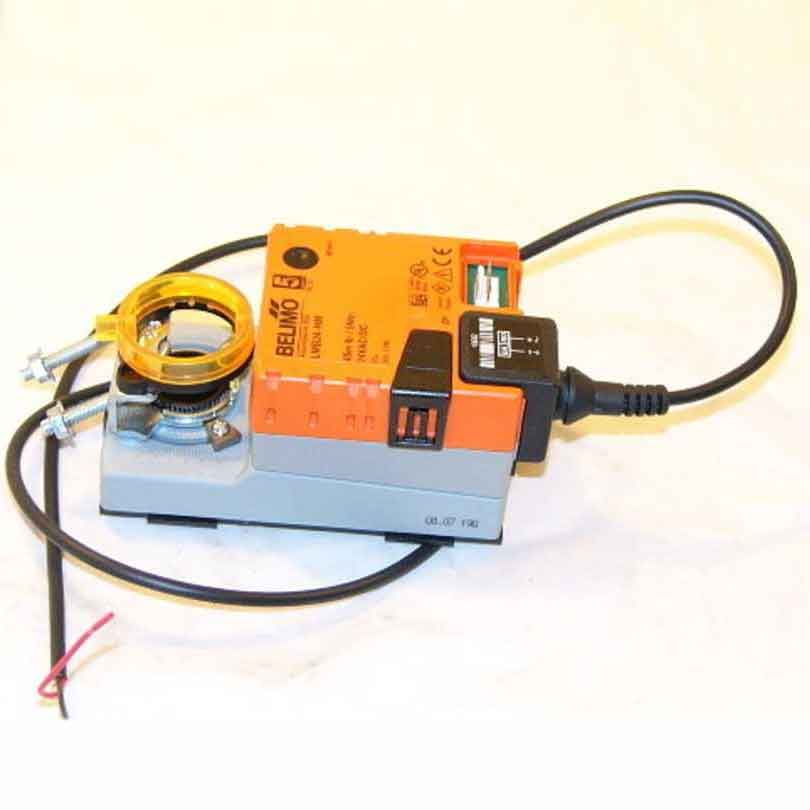

Belimo LMB24-HM Direct Coupled Actuator 45 in-lb Non-Spring Return 24V

Product Description

The Belimo LMB24-HM is a direct coupled actuator designed for various HVAC applications. This actuator provides forty-five inch-pounds of torque and operates using a twenty-four volt AC or DC power supply. It is specifically intended for retrofitting Belimo LM24-M and LM24-10P-M actuators, making it ideal for OEM variable air volume controllers that have reached the end of their service life. The installation process requires no alterations to the existing system and connects easily with a compatible five-pin Molex connector.

• Compact size with simple mounting using a universal clamp
• Designed for efficient energy consumption in holding mode
• Utilizes advanced brushless Halomo motor technology for reliable performance

Product Highlights

This actuator features an automatic stopping mechanism at end positions, which signals the VAV controller to ensure precise control.

Product Information

Standard Information

• Brand: Belimo
• MPN: LMB24-HM

Technical Specifications

• Actuator Type: Non fail-safe
• Power Consumption: 1.5 W running, 0.2 W holding
• Operating Conditions: -22°F to 122°F
• Electrical Connection: 5 Pin Male Molex Connector
• Angle of Rotation: 95 degrees
• Degree of Protection: IP20, NEMA 1
• Max Torque: 45 in-lb (5 Nm)
• Voltage: 24 VAC/DC
