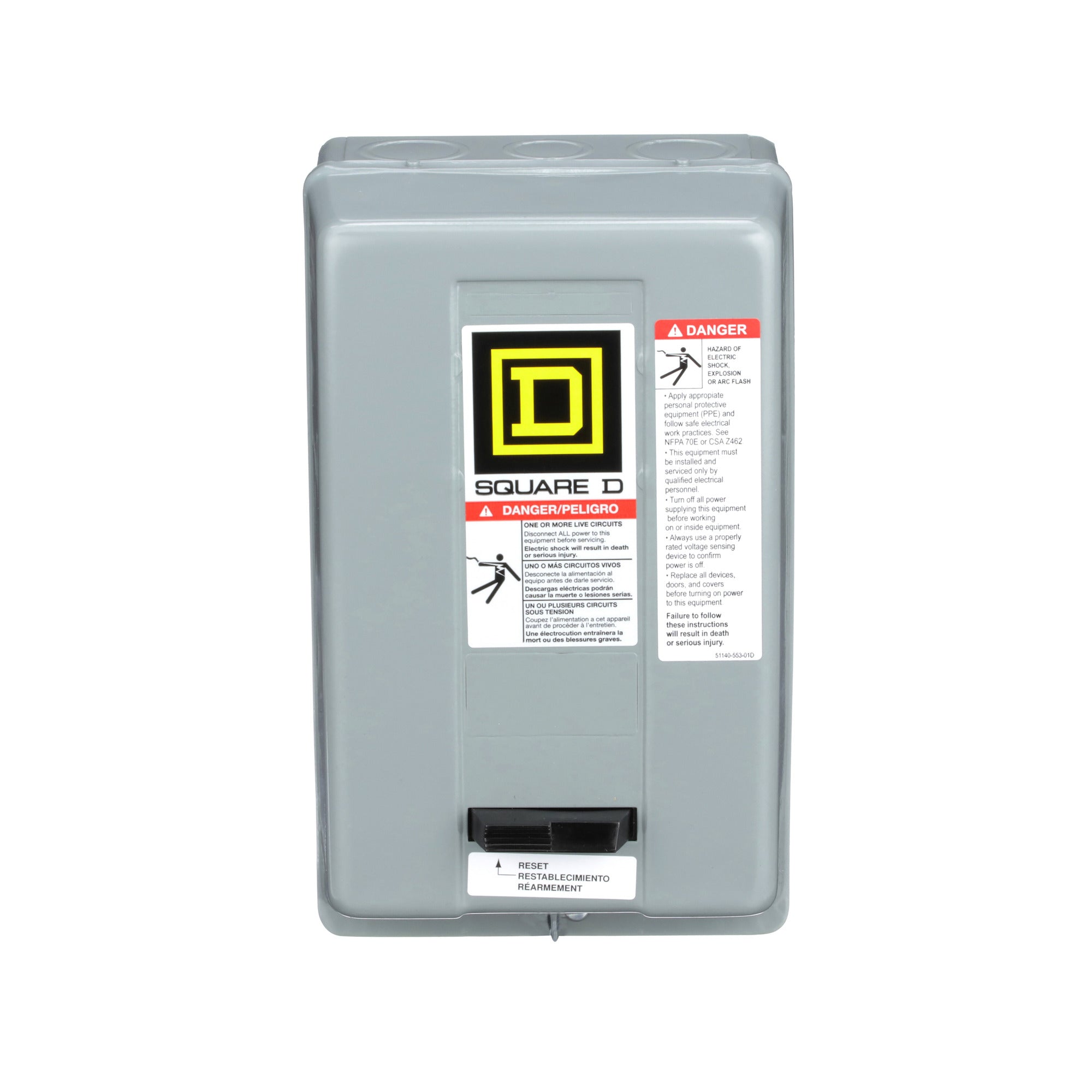

Square D 8536SBG2V01S Motor Starter 24VAC Coil 3 Phase NEMA Size 0

Product Description

Square D's 8536SBG2V01S motor starter is designed for efficient full-voltage starting and stopping of AC squirrel cage motors. With a compact structure and reliable performance, this NEMA Size 0, 3-pole motor starter is suitable for many industrial applications, including material handling and conveyor systems.

• 18 Ampere rating, 3 Phase, 5 HP at 460 VAC.
• Equipped with a melting alloy type overload relay.
• UL Listed and CSA Certified, ensuring high standards of safety and reliability.

Product Highlights

This non-reversing motor starter features a 24 VAC, 60 Hz operating coil and comes enclosed in a robust painted sheet steel NEMA 1 casing to prevent ingress of dust and other particulates. Its design accommodates a wide range of motor ratings with replaceable coils available for various voltage requirements.

Product Information

Standard Information

• Brand: Square D
• MPN: 8536SBG2V01S

Technical Specifications

• Current: 18 Amp
• Voltage: 600 Volt
• reset_type:
• reset_type: current protection
