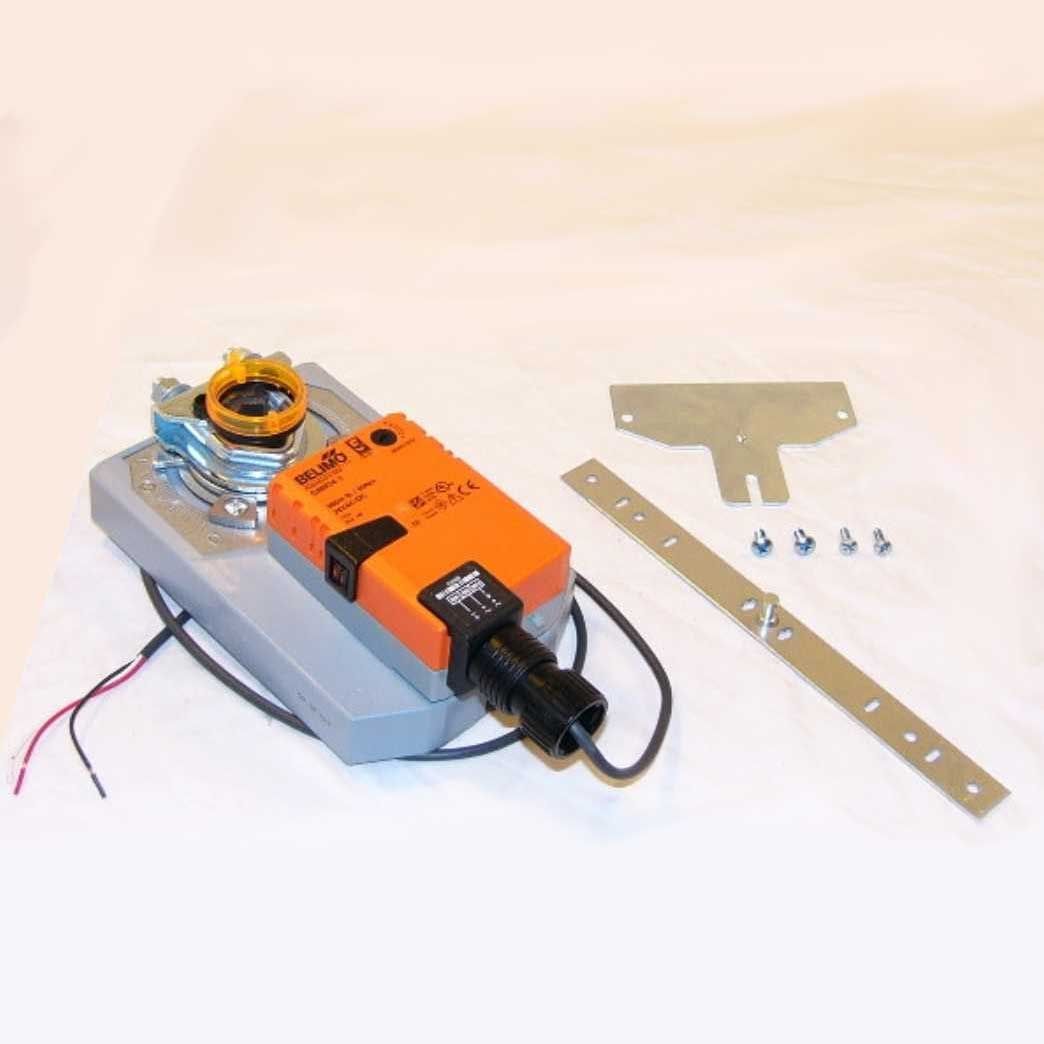

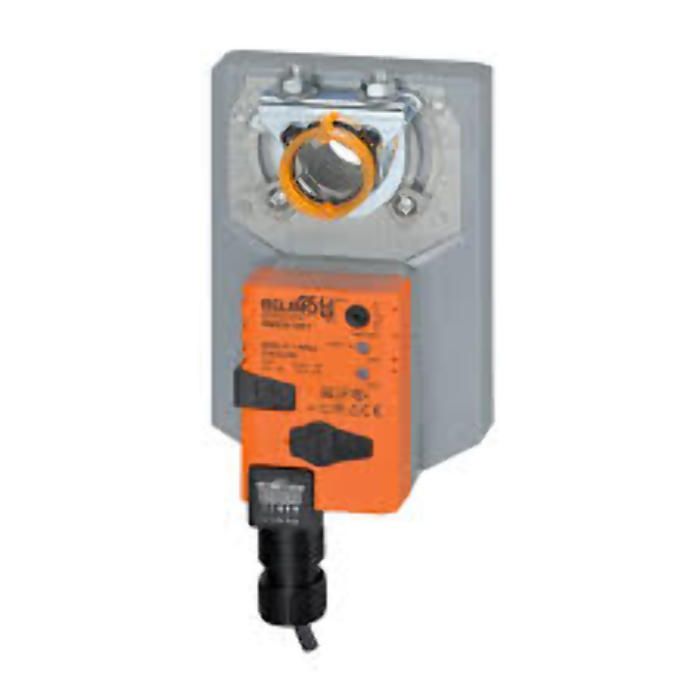

Belimo GMB24-3 Direct Coupled Actuator 360 in-lb Non-Spring Return

Product Description

The Belimo GMB24-3 is a direct coupled actuator designed for on/off and floating point control of dampers in HVAC systems. It features a torque rating of 360 inch-pounds and operates on 24 VAC power. The actuator is electronically protected against overload and includes an anti-rotation strap to prevent lateral movement.

• Brushless DC motor for precise operation
• Easy installation with universal clamp
• Power consumption of four watts while running and two watts in holding mode

Product Highlights

This actuator is ideal for HVAC applications requiring reliable performance and energy efficiency. Its compact design makes it suitable for tight installation spaces.

Product Information

Standard Information

• Brand: Belimo
• MPN: GMB24-3

Technical Specifications

• Torque: 360 inch-pounds
• Voltage: 24 VAC/DC
• Angle of Rotation: 95 degrees
• Power Consumption (Running): 4 watts
• Power Consumption (Holding): 2 watts
• Operating Conditions: -22°F to 122°F
• Electrical Connection: Cable with conduit connector
• Size: 5.9 inches x 11.15 inches x 3.6 inches
