Product Description

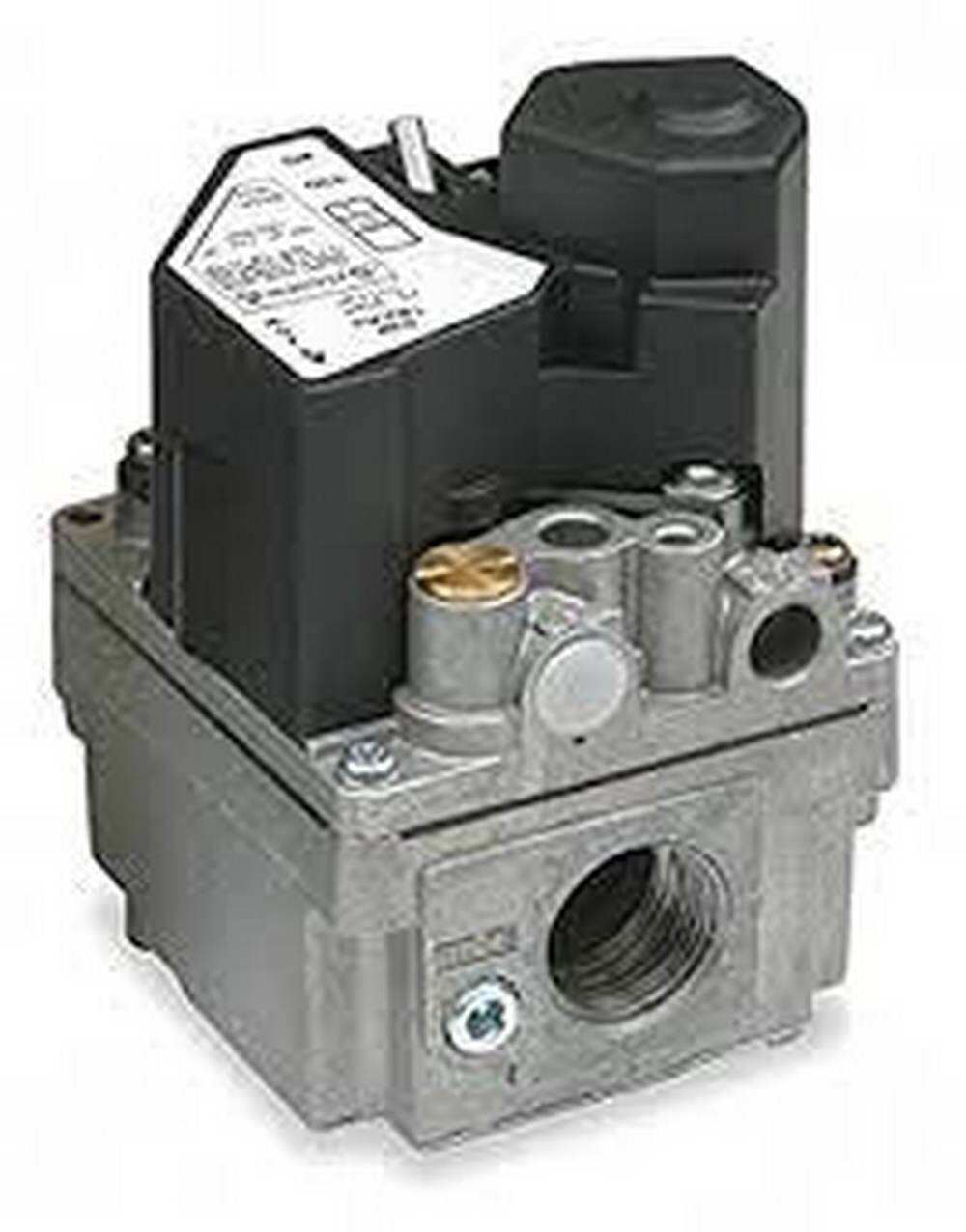

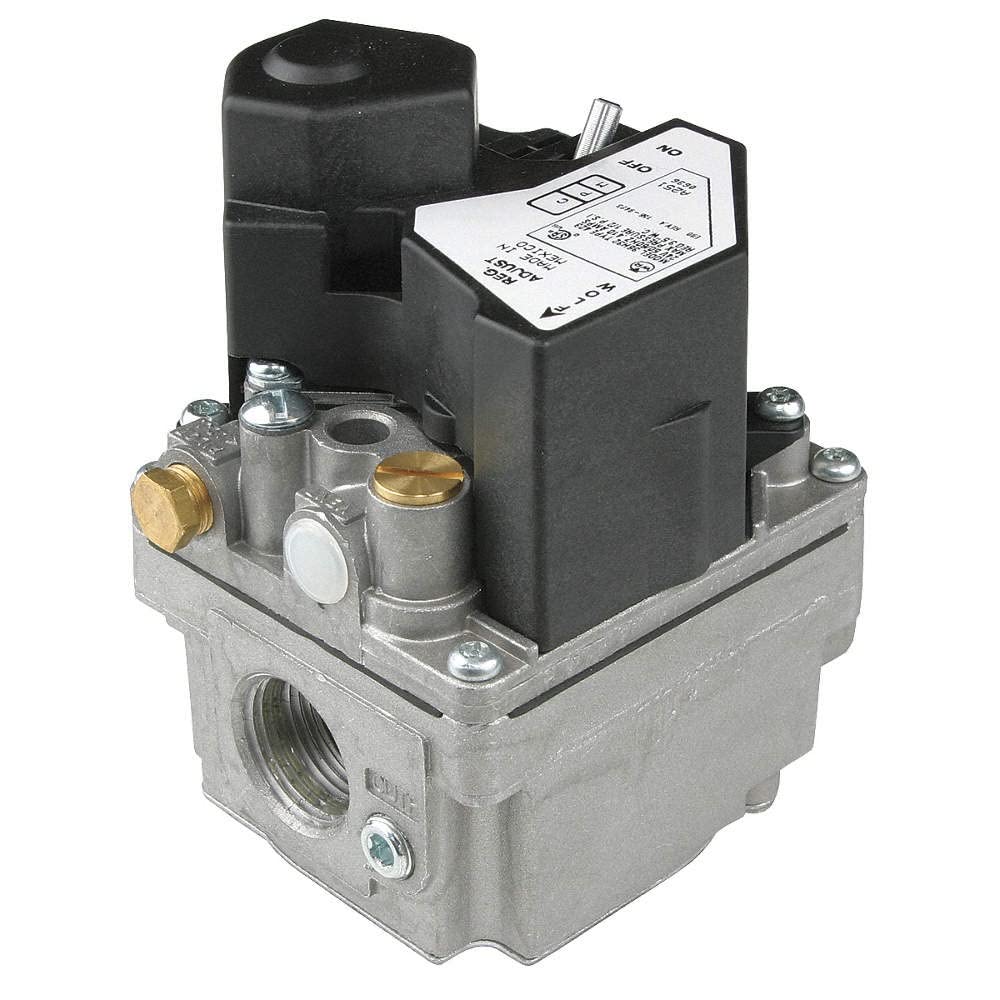

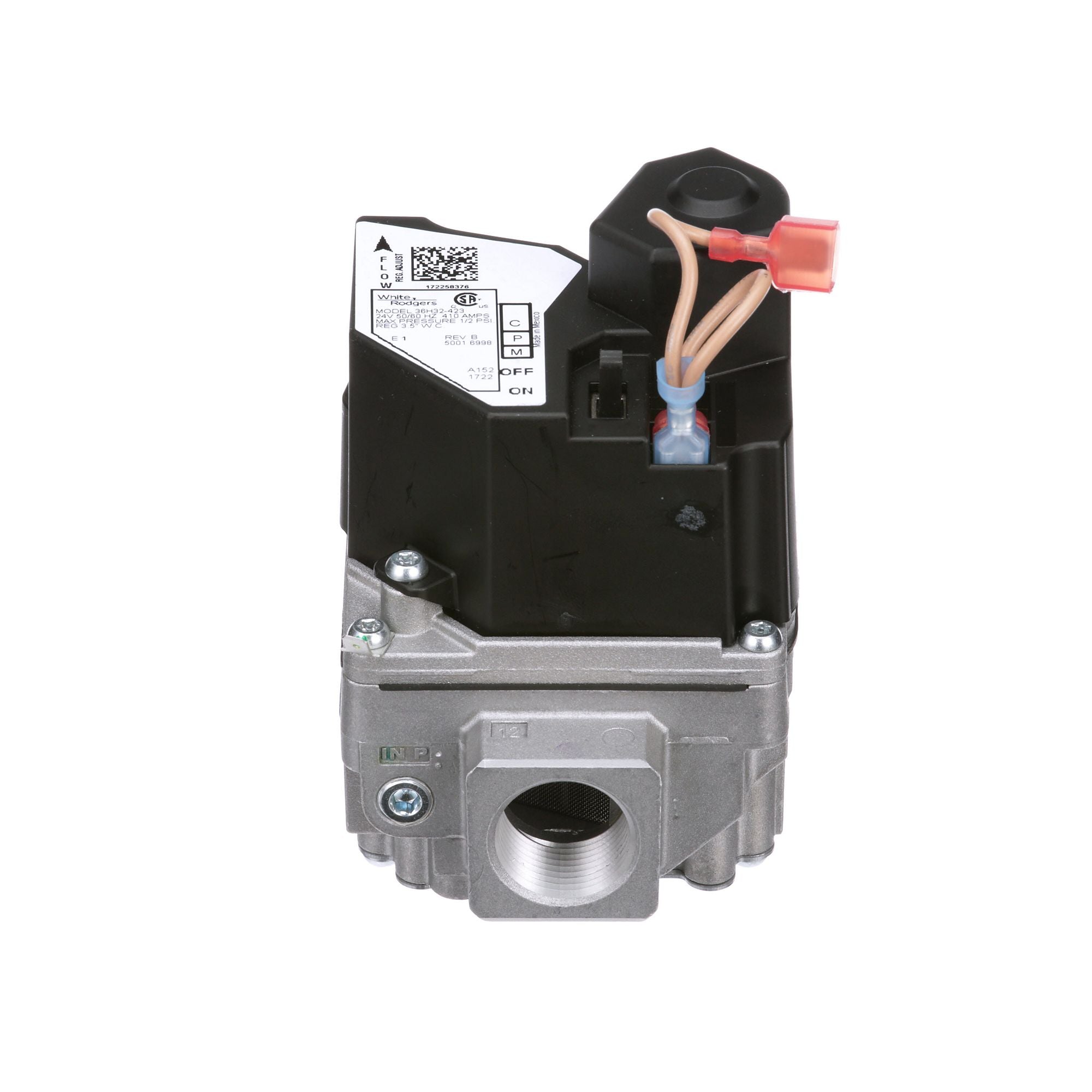

The WHITE-RODGERS 36H32-423 intermittent ignition gas valve is a versatile multi-function control designed for use with intermittent ignition systems. This combination gas valve meets the requirements for direct ignition and proven pilot systems. It features an adjustable regulator and quiet operation due to its redundant design.
- Adjustable regulator
- Quiet operation redundant design
- Inlet/outlet screens
- Tamper resistant screws
Product Highlights
This gas valve is designed for use with intermittent ignition systems and features a fast opening for efficient operation.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 36H32-423
-
Country of Origin: Mexico
Technical Specifications
-
Certification: CSA
-
Specification Met: CSA
-
Batteries Included?: No
-
Batteries Required?: No
-
Brand: White-Rodgers
-
Cycle/Hertz: 50/60 Hz
-
For Use With: Common Ignition Systems (HSI/DSI)
-
Fuel Type: Natural/Liquid Propane Gas
-
Height: 5
-
Length: 3.75
-
Package Height: 5
-
Package Length: 3.75
-
Package Width: 6.375
-
Prop 65: Yes
-
Stage: Single
-
UPC: 786710526725
-
Voltage: 24 VAC
-
Width: 6.375
-
Country of Origin: MEX
-
Input Supply Rating: 24 Volt AC 50/60 Hertz 0.41 Amp
-
Applicable Standard: CSA (Canada and US)
-
Application: Intermittent Ignition System
-
End Connection: Female Threaded x Female Threaded
-
End To End Distance: 3.984 Inch
-
Pressure Rating: 1/2 PSI
-
Temperature Rating: -40 to 175 Deg F
-
Nominal Size: 3/4 Inch x 3/4 Inch
-
BtuH Capacity: 300, 000
-
Gas Type: NG/LP
-
Coil Volts: 24
-
Inlet Size: 3/4 In.
-
Outlet Size: 3/4 In.
-
LP Conversion Kit: Yes
-
Side Taps: No
-
Inlet Pressure Tap: Yes
-
Ambient Temp. Range: -40 to 175 Degrees F
-
Amps AC: 0.41
-
Pressure Setting Range: 3.5 In. WC
-
Ignition Type: Intermittent Pilot, Hot Surface Ignition, Direct Spark Ignition
-
Series: 36H
-
Electrical Connections: 1/4 in Male Spade Quick-Connect Terminal
-
Nominal Capacity: 300000 Btu/cu-ft
-
Valve Type: Fast Opening
-
Item: Gas Valve
-

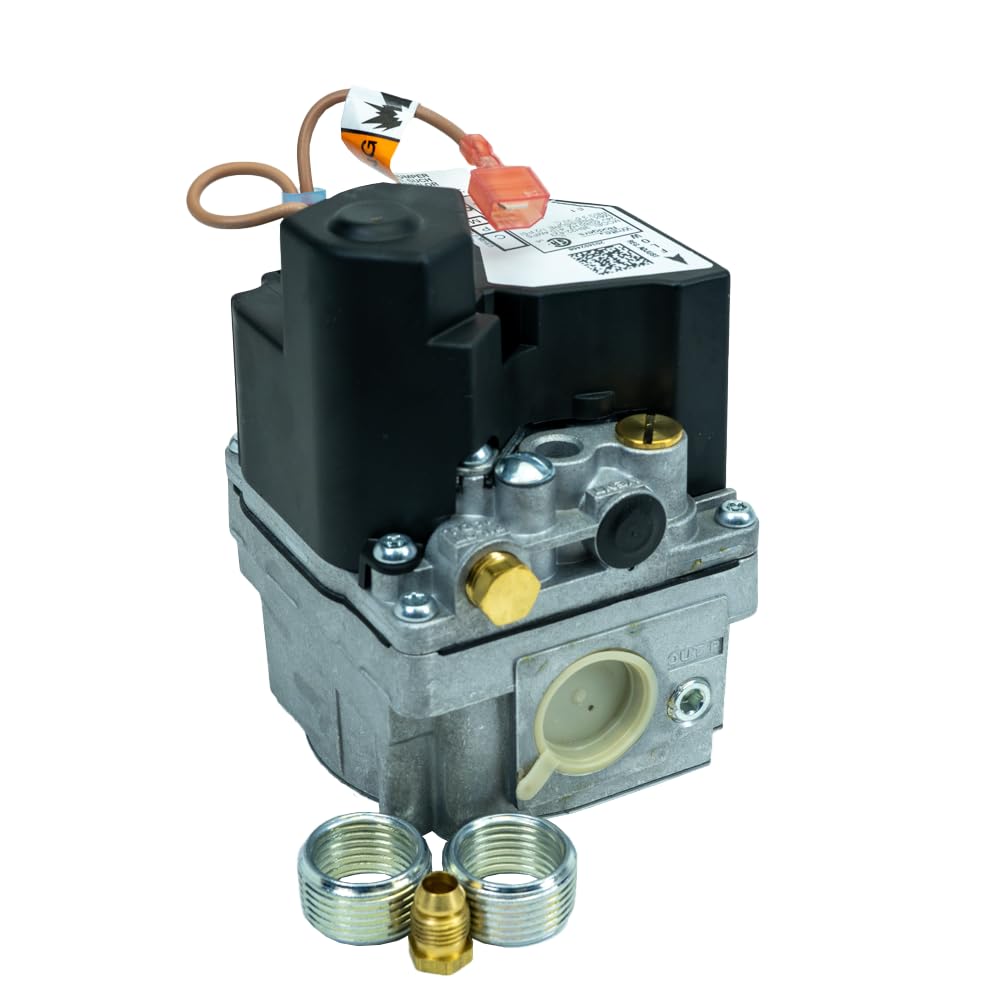

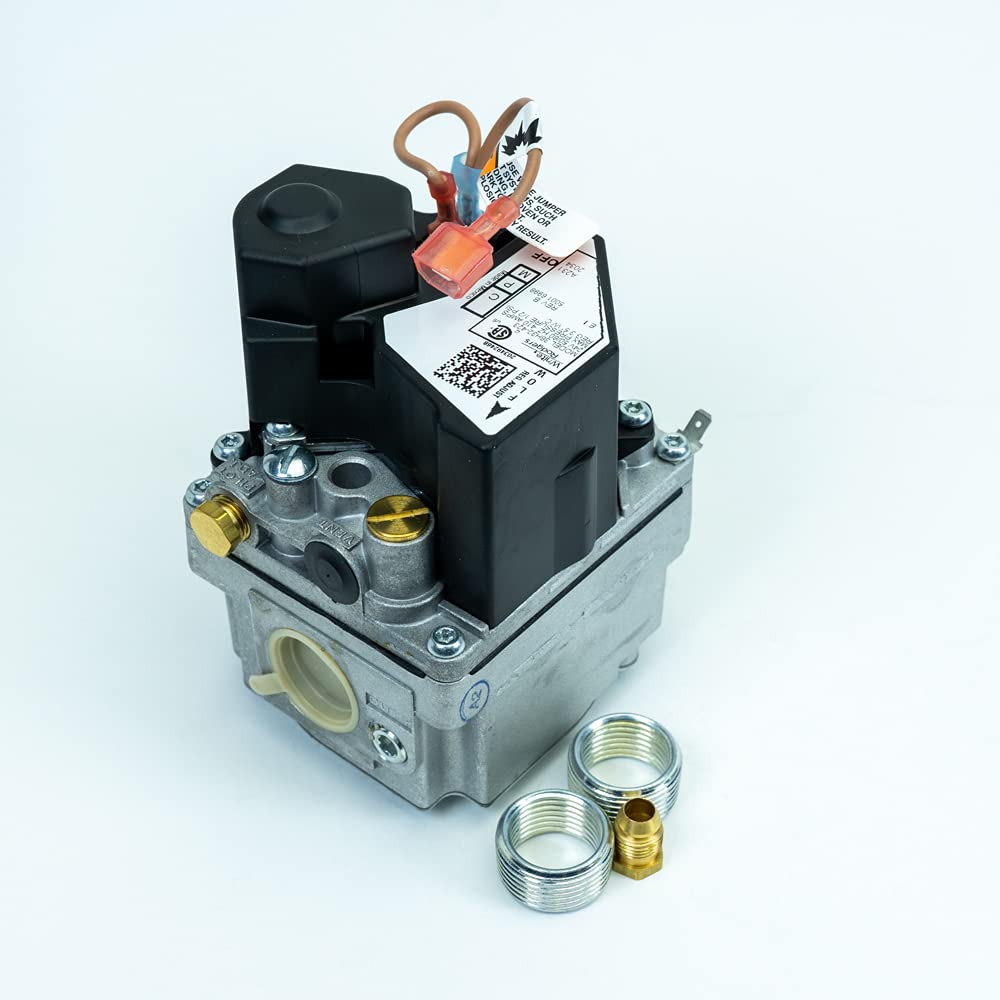

Includes: Natural to LP Gas Conversion Kit
-
Max. Inlet Pressure: 1/2 psi
-
Capacity: 3000000 BTU/Hour (Natural Gas), 486000 BTU/Hour (Liquid Propane Gas)
-
Overall Dimension: 3.259 Inch Width x 4.973 Inch Height
-
Regulator Adjustment Range: 2.5 to 5 Inch (Natural Gas), 5 to 12 Inch (Liquid Propane Gas)
-
Type: HSI/DSI, 1-Stage, Fast Open, Proven/Intermittent Pilot, Universal
-
Coil Voltage: 24VAC
-
Ambient Temperature: -40°F (-40°C) Min, 175°F (80°C) Max
-
Flow Direction: Straight Through
-
Frequency: 50 Hz, 60 Hz
-
Current Rating: 0.41 amp
-
Voltage Rating: 24 V ac
-
Pressure Regulator Setting: 3.5 in WC
-
Maximum Operating Temperature: +175 deg F
-
Minimum Operating Temperature: -40 deg F
-
Standards: CSA Approved
-
Maximum Operating Pressure: 0.5 Pound per Square Inch
-
Number of Ports: 1
-
Outlet Connection Size: 0.75 Inches
-
Size: 3/4
