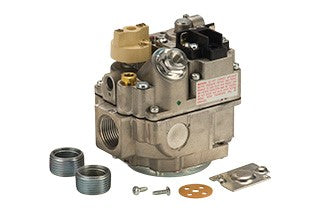

Robertshaw 700-406 Combination Gas Valve 24V 3/4 x 3/4 300000 BTU

Product Description

The Robertshaw 700-406 is a 24V combination gas valve suitable for natural gas and LP gas applications. Designed with flexibility and reliability in mind, this valve features a manual gas cock, automatic pilot safety valve, and inlet/outlet screens.

• Combination gas valve
• 300000 BTU capacity
• Straight-thru side outlet

Product Highlights

Perfect for HVAC applications, the Robertshaw 700-406 provides reliable gas flow control with features like a combination screw/spade terminal and a reset button for safety and ease of use.

Product Information

Standard Information

• Product Name: Robertshaw 700-406 Combination Gas Valve
• Brand: Robertshaw

Technical Specifications

• MPN: 700-406
• Input Supply: 24 VAC at 0.2 amps, 12 VDC at 0.18 amps
• Capacity: 300000 BTU
• Nominal Size: 3/4 Inch x 3/4 Inch
• Pressure Rating: 0.5 PSI
• Temperature Rating: -40 to 175 Deg F
• Gas Type: Natural Gas, LP
• Pilot Outlet Size: 1/4 Inch (Tubing)
• Inlet Connection: 3/4 Inch
• Outlet Connection: 3/4 Inch
• Applicable Standard: UL, CSA
