Product Description

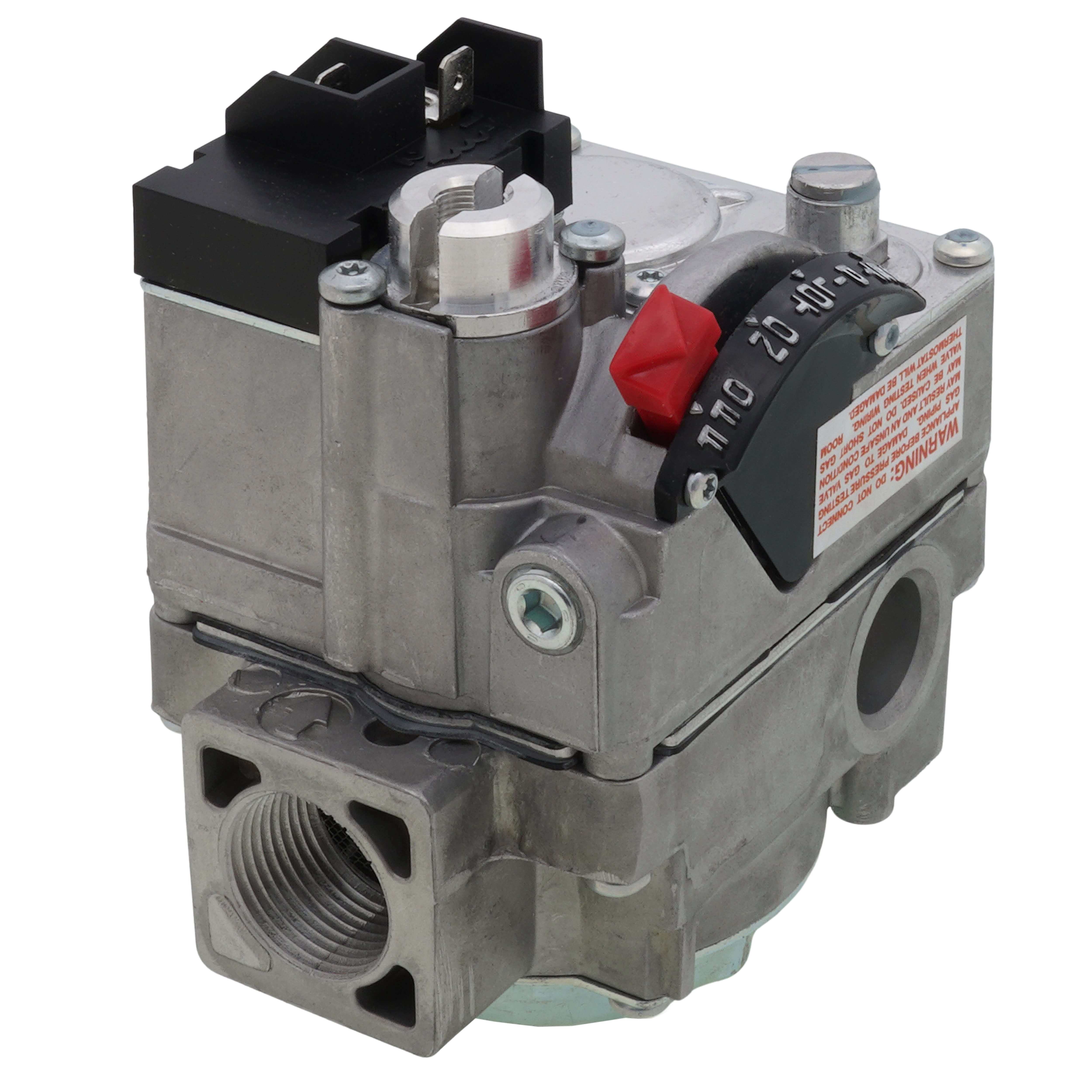

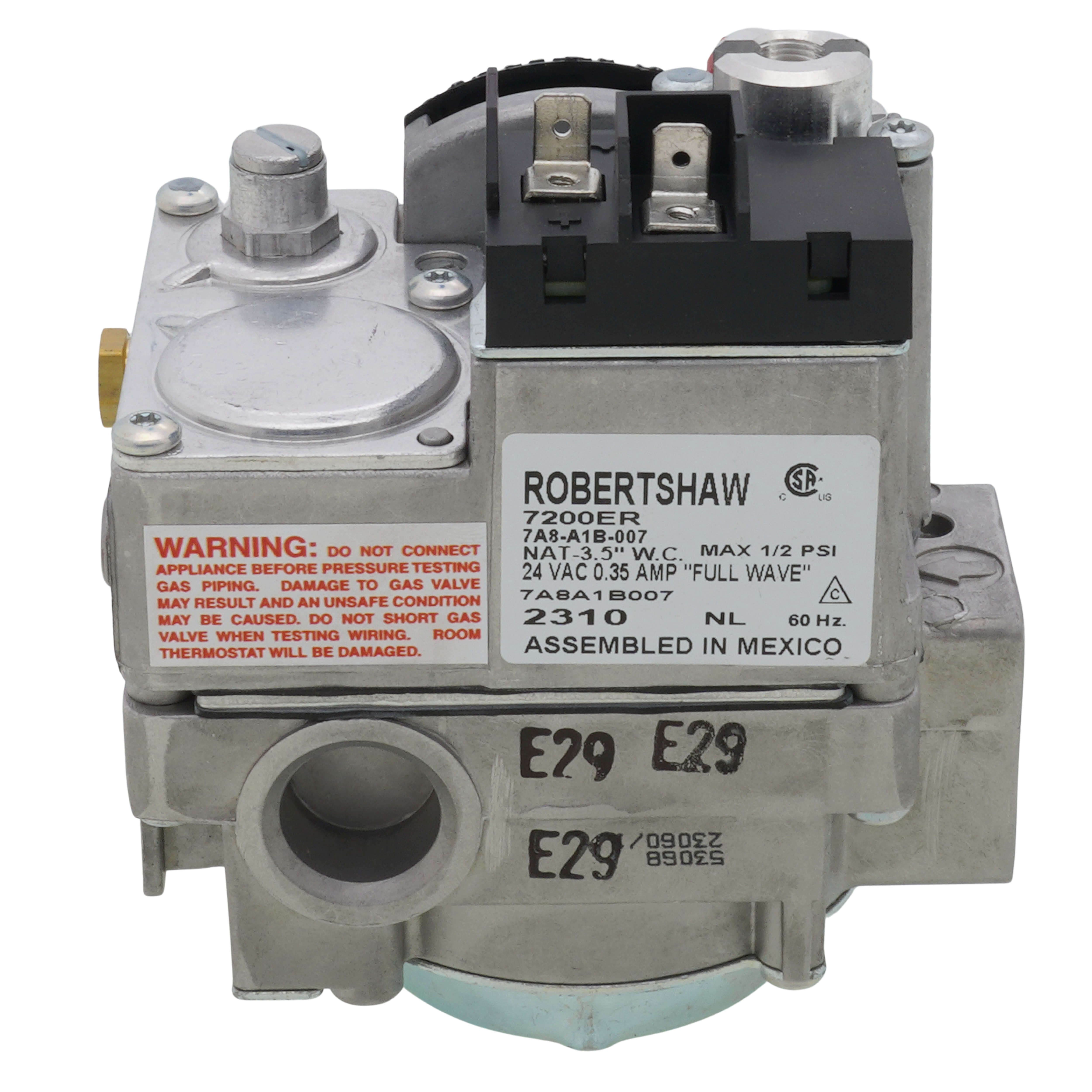

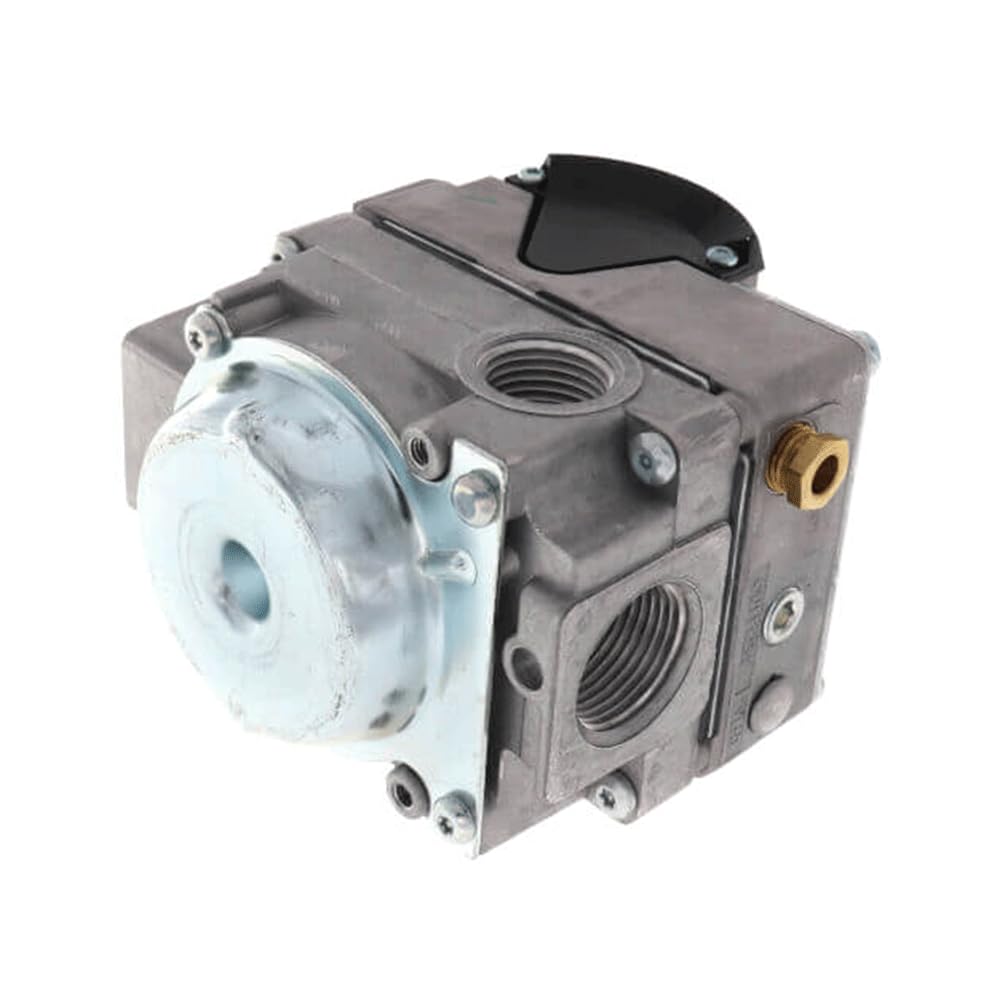

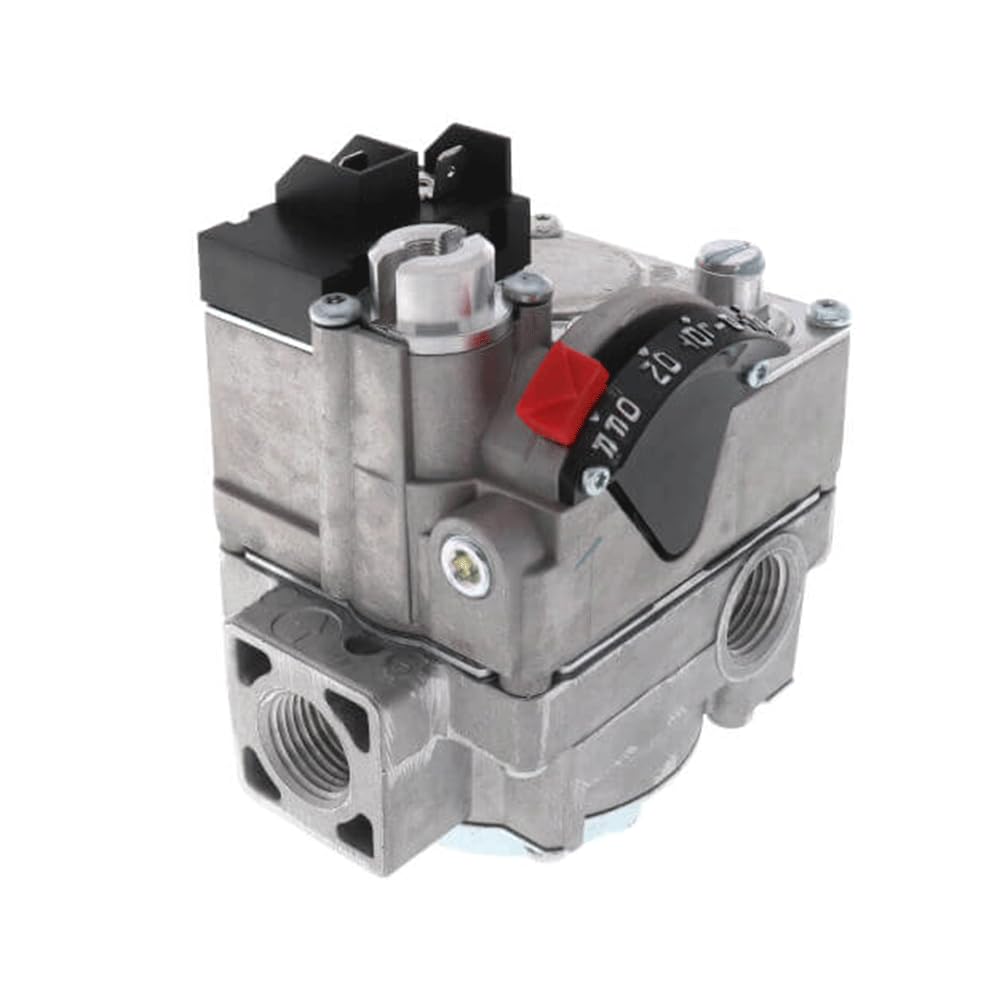

The ROBERTSHAW 720-406 gas valve is a natural gas valve with 3/4" x 3/4" dimensions, 150MBH Uni-Kit, 24V power, and dual HSI. Designed for a wide variety of heating applications, this valve can replace most constant pilot valves, including dual valve models. It features a manual valve, safety shutoff magnet, dual automatic valves, main gas regulator, and pilot adjustment.
- Includes LP Kit and Bushings
- 24V operation
- 3/4" X 3/4" NPT connections
Product Highlights
This gas valve is designed for use in commercial and industrial applications and constructed of durable materials to provide years of service.
Product Information
Standard Information
-
Brand: ROBERTSHAW
-
Manufacturer Part Number: 720-406
-
Country of Origin: Mexico
Technical Specifications
-
Type: Gas Valve
-
Voltage: 24V
-
Manufacturer: Invensys
-
Product Type: VALVE
-
Brand: ROBERTSHAW
-
MPN: 720-406
-
UPC: 66201363602
-
Series: 720
-
Gas Type: Liquid Propane/Natural Gas
-
End Style: FPT
-
Coil Voltage: 24 VAC
-
Nominal Size: 3/4 Inch
-
Ignition Type: Standing Pilot
-
Pressure Rating: 14 Inch WC
-
Nominal Capacity: 150000 BtuH
-
Electrical Ratings: 24 VAC, .5 amps, 50/60 Hz
-
Pressure regulator (Natural Gas): factory set at 3.5" W.C.
-
Pressure regulator (L.P. Gas): factory set at 11.0" W.C.
-
Pilot Outlet: 1/4" tubing
-
Ambient Temperature: -40°F (-40°C) Min, 175°F (80°C) Max
-
Maximum Inlet Pressure: 14" W.C. (1/2 PSI)
-
Item: Gas Valve
-
Amps AC: 0.5 A
-

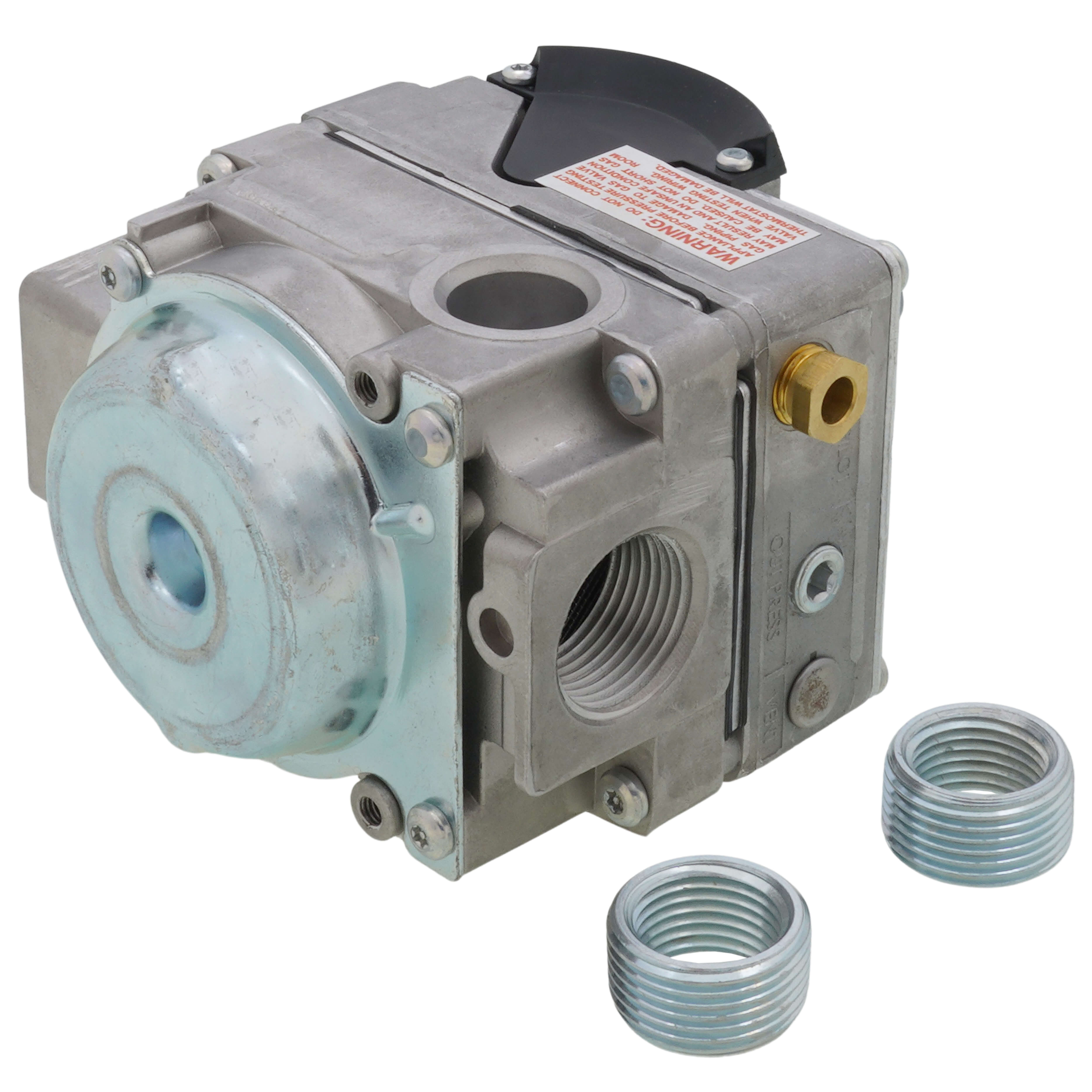

Includes: (2) 3/4 x 1/2 in Reducer Bushings, Outlet Pressure Tap, Regulator Kit to Convert to LP
-
Side Taps: No
-
Standards: NEMA, RoHS compliant
-
Inlet Size: 3/4 in
-
Outlet Size: 3/4 in
-
BtuH Capacity: 150,000
-
LP Conversion Kit: Yes
-
Inlet Pressure Tap: No
-
Ambient Temp. Range: -40 to 175 Degrees F
-
Max. Inlet Pressure: 1/2 psi
-
Reducer Bushing Kit: (2) 3/4 x 1/2 in
-
Pressure Setting Range: 3.5 in wc
-
Country of Origin (subject to change): Mexico
-
Fuel Type: Various
-
Capacity (BTU): 150000
-
BTU: 150000
-
Series Application: 24V Dual
-
Factory Part Number: 7200ER
-
Pressure Regulation: Uni-Kit Natural Gas
-
Capacity: 150,000 BTU
-
Reducer Bushing (NPT): (2) 3/4" x 1/2"
-
Electrical Rating: 24V AC @ 0.5 Amps, 50/60 Hz
-
Pilot: 1/4" tubing
-
Side Outlets: None
-
Amperage: 0.5 Amps
-
Frequency: 50 Hz, 60 Hz
-
Gas cock dial marking: Off - Pilot - On
-
Terminal type: Combination screw/spade terminal type
-
Terminals: Standard NEMA terminals
-
Inlet: Filtered screen
-
Gas types: Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
-
Actuators: Multiple actuators available
-
RoHS: RoHS compliant
-
Model: 720-406
-
Power Source: Gas
-
Compatible Brand: For Amana, For Carrier, For Frymaster, For Vulcan, For Honeywell, For Daikin, For American Standard, For Armstrong
-
Item Length: 2.8 in.
-
Item Width: 4.25 in.
-
Pilot Type: Standing
-
Number of Stages: Dual
-
Opening Characteristic: Fast Opening
-
Max. Heating Capacity: 150,000 BtuH
-
Current: 0.5 A
-
Flow Direction: Straight-Thru
-
Electrical Connections: Screw/Spade Terminal
-
Inlet/Outlet Connection Size: 1/2 in
-
Inlet/Outlet Connection Gender: Female
-
Inlet/Outlet Connection Type: NPT
-
Sensing Type: Flame Sensor
-
Pressure Regulator Included: Yes
-
Pressure Tap Outlet Included: Included
-
Fuel Conversion Kit Included: Yes
-
Side Taps Included: No
-
Includes On/Off Switch: Yes
-
Mechanical Thermostat Included: No
-
Pilot Generator Kit Included: No
-
Compatible Fuel Type: Liquid Propane, Natural Gas
-
Installation Orientation: Versatile
-
Pilot Port Connection Size: 1/4 in
-
Pilot Port Connection Type: Compression
-
Operating Temperature - Maximum: 175 °F
-
Operating Temperature - Minimum: -40 °F
-
Manufacturer Series: 720
-
Manufacturer Part Number: 720-406
