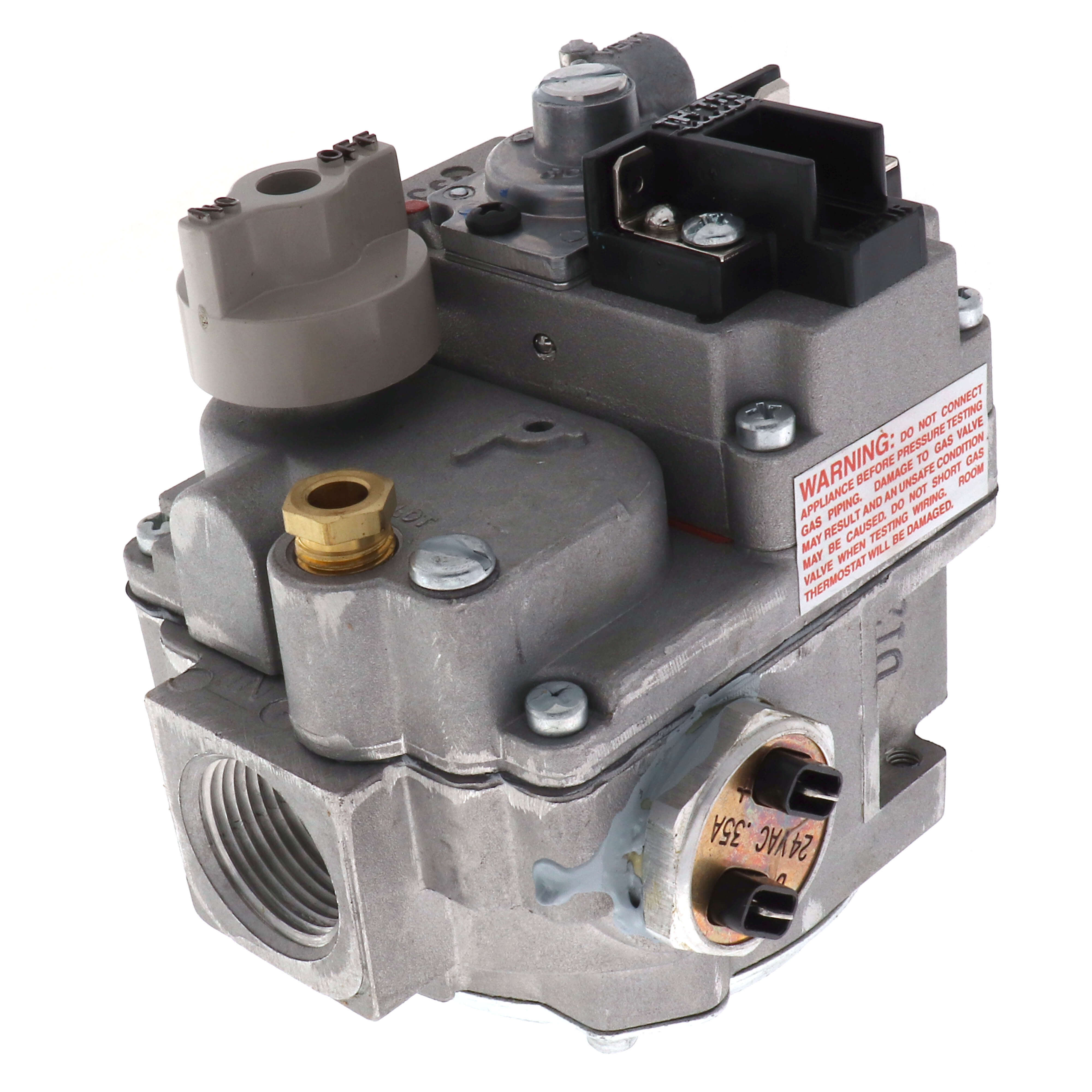

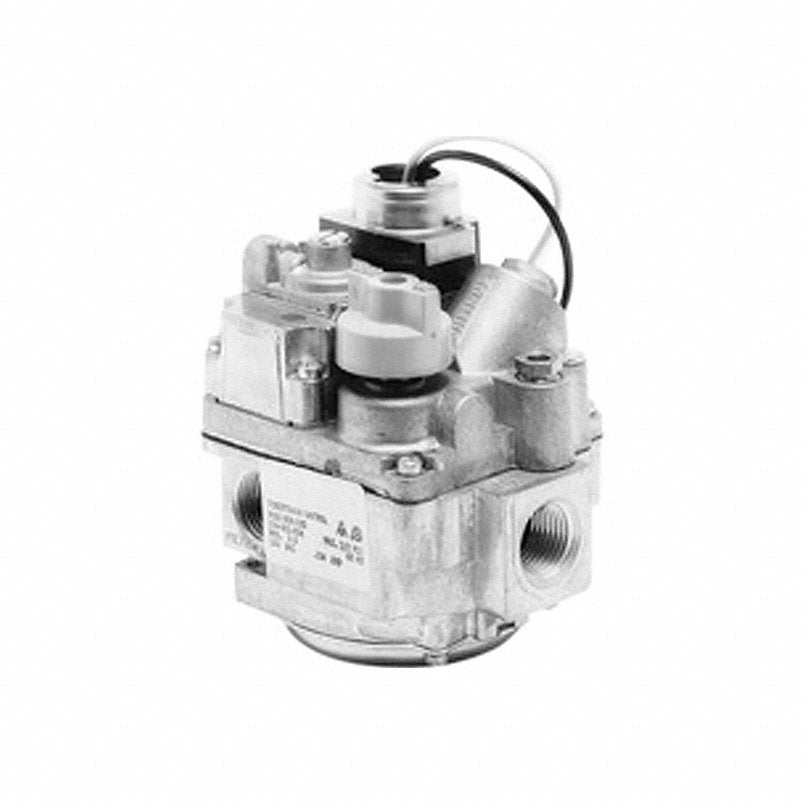

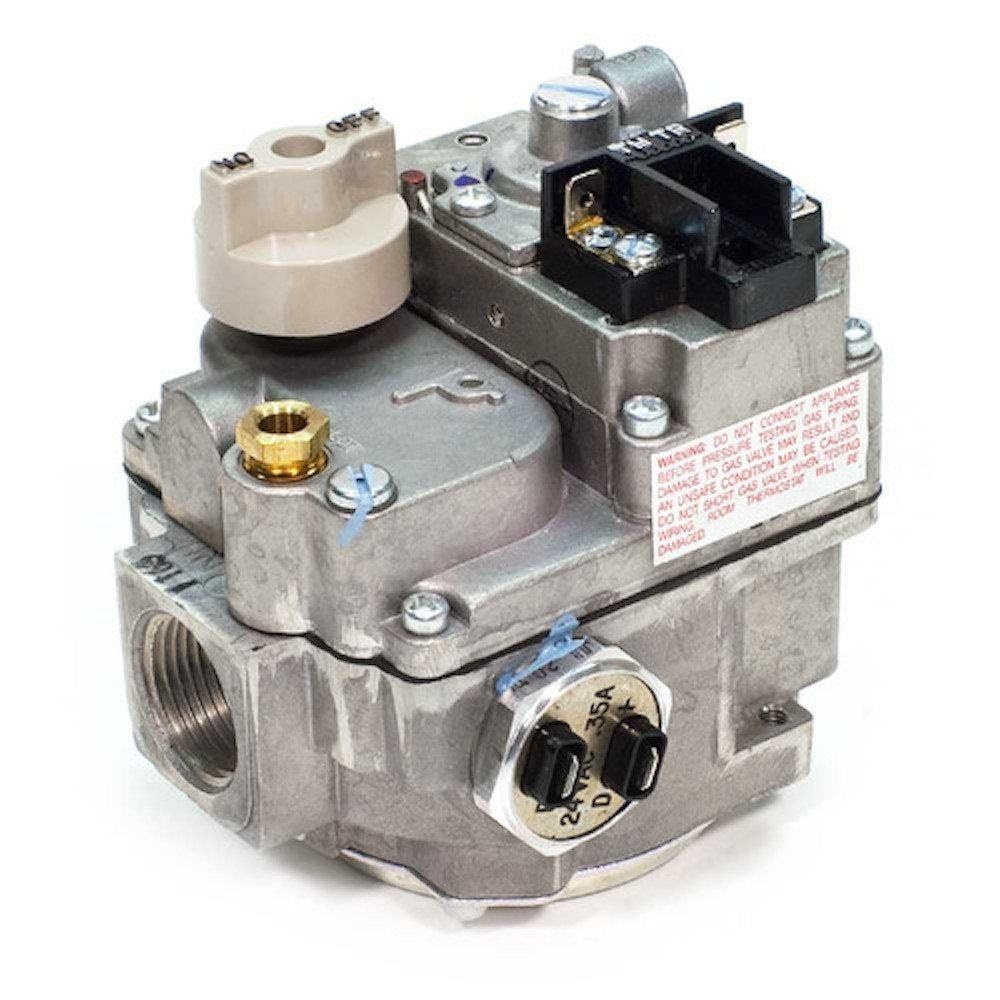

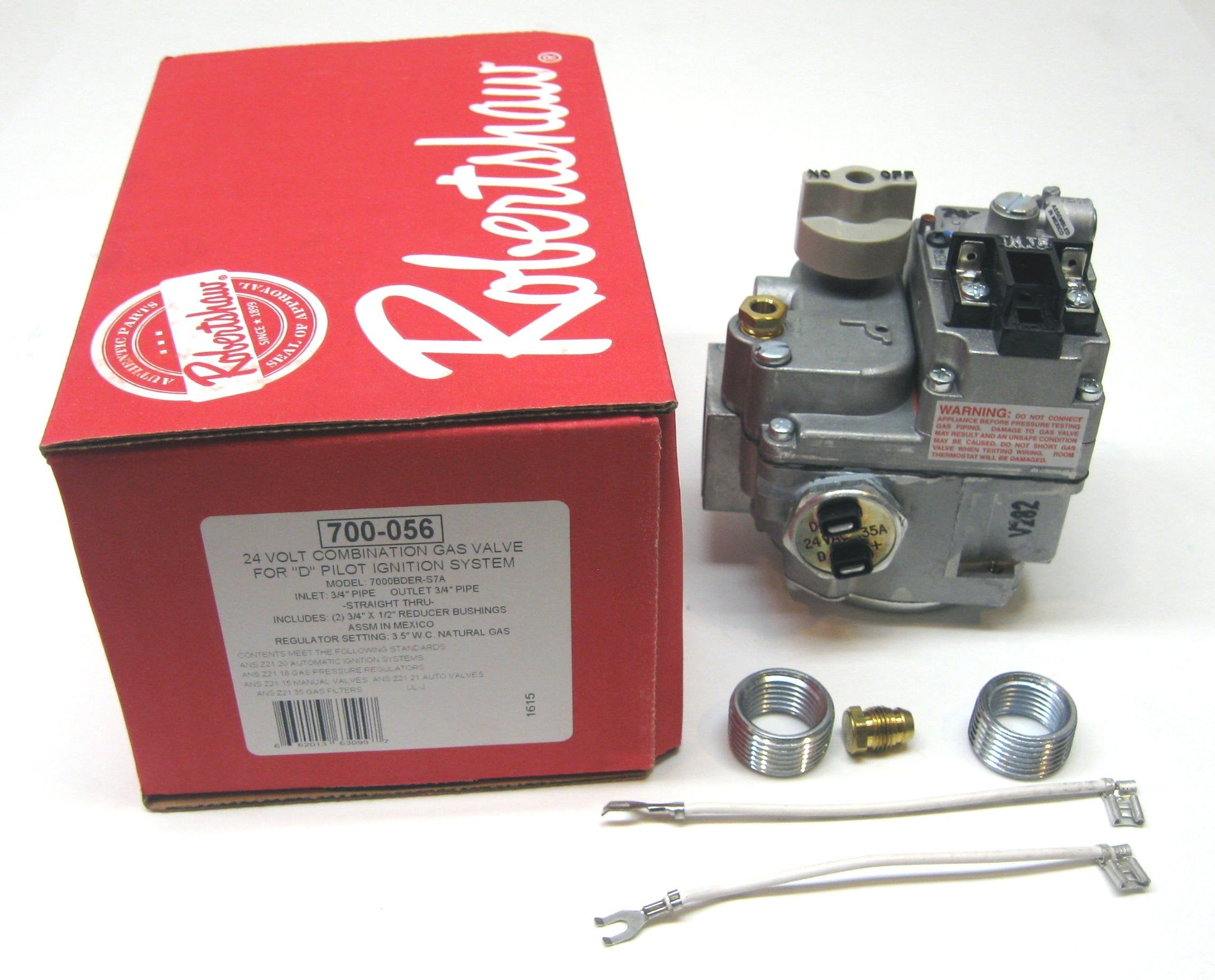

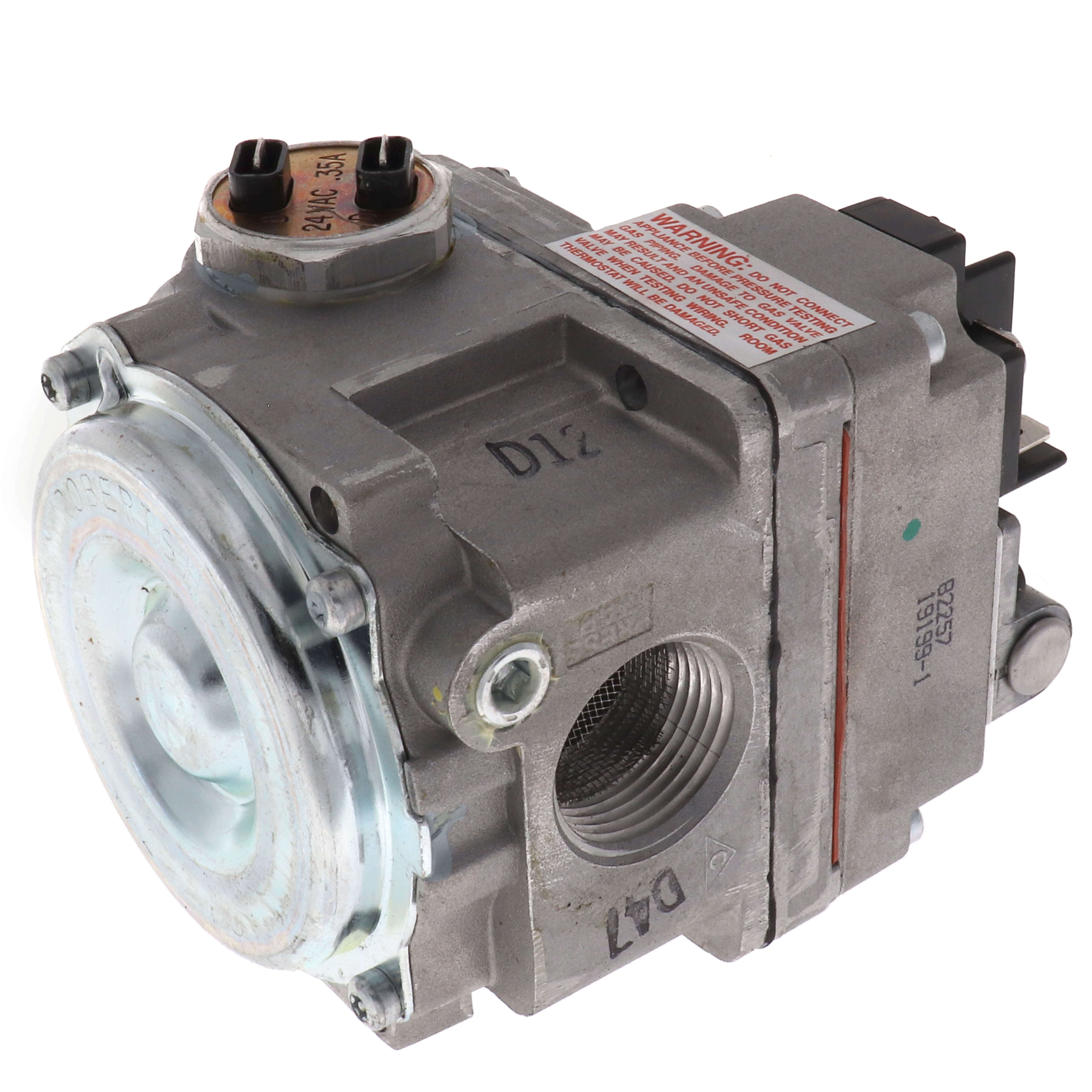

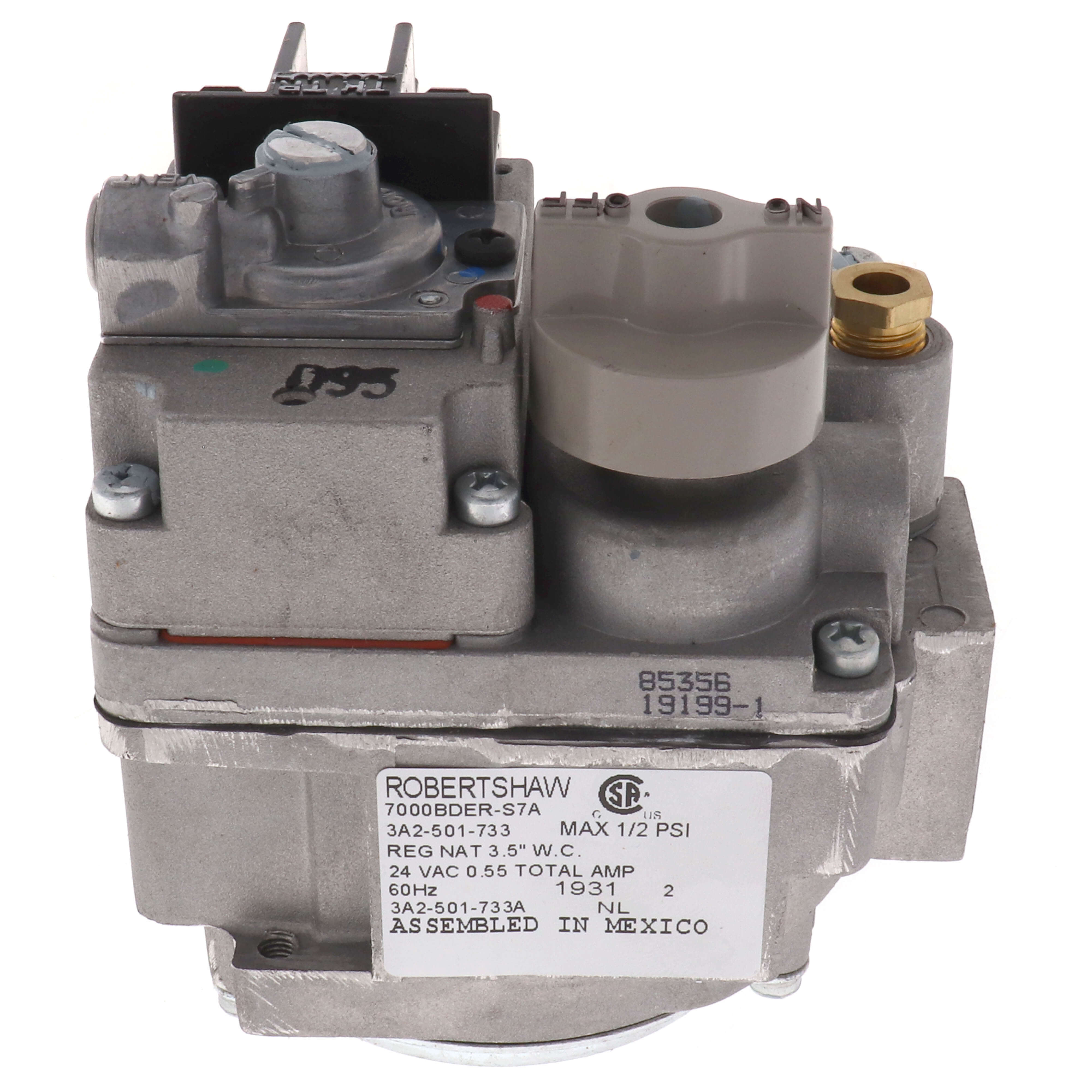

Robertshaw 700-056 Universal Gas Valve 350000 BTU

Product Description

The Robertshaw 700-056 universal gas valve is designed for intermittent pilot ignition applications. These universal models include the necessary parts to adapt the valves to direct spark or hot surface applications. It is designed for residential and commercial applications such as central heating units, wall heaters, boilers and mobile home furnaces.

• Universal models with pilot, hot surface and direct spark ignition systems
• Maximum inlet pressure 14 inch
• Ambient temperature of -40°f to 175°f

Product Highlights

This gas valve incorporates a manual valve, pilot valve, and a main gas pressure regulator. It ensures a gradual flow of gas, minimizing pressure surges and abrupt system changes.

Product Information

Standard Information

• Brand: ROBERTSHAW
• Manufacturer Part Number: 700-056
• Country of Origin: Mexico

Technical Specifications

• Item Model Number: 700-056
• Manufacturer: Robertshaw Controls Company
• Brand: Robertshaw
• Product Type: VALVE
• Series Application: Universal Model
• Pressure Regulation: 3.5" WC Natural Gas
• Capacity: 350,000 BTU
• Inlet Size: 3/4"
• Electrical Rating: 24V AC @ 60 Hz
• Outlet Size: 3/4"
• Maximum Inlet Pressure: 14" WC (1/2 PSI)
• Fuel Type: Natural Gas
• Ignition Type: Intermittent Pilot, Direct Spark and Hot Surface
• Ambient Temperature: -40°F to 175°F
• Series: 700
• Gas Type: Natural Gas
• End Style: FPT
• Coil Voltage: 24 V
• Nominal Size: 3/4 Inch
• Pressure Rating: 0.5 psi
• Nominal Capacity: 350000 BtuH
