Product Information

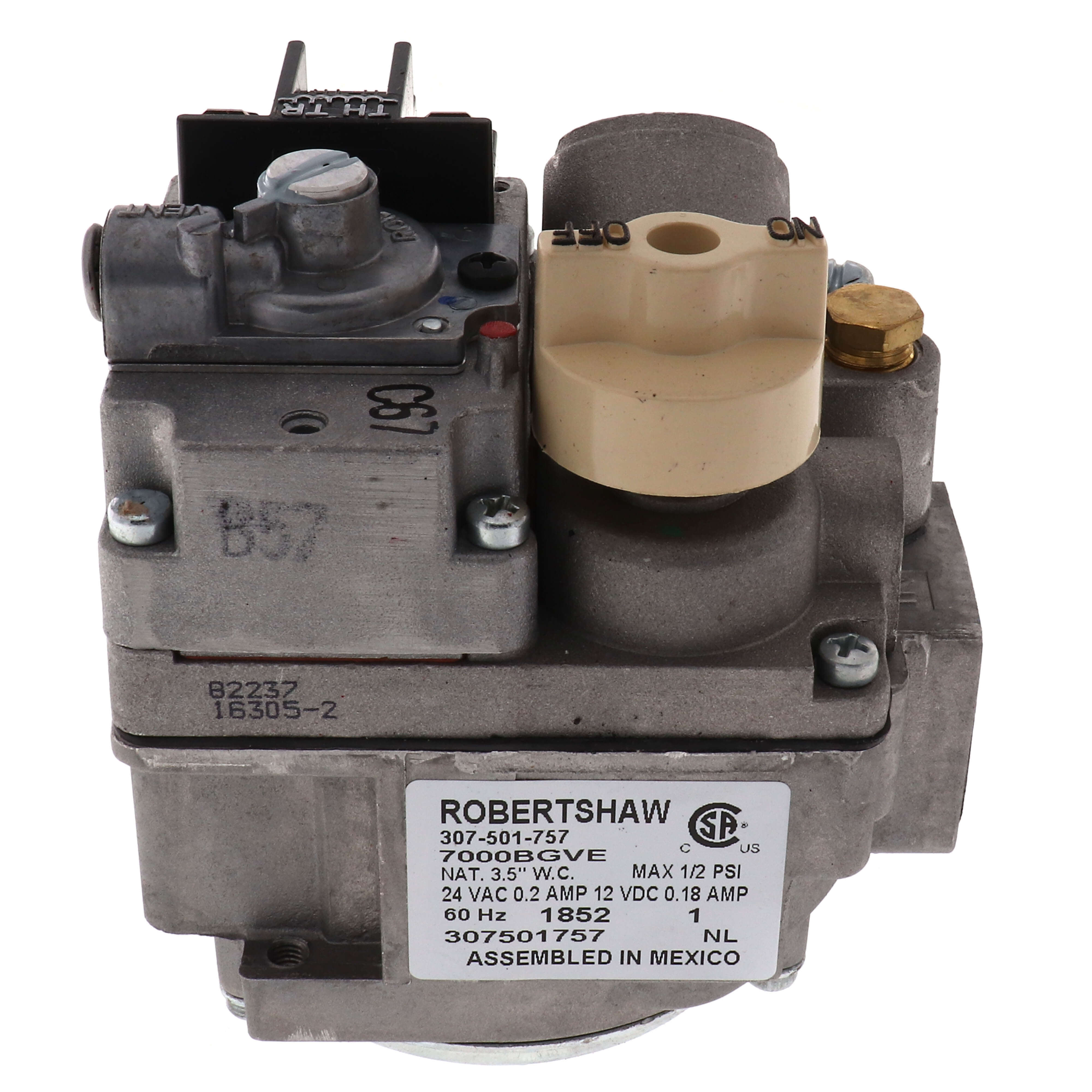

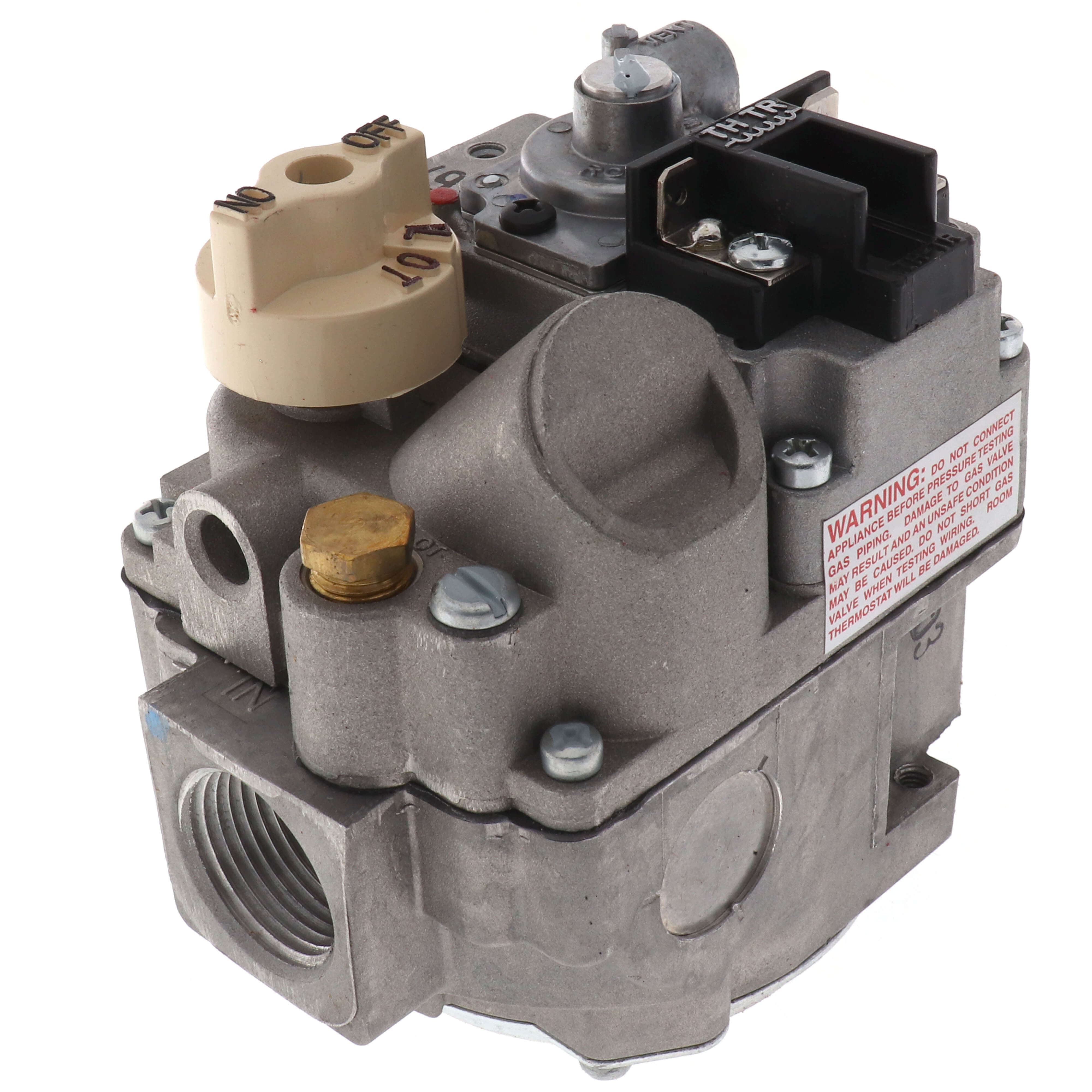

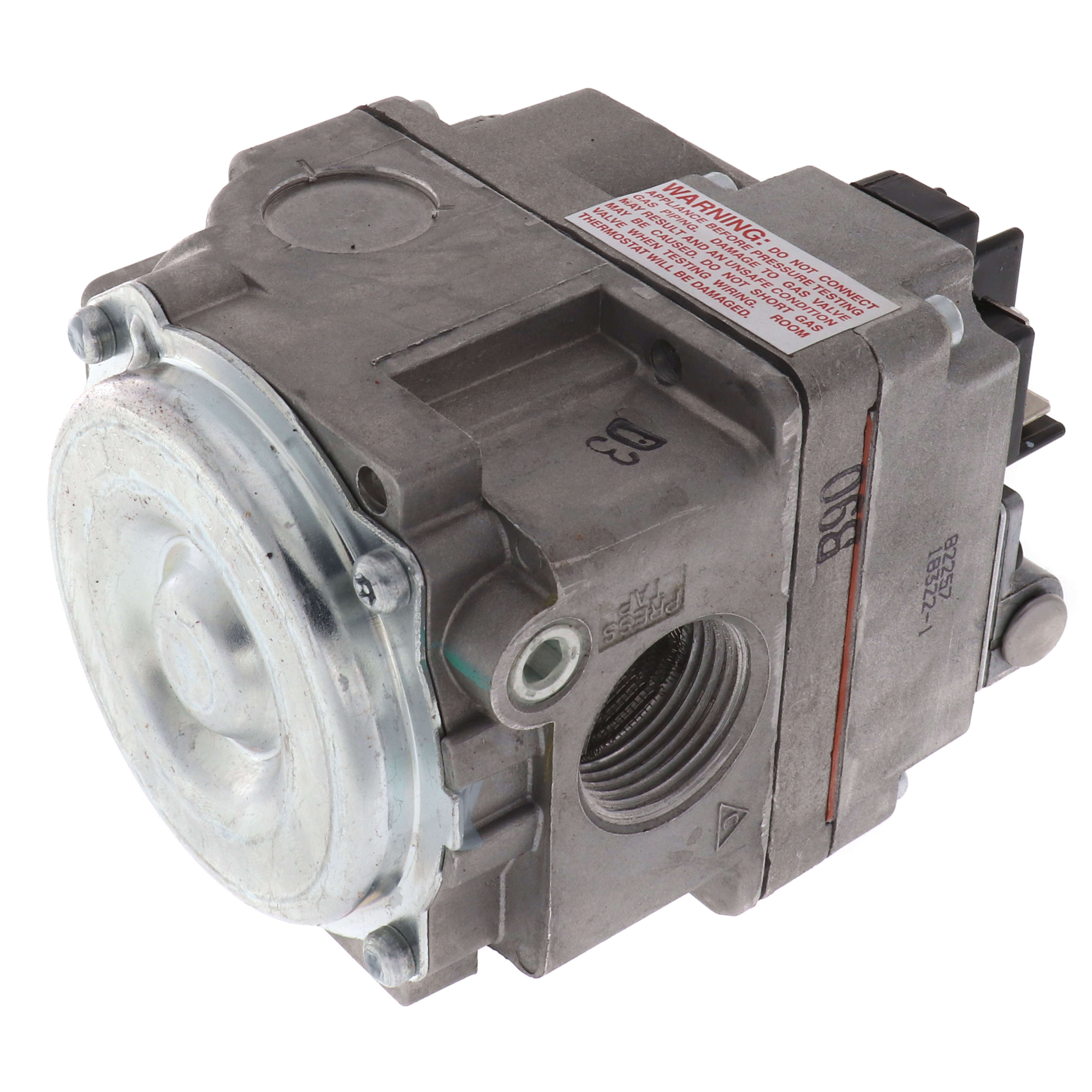

- Gas Valve
- Type 2-Stage
- Nominal Size 3/4 Inch
- End Connection Female Threaded x Female Threaded
- Input Supply Rating 24 Volt AC at 50/60 Hertz 0.2 Amp, 120 Volt AC at 50/60 Hertz 0.034 Amp, 240 Volt AC at 50/60 Hertz 0.017 Amp, 240 Millivolt to 750 Millivolt
- Temperature Rating -40 to 175 Deg F
- Pressure Rating 1/2 PSI
- Inclusions/Features Inlet/Outlet Filtered Screen, Pilot Gas Filter, Pilot Adjustment Key
- RoHS Compliant
- Terminal Type 1/4 Inch Quick Connect
- Side Outlet Size Straight-Thru
- Pilot Outlet Size 1/4 Inch Tubing
- Reducer Bushing Size 2 Inch Threaded
- Capacity 300000 BTU/Hour
- Pressure Regulator Setting 3.5 Inch WC (Natural Gas)
