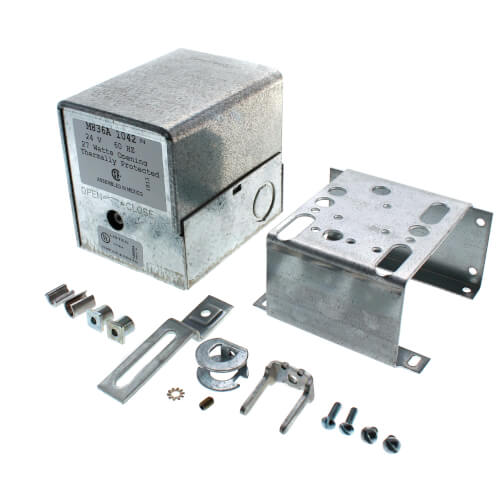

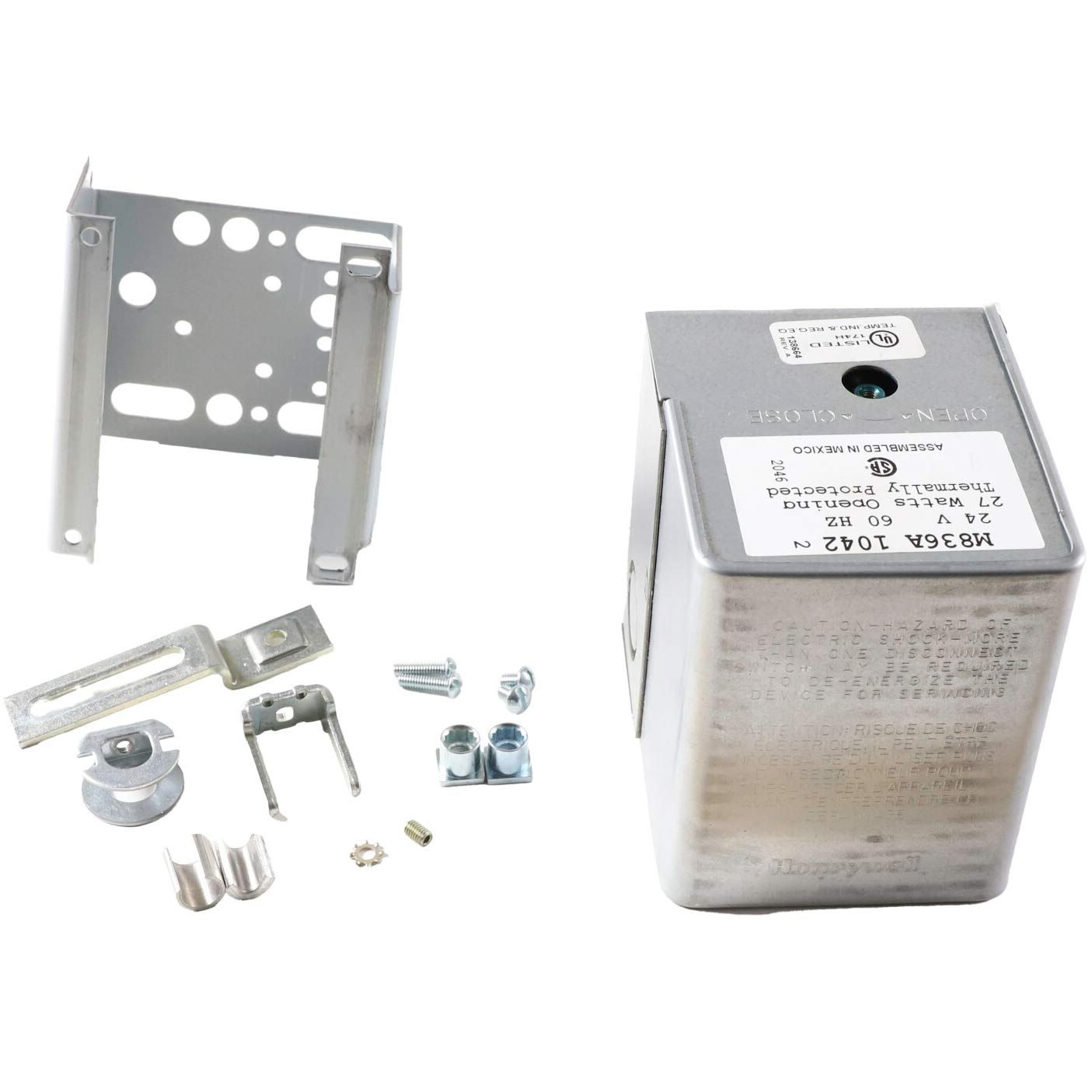

Honeywell M836A1042 Two-Position Damper Motor 24 VAC 20 Pounds per Inch

Product Description

The Honeywell M836A1042 is a two-position damper motor designed for precise airflow control. It operates on 24 VAC, providing 20 pounds per inch of torque. This spring return motor is ideal for residential and light commercial applications.

• Operates outdoor air dampers for combustion or makeup air
• Controls changeover dampers for heating and cooling systems
• Ensures minimum position dampers for ventilation

Product Highlights

This Honeywell damper motor is equipped with a spring return feature, ensuring the motor returns to the start position during power failure. It includes an internal switch to control auxiliary equipment and other motors.

Product Information

Standard Information

• Voltage: 24 VAC
• Torque: 20 pounds per inch

Technical Specifications

• Type: Foot Mount
• Control Signal: Two-Position SPST
• Fail Safe Mode: Spring Return
• Timing: 30 seconds
• Stroke: 75 degrees
• Temperature Range: 32 to 125 degrees Fahrenheit
• Dimensions: 4.5 inches H x 4.625 inches W x 3.75 inches D
• Weight: 4.99 pounds
• Electrical Connection: Screw Terminal
