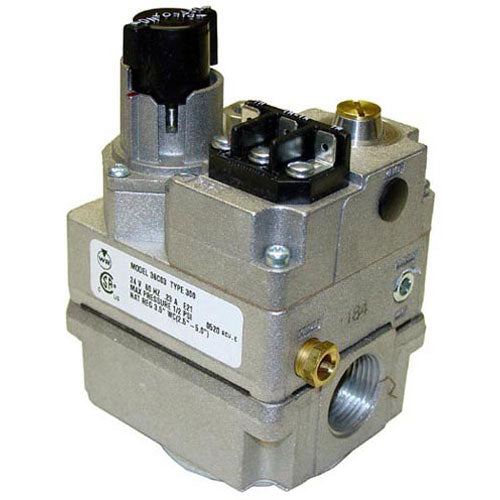

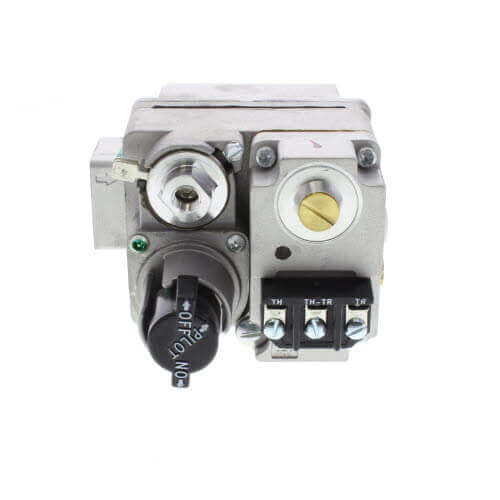

White-Rodgers 36C03-300 Gas Valve 1/2 in Inlet x 3/4 in Outlet Universal Standing Pilot - 24V

Product Description

The White-Rodgers gas valve MPN 36C03-300 is designed for natural and liquid propane applications. This valve features a half-inch inlet and three-quarters inch outlet, making it suitable for various heating systems. It operates at 24 volts and includes important components such as an LP conversion kit.

• Universal standing pilot ignition
• Fast opening for immediate gas flow
• Includes reducer bushings for flexible installation

Product Highlights

This valve is ideal for replacing existing models in the field and is compatible with a wide range of systems, ensuring smooth operation and reliability.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 36C03-300

Technical Specifications

• Nominal Size: 1/2 x 3/4 in
• Coil Voltage: 24 V AC
• Gas Type: Liquid Propane/Natural Gas
• Ignition Type: Standing Pilot
• Pressure Rating: 0.5 psi
• Nominal Capacity: 230,000 Btu/cu-ft
• Temperature Rating: -40 to 175 deg F
• Electrical Connections: 1/8 in NPT Pressure Tap
• Type: Single Stage
• Dimensions: 6 in (Length) x 4.75 in (Width) x 3.25 in (Height)
