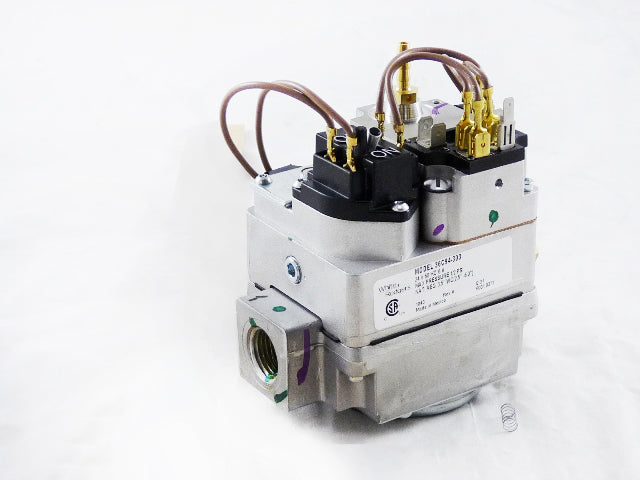

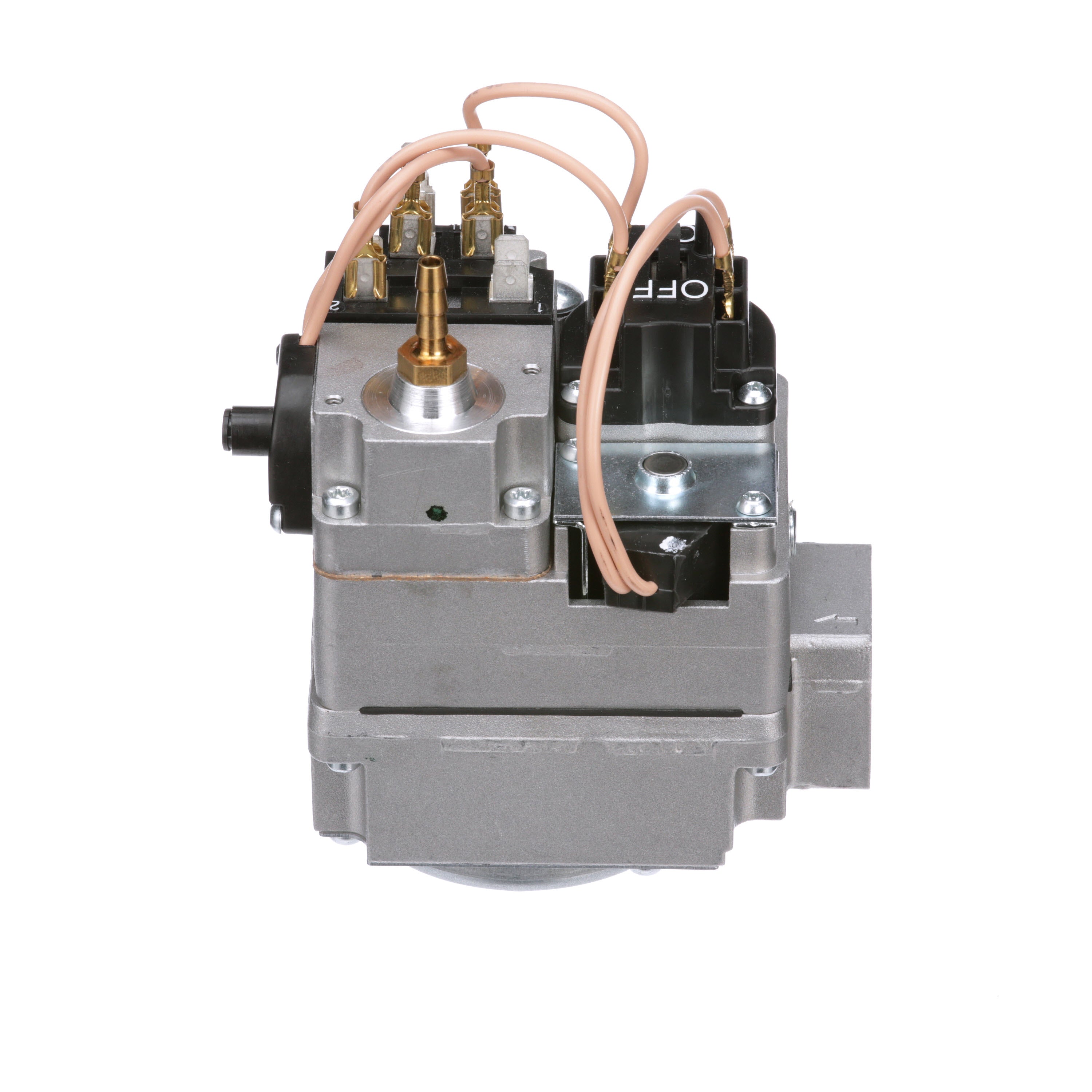

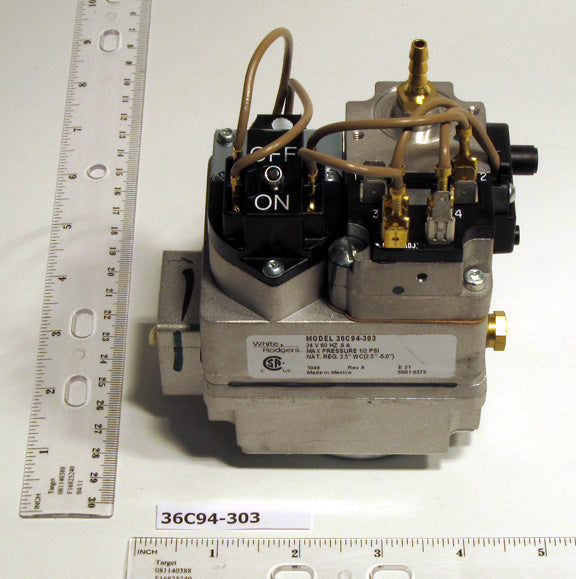

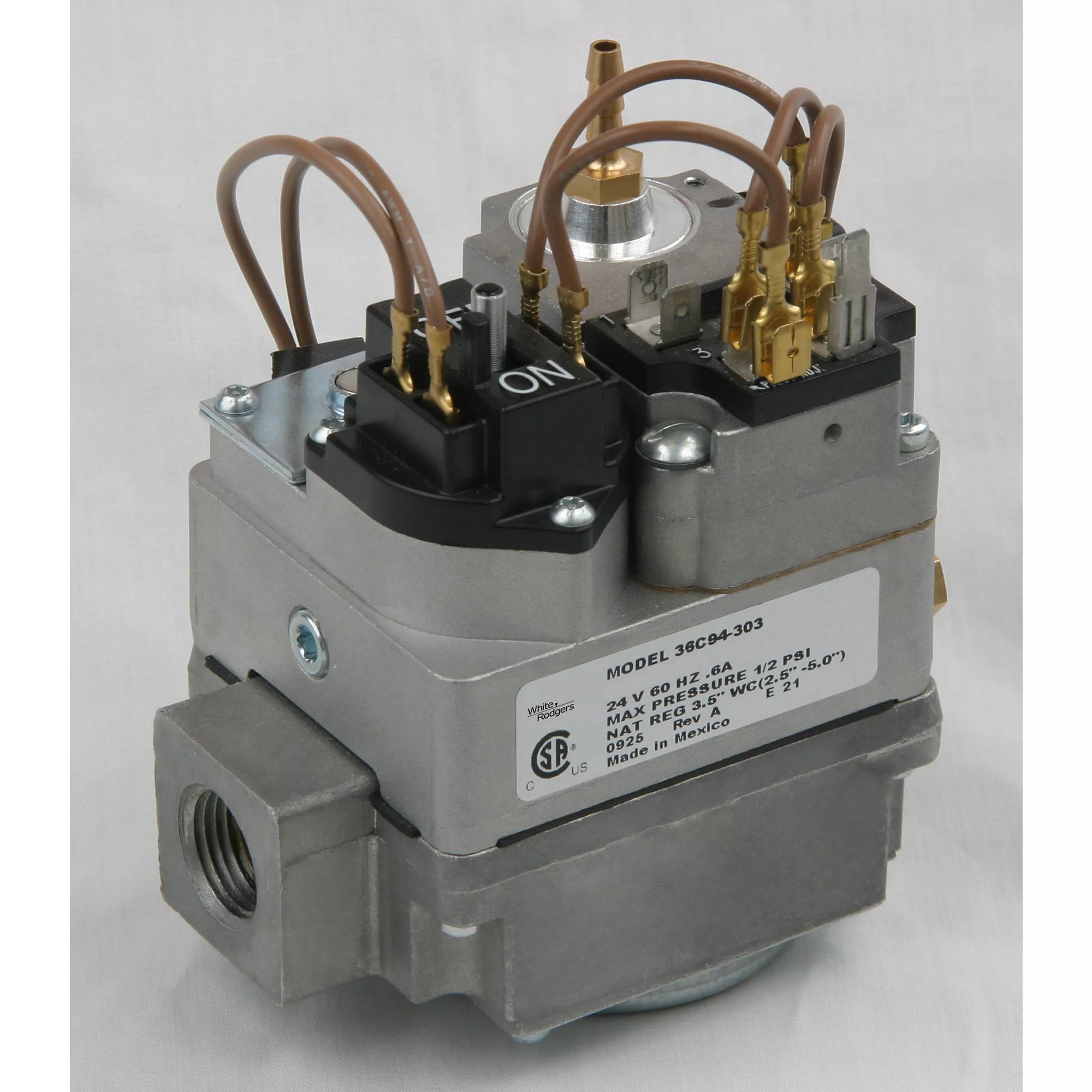

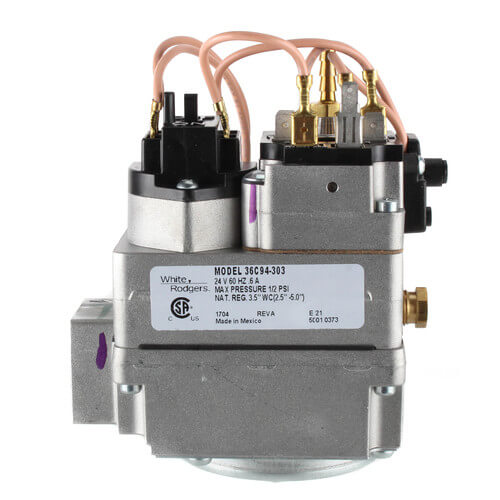

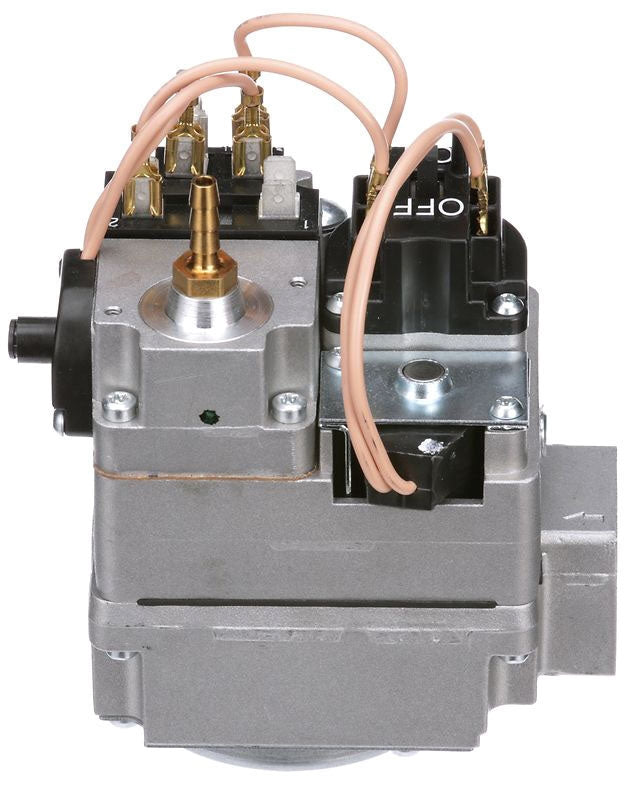

White-Rodgers 36C94-303 Gas Valve, NG/LP, Hot Surface Ignition and Direct Spark Ignition

Product Description

The WHITE-RODGERS 36C94-303 is a gas valve designed for natural gas and liquid propane, featuring hot surface ignition and direct spark ignition. It has a 1/2 inch x 3/4 inch nominal size and is suitable for intermittent ignition systems. The valve includes a liquid propane conversion kit and an inlet pressure tap. It operates at 24VAC.

• Convertible Natural/Liquid Propane Gas
• Includes Liquid Propane Gas Conversion Kit
• Features Inlet Pressure Tap

Product Highlights

This gas valve is designed for use with natural gas or liquid propane and features hot surface and direct spark ignition.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 36C94-303
• Country of Origin: United States

Technical Specifications

• Brand: White-Rodgers
• Item Model Number: 36C94-303
• Gas Type: Liquid Propane/Natural Gas
• Pipe Size: 1/2" x 3/4"
• Temperature Range: -40 to 175 Deg F
• Voltage: 24 VAC
• Type: Straight Through, Intermittent Ignition System, Delay Slow
• Nominal Size: 1/2 x 3/4 in
• End Connection: Female Threaded x Female Threaded
• Input Supply Rating: 24 Volt AC at 60 Hertz, 0.23 Amp
• Pressure Rating: 1/2 PSI
• Inclusions/Features: Convertible Natural/Liquid Propane Gas, Liquid Propane Gas Conversion Kit, Inlet Pressure Tap
• Applicable Standard: CSA (Canada and US)
• Fuel Type: Natural/Liquid Propane
• Pilot Gas Connection: 1/4 Inch Compression
• Pressure Tap Connection: 1/8 Inch Threaded
• Pressure Drop Capacity: 230000 BTU/Hour (Natural), 372600 BTU/Hour (Liquid Propane)
• Regulator Adjustment Range: 2.5 to 5 Inch (Natural), 7.5 to 12 Inch (Liquid Propane)
• Coil Volts: 24VAC
• Ignition Type: Hot Surface Ignition and Direct Spark Ignition
• Valve Type: Delay Slow
• Inlet Size: 1/2 in
• Outlet Size: 3/4 in
• LP Conversion Kit: Yes
• Inlet Pressure Tap: Yes
• Ambient Temp. Range: -40 Degrees to 175 Degrees F
• Pressure Setting Range: LP 7.0 to 12.0 in wc, NG 2.5 to 5.0 in wc
• Max. Inlet Pressure: 1/2 psi
• Series: 36C
• Mounting Type: Horizontal/Vertical
• Voltage Rating: 24 VAC at 60 Hz
• Options: Slow Opening
• Opening Style: Slow
• Volts: 24 VAC
• BtuH Capacity: 230,000
• Inlet Conn.: 1/2"
• Outlet Conn.: 3/4"
• Item: Gas Valve
• For Use With: Intermittent Ignition Systems (Direct Ignition, Proven Pilot, HSI)
• Country of Origin (subject to change): Mexico
• Stage: Single
• Cycle/Hertz: 50/60 Hz
• Material: Metal
• Inlet Connection Type: threaded
• Outlet Connection Type: NPT
• Number of Ports: 2
• Specification Met: ULC
• Manufacturer: White Rodgers
• Part Number: WR for White Rodgers # 36C94-303
• Manufacturer Name: White-Rodgers
• Manufacturer Part Number: 36C94-303
• Series/Model: 36C
• Domestic/Import: Import
• Electrical Connections: 1/8 in NPT Pressure Tap
• Includes: Leak Limiting Hose Barb (Fitting) on Regulator Tower, Instruction Sheet and LP Gas Conversion Kit
• Prop 65: Yes
• Date First Available: March 30, 2012
