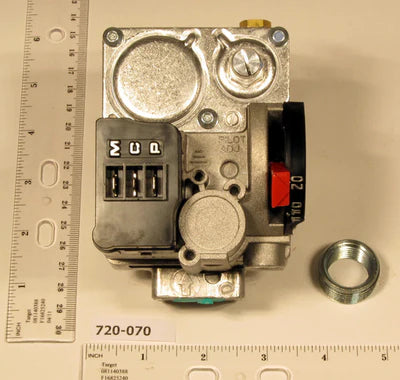

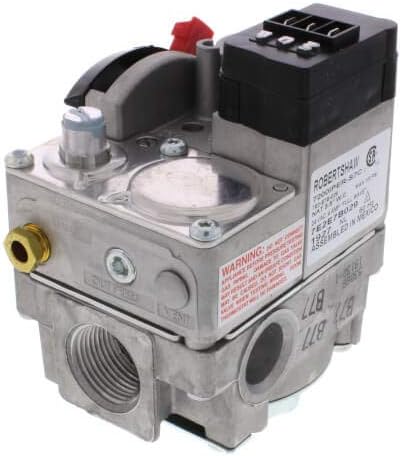

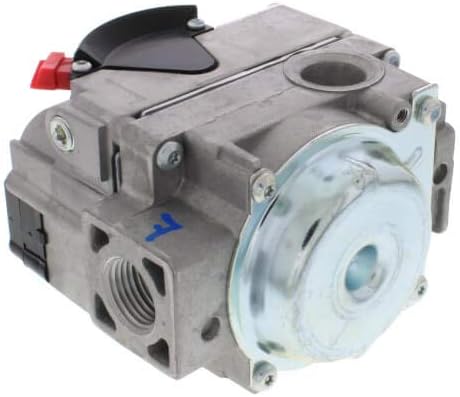

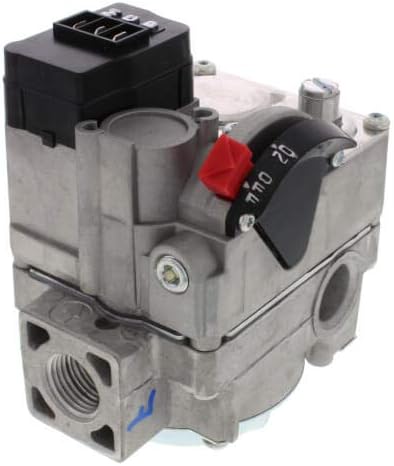

Robertshaw 720-070 24v Gas Valve 150000 BTU

Product Description

Robertshaw 720-070 gas valve is a versatile 24-volt slow-opening pilot ignition valve. Suitable for commercial and industrial applications, it features a 1/2-inch by 3/4-inch NPT connection and supports natural gas and propane. With a maximum flow rate of 150,000 BTU, this valve is designed for various heating applications and can replace several models.

• 24 volts operation
• 150,000 BTU capacity
• Compatible with natural gas and propane

Product Highlights

Ideal for replacing constant pilot valves, the Robertshaw 720-070 combines manual and automatic functionalities for safety and performance.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 720-070
• Country of Origin: Mexico

Technical Specifications

• Electrical Ratings: 24 VAC, 0.5 amps, 50/60 Hz
• Pressure Regulator: Natural Gas - 3.5 W.C., LP Gas - 11.0 W.C.
• Pilot Outlet: 1/4 tubing
• Operating Temperature: -40 to 175 degrees Fahrenheit
• Maximum Inlet Pressure: 14 W.C. (0.5 PSI)
• Connection Size: 1/2 x 3/4 Inch
• Nominal Capacity: 150000 BTU
• Ignition Type: Intermittent Pilot/Spark
