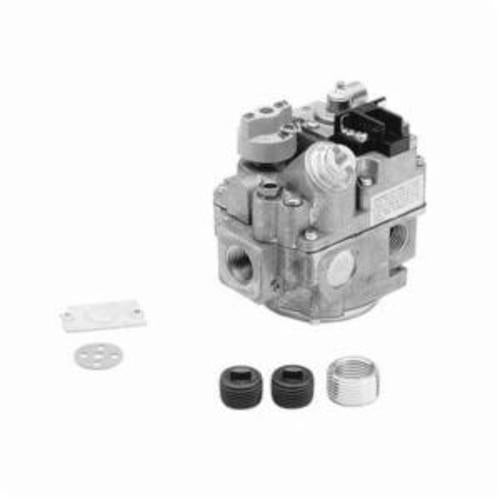

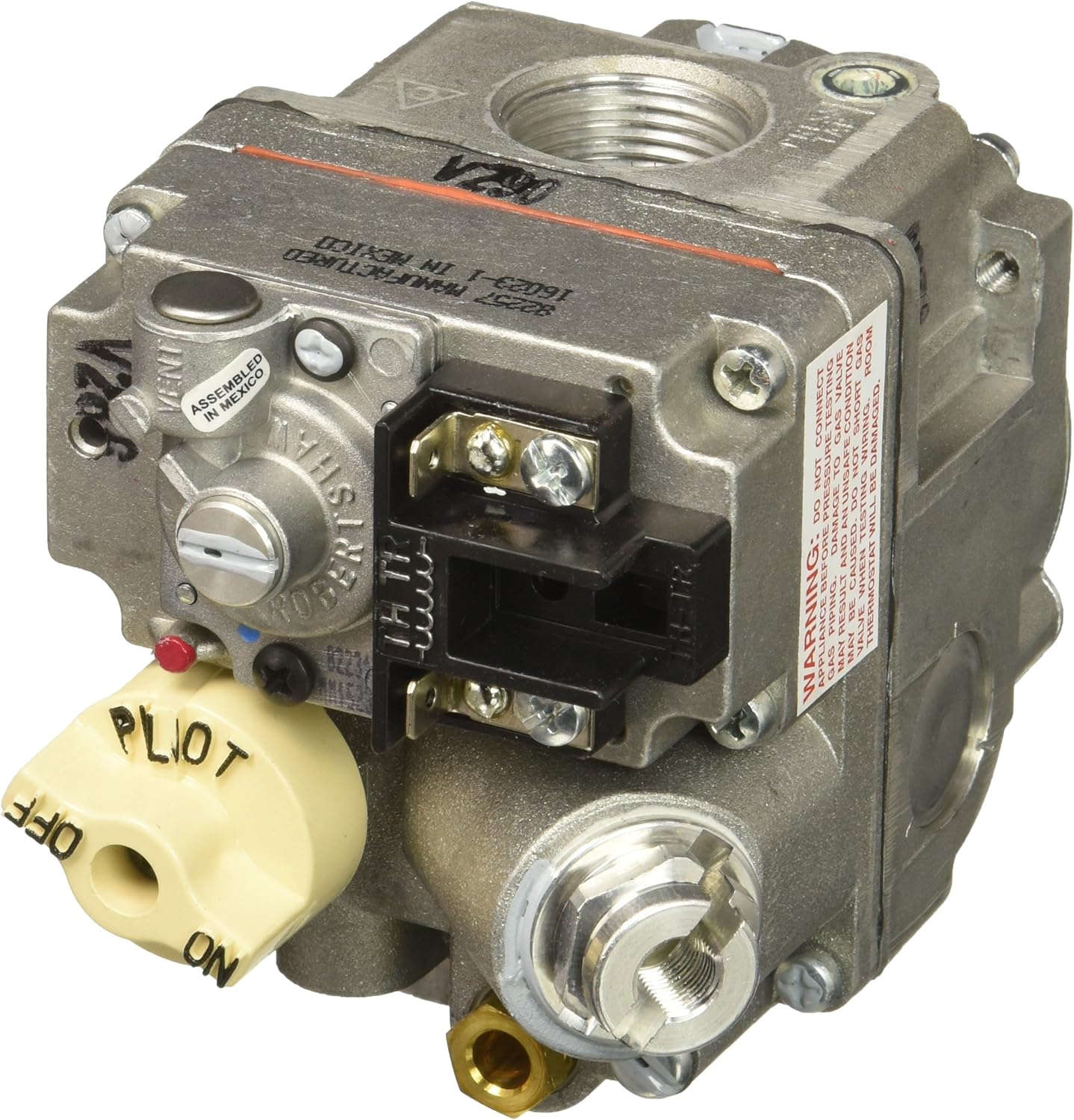

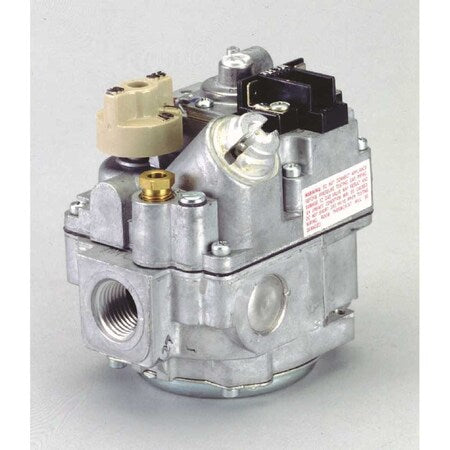

Robertshaw 700-400 Combination Gas Valve, Fast Opening, 240000 Btu/hr, 1/2 x 3/4 in

Product Description

The Robertshaw 700-400 is a combination gas valve designed for both natural gas and liquid propane applications. This valve operates at a nominal capacity of two hundred forty thousand Btu per hour. It features a standing pilot ignition system, suitable for residential and commercial uses.

• Gas cock dial for easy operation.
• Inlet and outlet connections sized at one half inch and three quarter inch.
• Factory set at three point five inches water column pressure for natural gas.

Product Highlights

This gas valve is essential for controlling gas flow in heating appliances, ensuring safety and efficiency.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 700-400

Technical Specifications

• Nominal Capacity: 240000 Btu/hr
• Gas Type: Liquid Propane/Natural Gas
• Coil Voltage: 24 VAC/12 VDC
• Nominal Size: 1/2 x 3/4 in
• Ignition Type: Standing Pilot
• Pressure Rating: 0.5 psi
• Temperature Rating: -40 to 175 deg F
• Maximum Inlet Pressure: 14 in WC
