Product Description

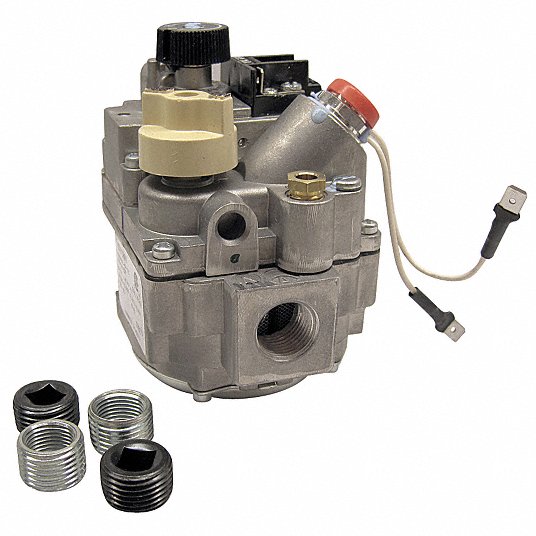

The Robertshaw 700-434 is a gas valve with a slow opening, designed for applications requiring 100k BTU and 24V. This valve offers replacement flexibility with capacities ranging to 720,000 BTU, three-position outlets and multi-positional capability, offering unlimited replacement possibilities. The valve is factory set at 3.5 WC natural gas.
- Gas cock dial marking Off - Pilot - On
- Pilot outlet 1/4 tubing
- Ambient temperature of -40 °F to 175 °F
Product Highlights
This Robertshaw gas valve features a slow opening for soft ignition and is suitable for natural or LP gas.
Product Information
Standard Information
-
Brand: ROBERTSHAW
-
Manufacturer Part Number: 700-434
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Robertshaw
-
MPN: 700-434
-
UPC: 094714299980
-
Product Type: VALVE
-
Manufacturer: ROBERTSHAW
-
Product Group: Home Improvement
-
Series Application: 24 Volt Combination Gas Valve
-
Pressure Regulation: Hi-Lo 2" - 4"
-
Capacity: 100,000 BTU
-
Inlet Size: 1/2"
-
Electrical Rating: 24V AC @ 0.2 Amps, 50/60 Hz|12V DC @ 0.18 Amps, 50/60 Hz
-
Comments: Slow opening feature for soft ignition
-
Outlet Size: 1/2"
-
Side Outlets: 1/2"
-
Exterior Finish: Metal
-
Inlet Connection Type: Threaded
-
Outlet Connection Type: NPT
-
Number of Ports: 2
-
Specification Met: ASME
-
Item model number: 700-434
-
Item Package Quantity: 1
-
Measurement System: inch
-
Batteries Required?: No
-
Pilot Type: Standing
-
Number of Stages: Single
-
Opening Characteristic: Slow
-
Max. Heating Capacity: 100,000 BtuH
-
Voltage: 24V AC
-
Flow Direction: Straight-Thru
-
Electrical Connections: Screw/Spade Terminal
-
Inlet/Outlet Connection Size: 1/2 in
-
Inlet/Outlet Connection Gender: Female
-
Inlet/Outlet Connection Type: NPT
-
Sensing Type: Flame Sensor
-
Pressure Regulator Included: Yes
-
Pressure Tap Inlet Included: Yes
-
Fuel Conversion Kit Included: Yes
-
Side Taps Included: Yes
-
Includes On/Off Switch: Yes
-
Mechanical Thermostat Included: No
-
Pilot Generator Kit Included: No
-
Reducer Bushings: None
-
Compatible Fuel Type: Liquid Propane, Natural Gas
-
Installation Orientation: Versatile
-
Pilot Port Connection Size: 1/4 in
-
Pilot Port Connection Type: Compression
-
Operating Temperature - Maximum: 175 °F
-
Operating Temperature - Minimum: -40 °F
-
Manufacturer Series: 700
-
Manufacturer Part Number: 700-434
-
UNSPSC: 40141604
-
Item Number: 700-434
-
Compatible Brand: ROBERTSHAW
-
Item Height: 3.500
-
Item Width: 4.700
-
Model: 700-434
-
California Prop 65 Warning: N
-
Country of Origin: MX
-
Bundle Description: No
-
Manufacturer Warranty: 1 year
-
Custom Bundle: No
-
Type: Gas Valve
-
Length: 5.800
