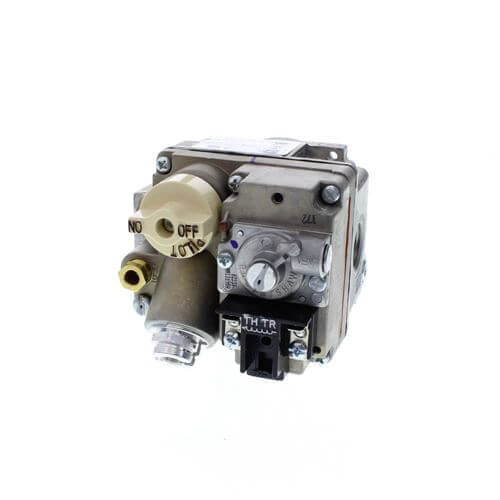

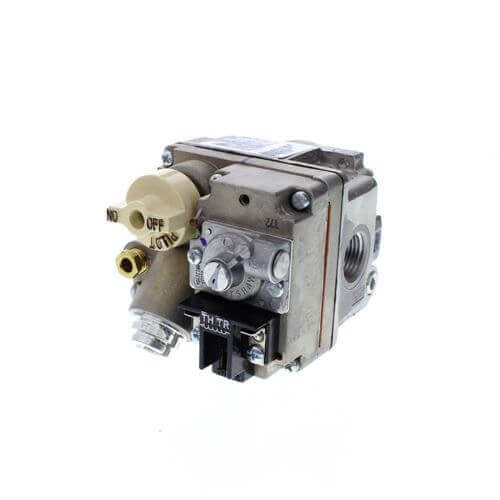

Robertshaw 700-409 24V 1/2 x 1/2 Standing Pilot Natural Gas Valve 240000 BTU

Product Description

The Robertshaw 700-409 24V 1/2 x 1/2 Standing Pilot Natural Gas Valve is designed for industrial and commercial applications. Featuring a 1/2-inch inlet and outlet, it is capable of handling a maximum flow rate of 240,000 BTU/hr. This valve includes two reducer bushings for easy installation and is constructed from durable materials to ensure longevity.

• 240,000 BTU/hr maximum flow rate
• 1/2-inch inlet and outlet
• Includes two reducer bushings for easy installation

Product Highlights

This natural gas valve by Robertshaw is CSA-certified for safety and is suitable for both industrial and commercial applications. It promises durability and efficiency for system integrators.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 700-409

Technical Specifications

• Electrical rating: 24 VAC 0.2 amps 50/60 Hz
• Pressure regulator: Factory set at 3.5 W.C. for natural gas
• Pilot outlet: 1/4-inch tubing
• Gas cock dial marking: Off-Pilot-On
• Terminal type: Combination screw/spade
• Ambient temperature: 40 to 175 degrees Fahrenheit
• Maximum inlet pressure: 14 W.C. (1/2 PSI)
• Fuel type: Natural gas
