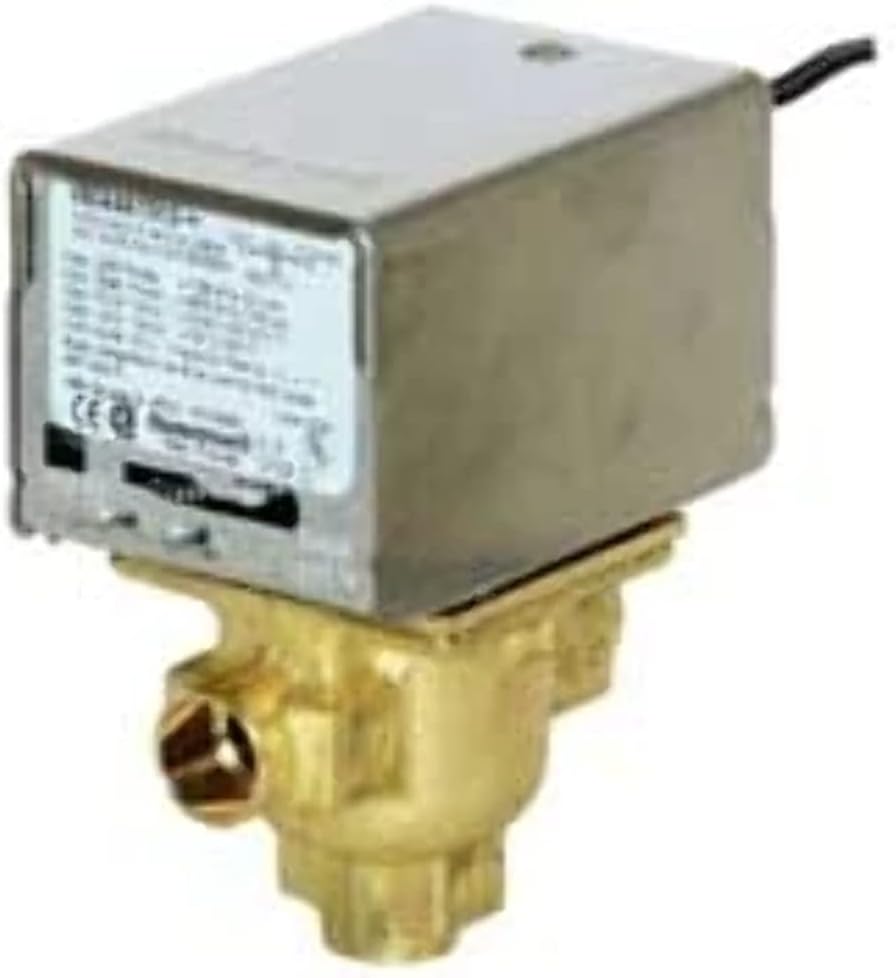

Honeywell V8044A1002 24V 1/2 Flare Connection Low Voltage Motorized Zone Valves with 4 Cv Capacity

Product Description

The Honeywell V8044A1002 is a 24V low voltage motorized zone valve with a 1/2 inch flare connection. Designed for controlling the flow of hot water, this valve features a straight-through pattern and is normally in a closed position. It has a capacity of 4 Cv, a maximum operating temperature of 200 degrees Fahrenheit, and is rated for a close-off pressure of 20 psi. The valve assembly includes both an actuator and a valve for efficient operation. In case of a power failure, the actuator switch has a manual opener that automatically returns to auto mode once power is restored.

• 24V low voltage operation
• 1/2 inch flare connection
• Manual opener for power failure

Product Highlights

This Honeywell motorized zone valve can be installed without disassembling the valve and the powerhead can be removed and replaced without the need to drain the system. The valve is ideal for controlling hot water flow in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V8044A1002

Technical Specifications

• Valve Size: 1/2 inch
• Valve Connection: Flare
• Piping Configuration: Straight
• Body Material: Brass
• Valve Application: Water
• Max Pressure: 125 psi WOG
• Weight: 2.50 pounds
• Operating Temperature: 200 degrees Fahrenheit
