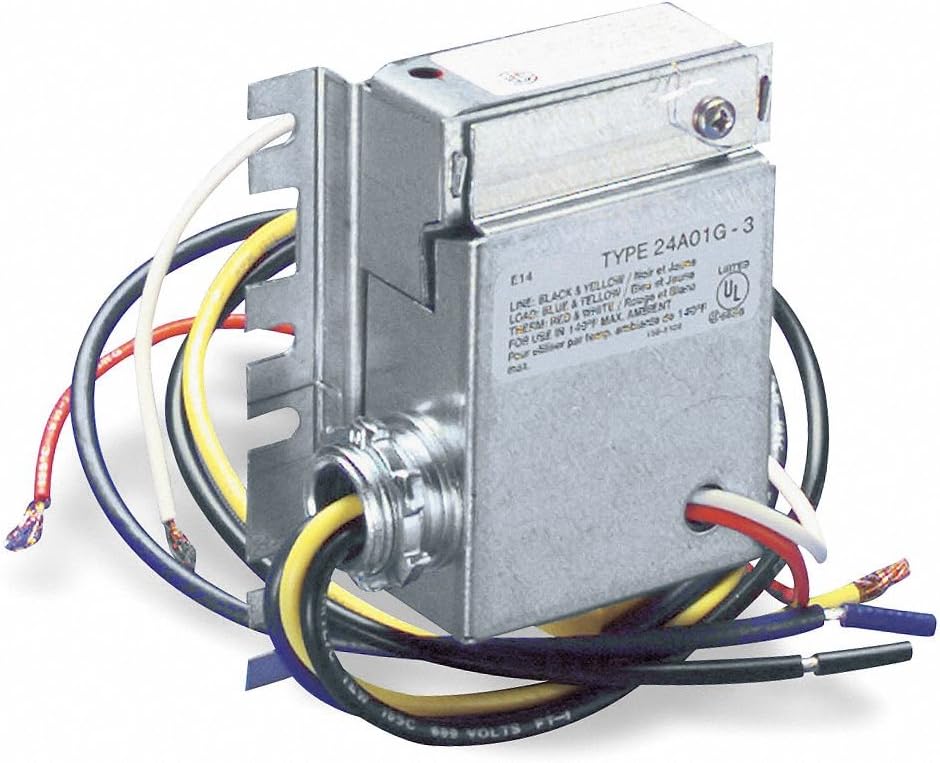

White-Rodgers 24A01G-3 Electric Heat Relay 240Vac Single Pack Replacement 24A01G-2 24A01G-8 2E346

Product Description

The White-Rodgers 24A01G-3 Electric Heat Relay is designed to operate with 240Vac, providing efficient heat control in electrical heating systems. Featuring a robust SPST, normally open contact type, it is perfect for using with baseboard heaters and other electrical heat sources.

• Equipped with a silent operation technology.
• Automatic 45-second time delay feature for added safety and efficiency.
• Dual Level-Temp capable of controlling two separate loads.

Product Highlights

This relay enables low voltage 2-wire thermostats to control line voltage loads, making it highly versatile for various heating applications. Its convenient conduit hub or screw mounting options, along with universal break-off mounting tabs, offer flexible installation options.

Product Information

Standard Information

• Power Source: Electric
• Operating Voltage: 240 Volts

Technical Specifications

• Model Number: 24A01G-3
• Wattage: 6000 watts
• Current Rating: 25 Amps, 12 Amps
• Measurement System: Imperial
• Maximum Switching Current: 12 Amps
• Maximum Switching Voltage: 240 Volts
• Operation Mode: Automatic
• Product Dimensions: 5.8 x 3.8 x 2.3 inches
