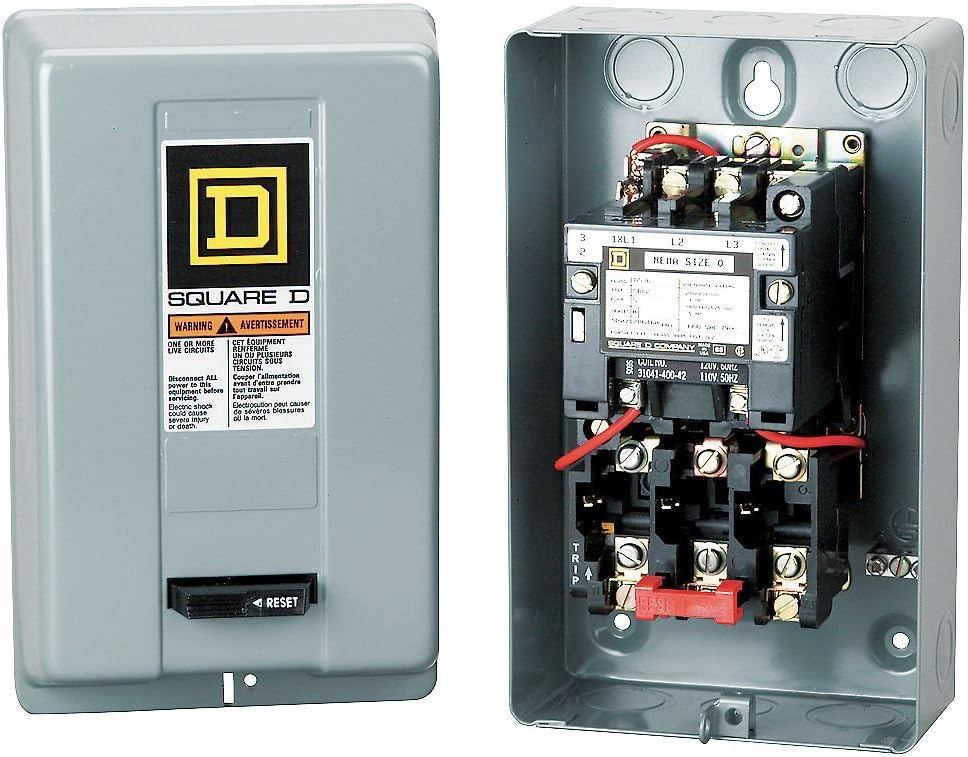

Schneider Electric 8536SBG2V03 Motor Starter 600 Volts 18 Amps NEMA Size 0

Product Description

Schneider Electric's 8536SBG2V03 is a robust non-reversing motor starter designed for reliable performance in industrial settings. Ideal for full voltage starting and stopping of AC squirrel cage motors, this NEMA Size 0 starter is essential for many motor control applications.

• 18 Amps rating with 600 Volts power handling capability.
• Features a melting alloy overload relay for protection.

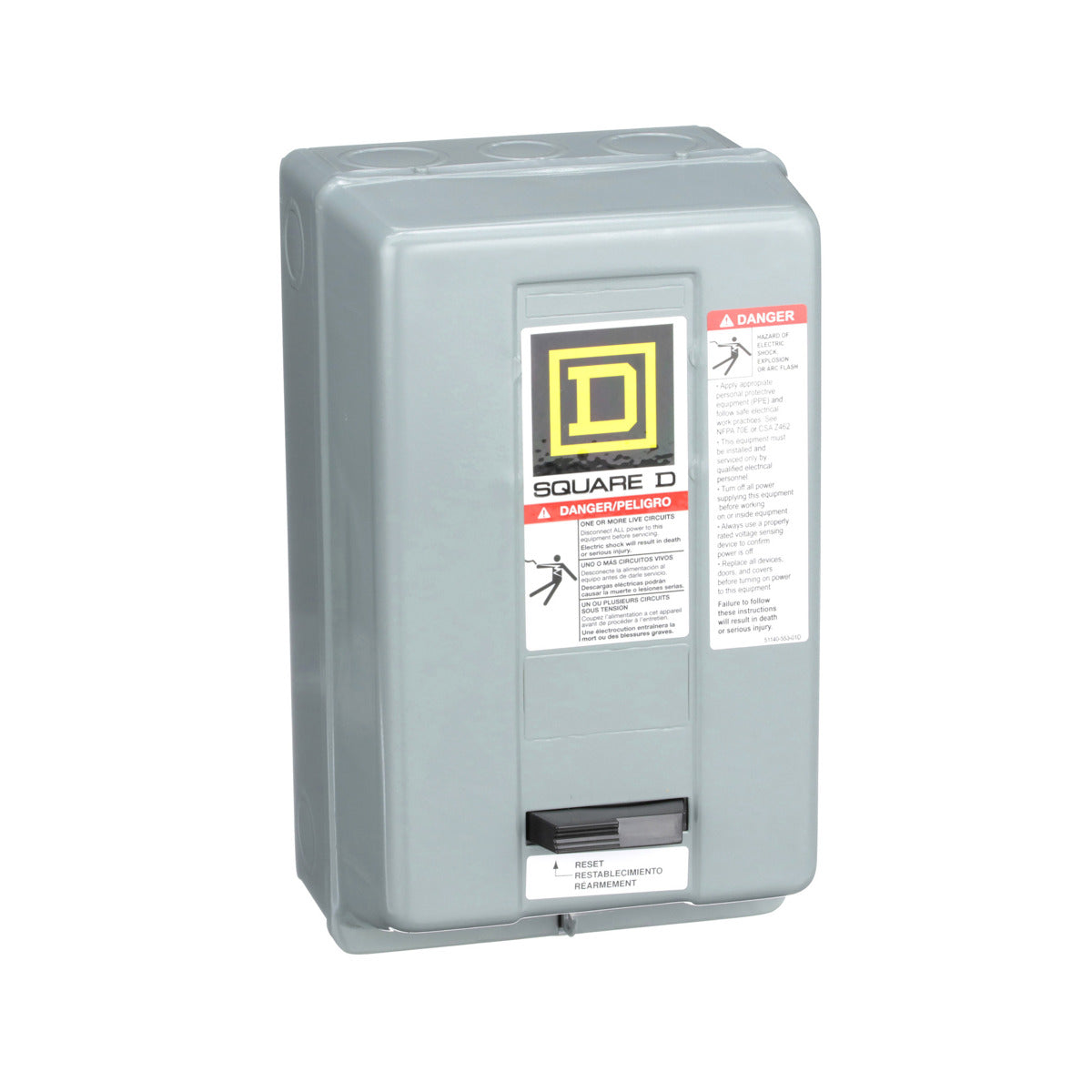

• Encased in a durable painted sheet steel NEMA 1 enclosure.

Product Highlights

This motor starter is engineered to manage 3 phase motors efficiently, with power ratings of 3 HP at 200 and 230 VAC, up to 5 HP at 460 and 575 VAC.

Product Information

Standard Information

• Brand: Schneider Electric
• Operating Coil Voltage: 220/240 VAC

Technical Specifications

• Voltage: 600 Volts
• Amperage: 18 Amps
• Contact Type: Normally Open
• Certification: CSA, UL, NEMA
• Enclosure: NEMA 1 Painted Sheet Steel

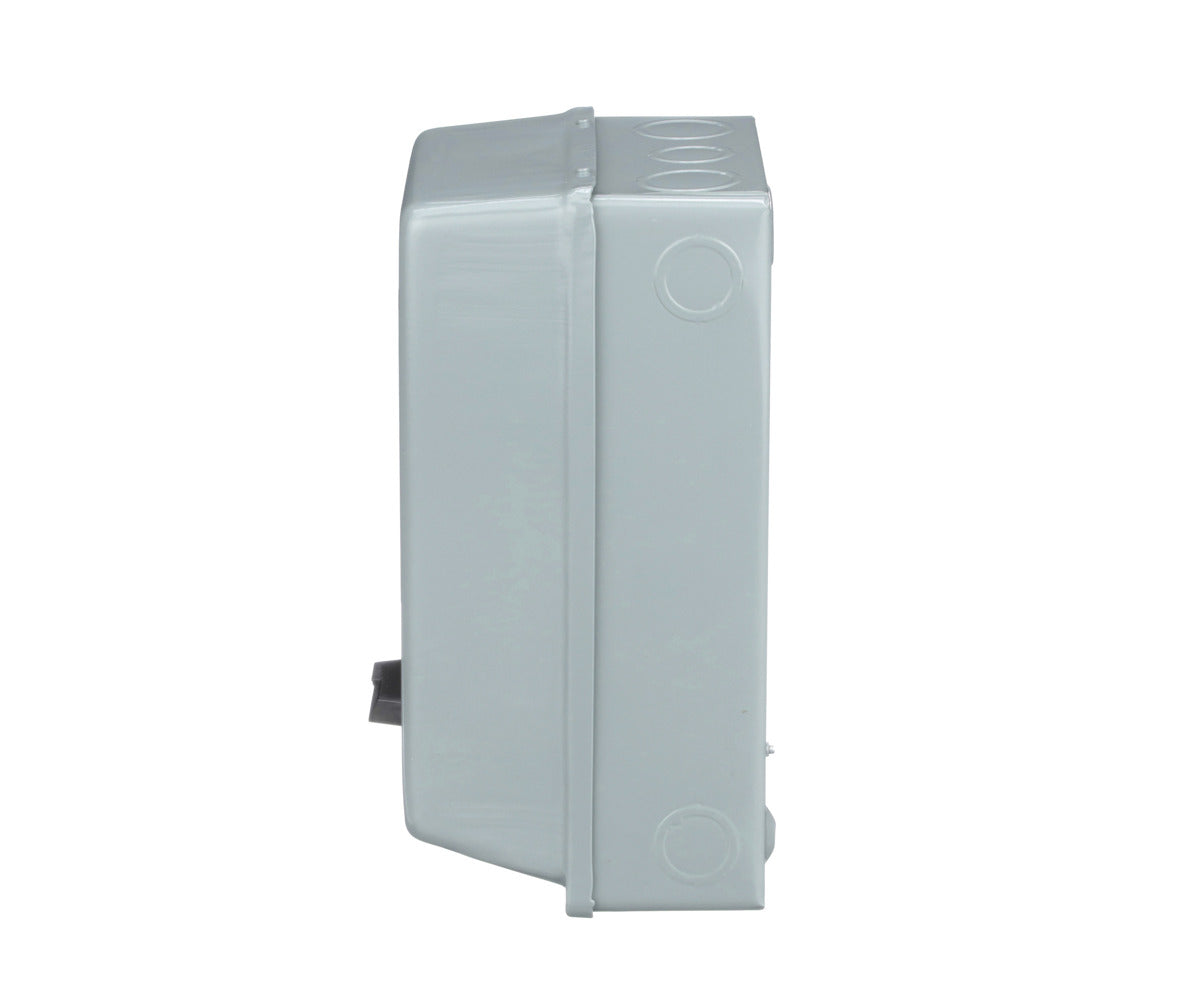

• Dimensions: Height 10 inches, Width 6 inches, Depth 5.56 inches
