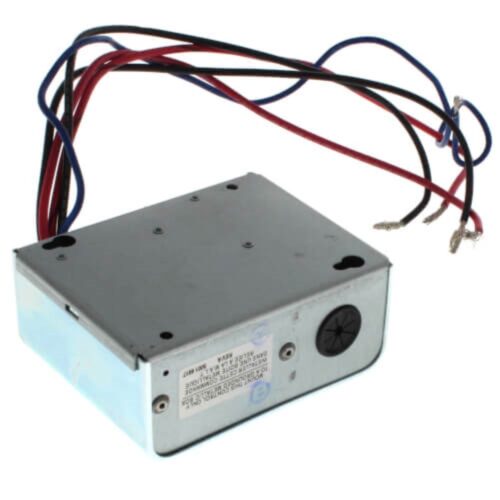

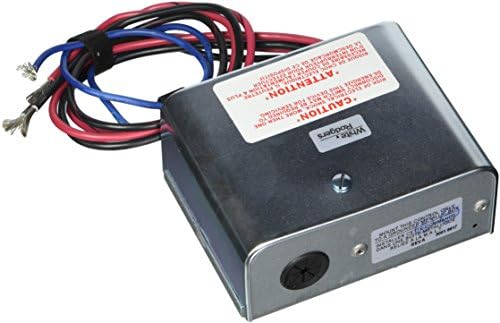

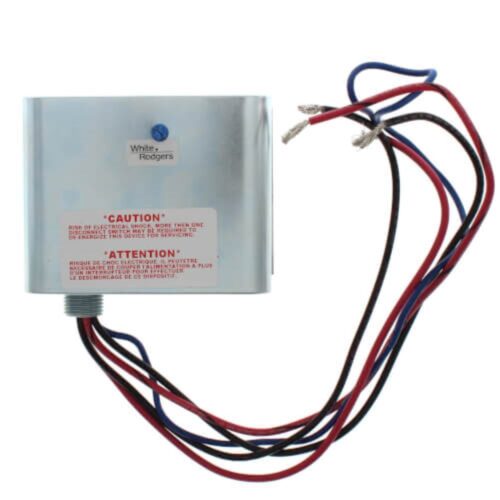

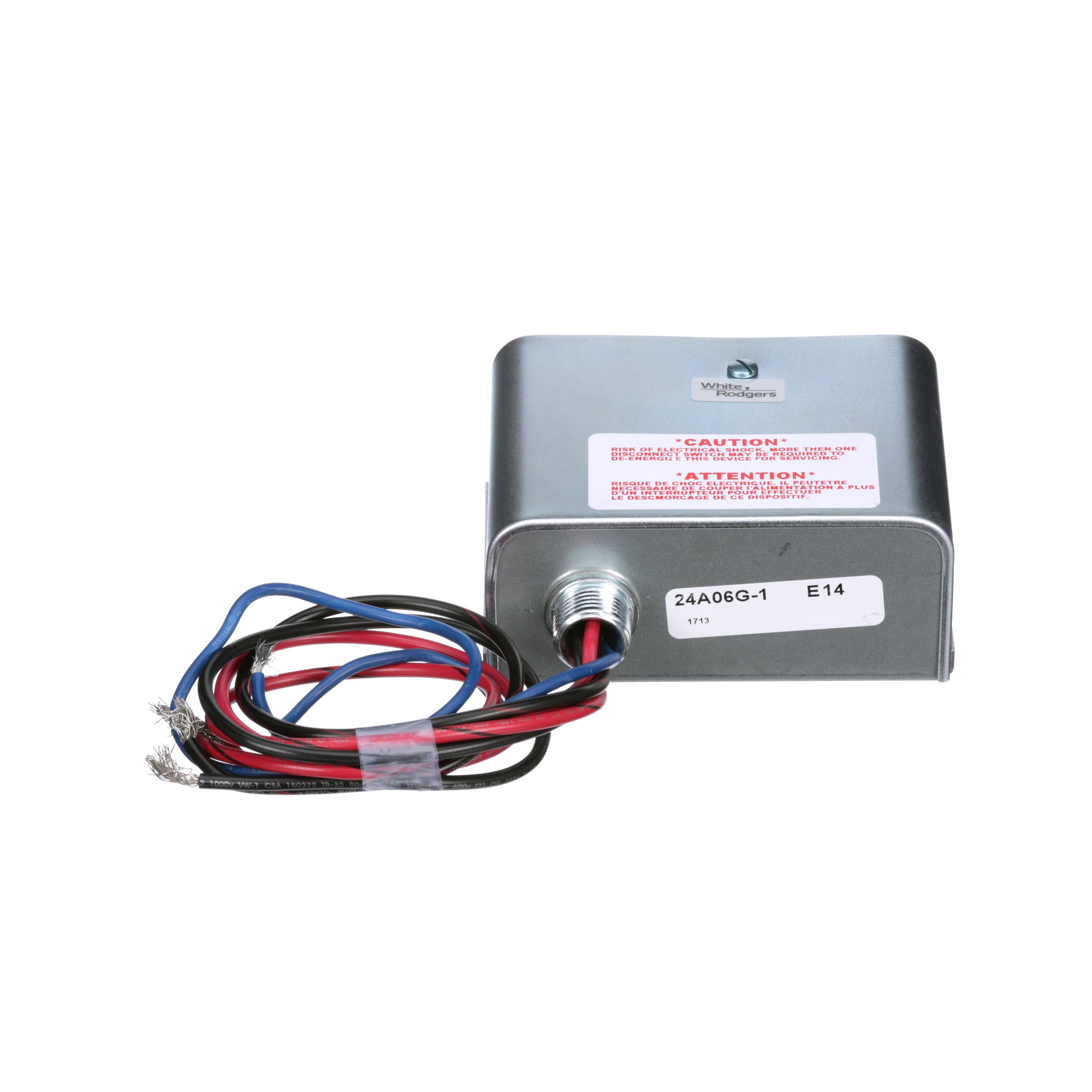

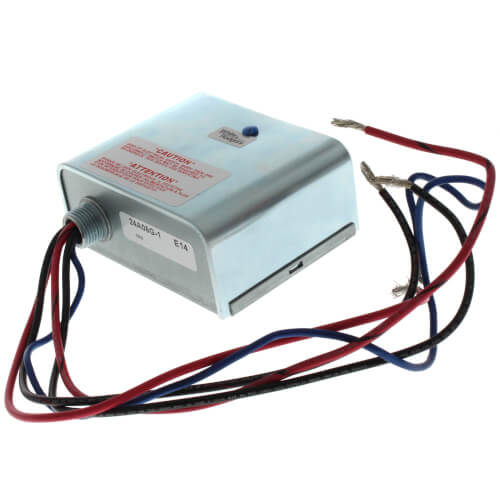

White-Rodgers 24A06G-1 Level-Temp Control

Product Description

The WHITE-RODGERS 24A06G-1 Level-Temp Control is an electric heat temperature control system. It operates on a 240 Volt AC 60 Hertz input signal and is designed for electric heat applications. The control features a dual-level configuration and is suitable for controlling two separate loads with a single low voltage thermostat.

• Operates on 240 Volt AC 60 Hertz input signal.
• Features a dual-level configuration.
• Suitable for controlling two separate loads with a single low voltage thermostat.

Product Highlights

This Level-Temp control provides silent operation and narrow differential control for heating and cooling installations. Ideal for use with electric heating equipment.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 24A06G-1
• Country of Origin: United States

Technical Specifications

• Input Signal: 240 Volt AC 60 Hertz
• Voltage Rating: 240 Volt AC
• Maximum AC Voltage Rating: 240 Volt
• Frequency Rating: 60 Hertz
• Operating Temperature: -20 to 120 Deg F
• Size: 4-13/16 Inch Width x 2-1/8 Inch Depth x 3-13/16 Inch Height
• Mounting: Conduit Hub/Screw
• Approval: UL, CSA
• Type: Dual Level
• Lead Length: 18 Inch
• Thermostat Current: 0.2 Amp
• AC Resistive Rating: 6000 Watt 240 Volt 25 Amp
• Time Delay: 45 Second
• Motor Rating: 12 Amp at 240 Volt (Full Load), 72 Amp at 240 Volt (Locked Rotor)
• Contact Configuration: (2) SPST (Normally Open)
• Manufacturer Name: White-Rodgers
• Manufacturer Part Number: 24A06G-1
• Series/Model: 24A
• Application: Electric Heating
• Wiring: 18" Leadwires
• Ambient Conditions: -20° to 120°F
• Voltage: 240v
• Hertz: 60
• Height: 1-7/8"
• Width (Inches): 4-1/2"
• Depth (Inches): 2-7/16"
• A.C. Resistive: 25A 6000W 240v
• Position: Normally Open
• Poles: 2
• Volts AC: 240
