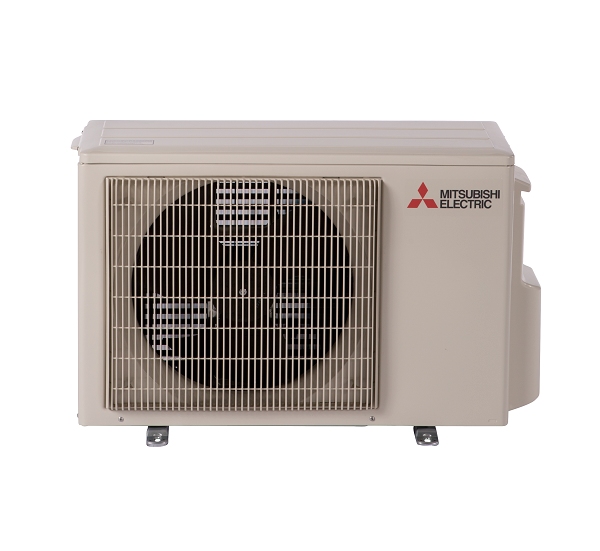

Mitsubishi MUZ-WR24NA-U1 Outdoor Unit 24 MBH 16 SEER HP Single-Zone 230/1

Product Description

The Mitsubishi MUZ-WR24NA-U1 is an outdoor unit designed for heating and cooling systems. It delivers a cooling capacity of twenty-two thousand five hundred to twenty-four thousand eight hundred BTU per hour. Efficient and reliable, this unit belongs to the M-Series with a SEER rating of sixteen.

• Cooling Capacity: 22500-24840 BTU/h
• Energy Efficiency Ratio (EER): 8
• Refrigerant Type: R-410A

Product Highlights

This unit is suitable for single-zone applications and offers flexible piping options for installation. Its compact design makes it ideal for various residential settings.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: MUZ-WR24NA-U1

Technical Specifications

• Dimensions: 12 x 36-5/16 x 9-13/16 inches
• Weight: 146.1 pounds
• Voltage: 208-230 VAC
• Phase: Single
• Cooling Rated Capacity: 22500 BTU/h
• Heating Capacity: 15600-26000 BTU/h
• Liquid Line Size: 3/8 inch
• Suction Line Size: 5/8 inch
• Cubic Measurement: 14.9635
• Maximum Piping Height: 50 feet
• Maximum Piping Length: 100 feet
• Rated Load Amps: 10
• UL Listed: Yes
• ETL Listed: Yes
• Refrigerant Charge: 3 lbs 9 oz
