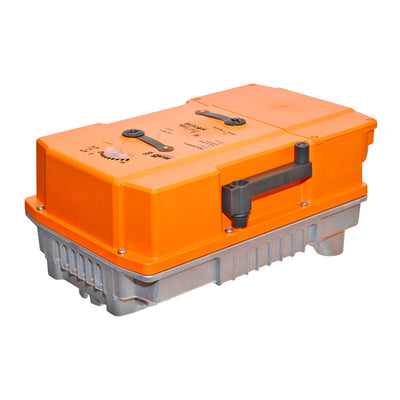

Belimo PRBUP-MFT-T-200 Valve Actuator 24-240V Non-Spring MFT for 8 BFV

Product Description

The Belimo PRBUP-MFT-T-200 is a valve actuator designed for HVAC and industrial applications. It operates without a spring and supports a voltage range of 24 to 240V, making it versatile for various systems. The MFT technology ensures precise and programmable control.

• Non-spring, 24-240V voltage operation
• MFT programmable control for precision
• Compatible with 8 BFV valves

Product Highlights

Ideal for managing flow in HVAC systems and industrial setups. Compatible with 8 BFV valves for seamless integration.

Product Information

Standard Information

• Brand: Belimo
• MPN: PRBUP-MFT-T-200
• Voltage: 24-240V AC/DC

Technical Specifications

• Angle of Rotation: 90 degrees
• ANSI Class: Consistent with 125
• Controllable Flow Range: 90B0 rotation
• Cv: 3136
• End Connection: Lug types
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Valve Size: 8 inches (200 mm)
• Actuator Type: Non fail-safe
• Auxiliary Switches: 2 x SPDT
• Control Type: MFT/Programmable
• Degree of Protection: IP66/67 NEMA 4X UL Enclosure Type 4X
• Electrical Connection: Terminals
• Manual Override: 7 mm hex crank supplied
• Power Consumption (Holding): 6 W
• Power Consumption (Running): 20 W
• Running Time (Motor): 35 s / 90B0
• Torque: 160 Nm
• Voltage AC/DC: AC 24...240 V / DC 24...125 V
