Product Description

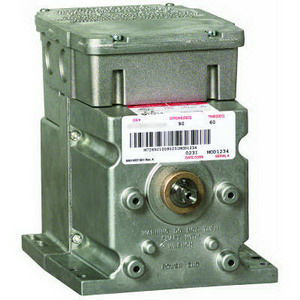

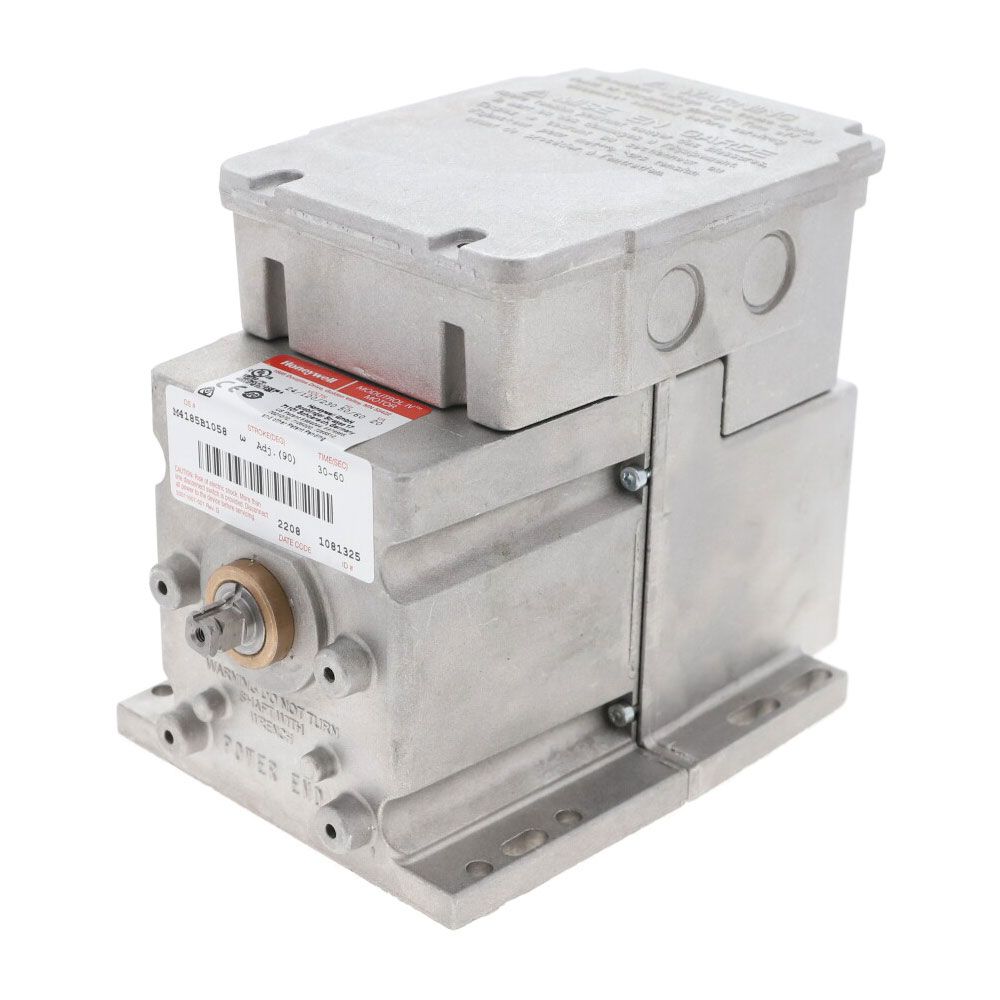

The Honeywell M4185B1058 Spring Return Modutrol IV Motor is designed for various industrial and HVAC applications. It operates at 24/120/230 volts and includes an auxiliary switch for added control. With its robust performance and reliable features, this actuator is suitable for manufacturing, automation, and more.
- Spring return mechanism
- Quick-connect terminals
- Foot-mounted design
Product Highlights
This product features a durable design and spring return mechanism that ensures the actuator returns to the original position when power is cut. It is suitable for controlling equipment that requires precise two-position operation.
Product Information
Standard Information
-
Brand: Honeywell
-
Model: Modutrol IV
Technical Specifications
-
MPN: M4185B1058
-
Voltage Rating: 24/120/230 V, 50/60 Hz
-
Torque Rating: 60 lb-in
-
Power Consumption: 20 VA
-
Dimensions: 6-7/16 Inch H x 5-1/2 Inch W x 8-3/4 Inch D
-
Material: Die Cast Aluminum
-
Shaft Size: 3/4 x 3/4 Inch
-
Control Signal: 2-Position, SPST
-
Fail Safe Mode: Spring Return
-
Auxiliary Switch: 1
