Square D 9037HG33F3Z20 Tank Liquid Level Switch Close On Rise Stainless Steel 2-1/2 MNPT

Product Description

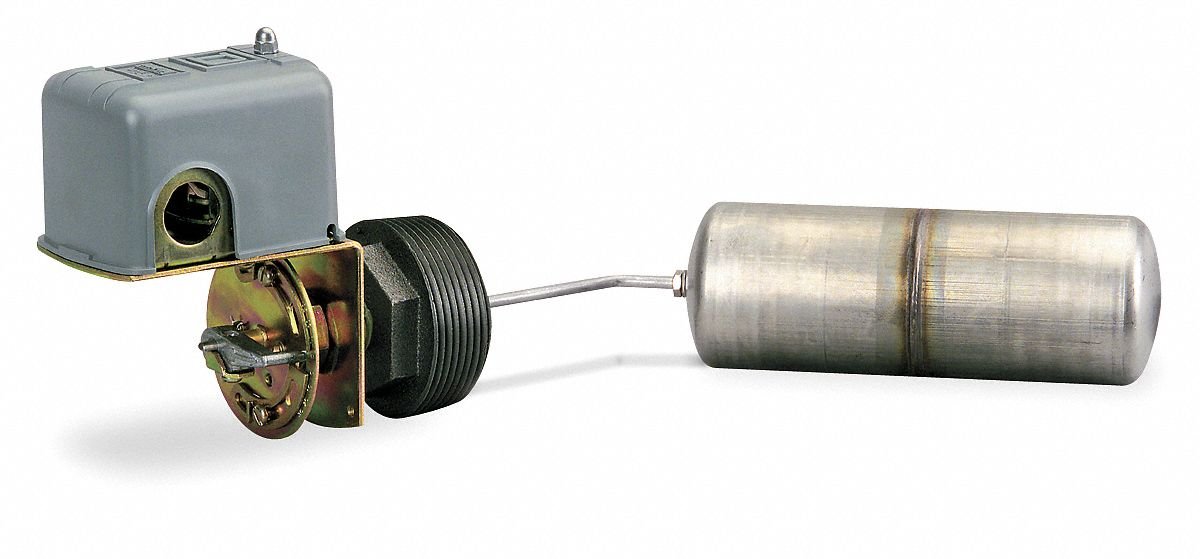

Experience dependable liquid level control with the Square D Tank Liquid Level Switch, model 9037HG33F3Z20. This robust device is crafted from durable stainless steel, ensuring long-lasting reliability in various industrial environments.

• Automatically controls liquid level in closed tanks
• Features a side-mounting design
• Equipped with a stainless steel float and stem

Product Highlights

Designed for single-phase applications, the Square D float switch offers a close on rise function, making it ideal for operation in environments with temperatures up to 250 degrees Fahrenheit. Its DPST contact form and side mounting allow for easy installation and straightforward operation.

Product Information

Standard Information

• Brand: Square D
• MPN: 9037HG33F3Z20

Technical Specifications

• Float Material: Stainless Steel
• Stem Material: Stainless Steel
• Maximum Operating Pressure: 50 psi
• NEMA Rating: 1
• Electrical Connections: Screw Clamp
• Float Rod Angle: 45 Degrees
• Float Travel: 6.25 inches
• Overall Length: 14.66 inches
