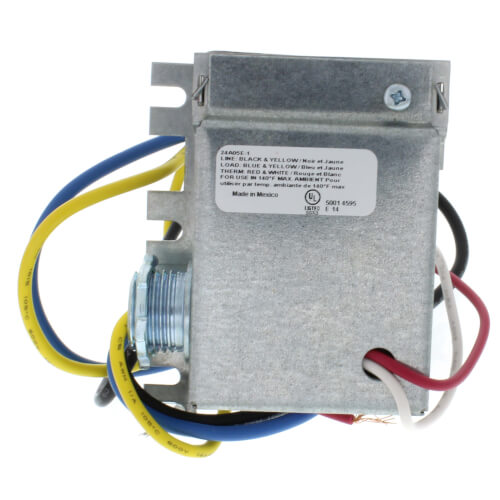

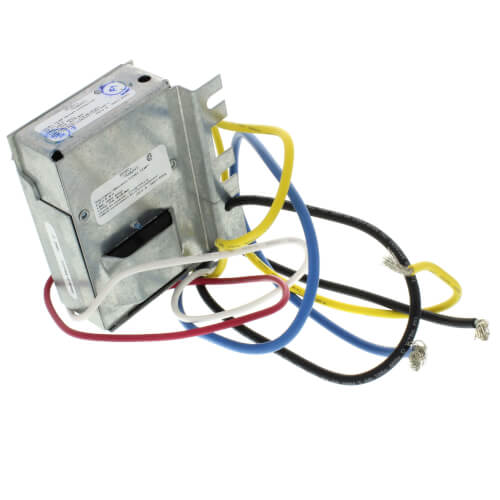

WHITE-RODGERS 24A05E-1 Electric Heat Relay 208V (Each)

Product Description

The WHITE-RODGERS 24A05E-1 Electric Heat Relay is built to control single-level electric heating systems using 208 volts. This relay is suitable for various commercial and industrial settings.

• Durable construction ensures long-term performance.
• Designed for easy installation and integration.
• Features temperature sensing technology for accurate control.

Product Highlights

The 24A05E-1 maintains the desired temperature effectively and includes safety measures to avoid overheating, protecting connected equipment.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• MPN: 24A05E-1

Technical Specifications

• Voltage: 208 VAC
• Frequency: 60 Hz
• Type: SPST Normally Open
• Delay: 45 Seconds
• Height: 1-7/8 inches
• Width: 4-1/2 inches
• Depth: 2-7/16 inches
• Weight: 1.14 pounds
• A.C. Resistive Ratings: 22 A, 5200 W
• Electrical Ratings (AFL): 12 A @ 208 VAC
• Electrical Ratings (ALR): 72 A @ 208 VAC
• Operating Temperature Range: -20°F to 120°F
• Thermostat Current: 0.2 A
