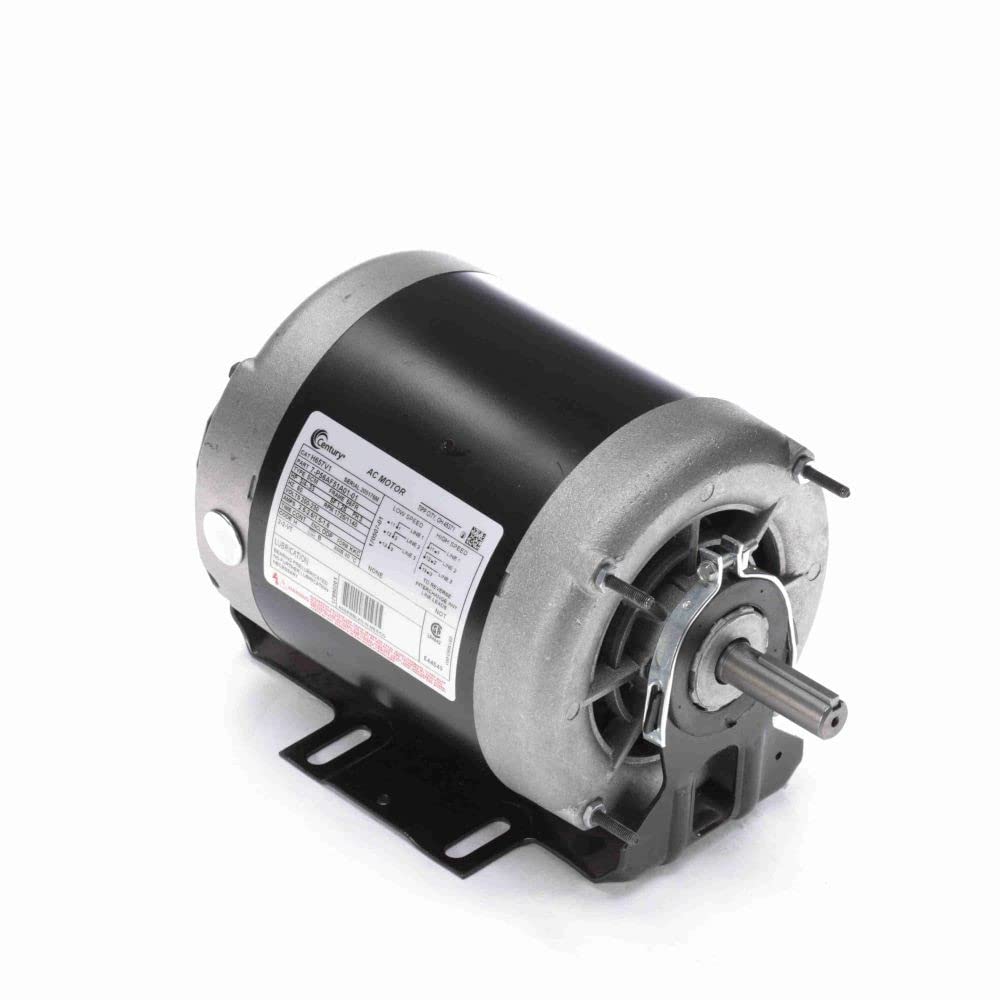

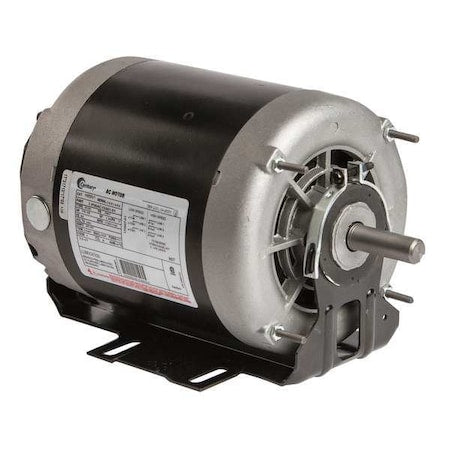

Century H657V1 3-Phase Belt Drive Motor 200-230V 3/4HP 1725/1140 RPM

Product Description

The Century H657V1 motor is a high-performance, efficient motor designed for various industrial and HVAC applications. Known for its reliability and durability, this motor operates at dual speeds of 1725 and 1140 RPM.

• Dual-speed motor designed for continuous duty
• Operates on 200-230V AC with a full load amp range of 2.6/1.60
• Features a 56 frame design with an open dripproof enclosure.

Product Highlights

This motor boasts a robust design with a steel frame, supporting a range of heavy-duty applications. It's been engineered to perform both in harsh industrial environments and standard commercial settings. The Century H657V1 can be mounted in all angle positions, ensuring versatility in installation and use.

Product Information

Standard Information

• Brand: Century
• MPN: H657V1

Technical Specifications

• Phase: Three-Phase
• Service Factor: 1.25
• Insulation Class: B
• Max. Ambient Temperature: 40 Degrees C
• Motor Shaft Rotation: CW/CCW
• Overall Length: 10 11/16 inches
