Product Description

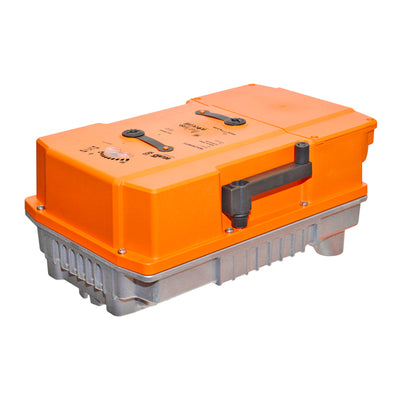

The BELIMO PRBUP-3-T-200 Valve Actuator is designed for robust performance in controlling 8 inch butterfly valves. This non-spring return actuator operates on a 24-240V system, offering versatile connectivity with both AC and DC supply. Ideal for industrial settings requiring precise valve regulation.
- Provides 90 degrees of rotation with visual position indicators.
- Equipped with two auxiliary switches, one preset at 10 degrees open and the other adjustable in the field.
- Universal power supply compatible with AC 24 to 240 volts and DC 24 to 125 volts.
Product Highlights
The actuator features low power consumption and a brushless DC motor for efficient operation. It includes a smart heater with thermostat to prevent condensation and is electronically protected against overload. Adjust running times via NFC app for flexibility.
Technical Specifications
-
Control Type: Floating/3-point
-
Actuator Type: Non fail-safe
-
Voltage: AC 24 to 240V / DC 24 to 125V
-
Protection Category: IP66/67, NEMA 4X, UL Enclosure Type 4X
-
Power Consumption: Holding 6 W, Running 20 W
-
Running Time (Motor): 35 s / 90°
-
Angle of Rotation: 90 degrees
