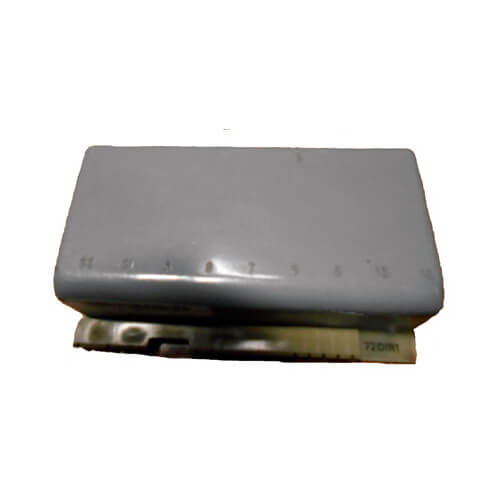

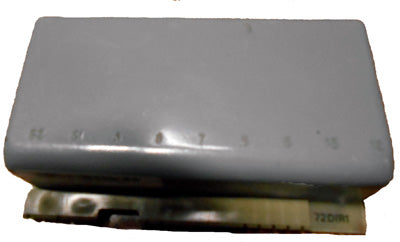

FIREYE 72D1R3T Infrared Auto-Check Amplifier 1 Sec FFRT Replacement 72D1R3

Product Description

The Fireye 72D1R3T is an infrared auto-check amplifier designed for specialized applications. It features a flame failure response time of one second, making it suitable for high-risk operational environments. This product is part of Fireye's series D40-41 Burner Management Controls, which are used for ignition and flame failure protection in oil or gas burners. The amplifier is compatible with plug-in modules that allow for various flame detection methods such as ultraviolet, auto-check infrared, or rectification.

• Quick flame failure response within one second for reliable operations.
• Compatible with various Fireye flame detectors for versatile use.
• Includes meter test jacks for flame signal readout.

Product Highlights

This amplifier ensures safety and functionality by incorporating a safe start check that effectively prevents the start-up if any simulated or real flame signal is detected. The robust design also includes three SPDT and one SPNO load switches for integrating into a comprehensive control system.

Product Information

Standard Information

• Brand: Fireye
• MPN: 72D1R3T

Technical Specifications

• Type: Infrared Amplifier
• Response Time: 1 sec FFRT
• Weight: 0.6 lbs
• Dimensions: 3 x 2 x 2 inches
