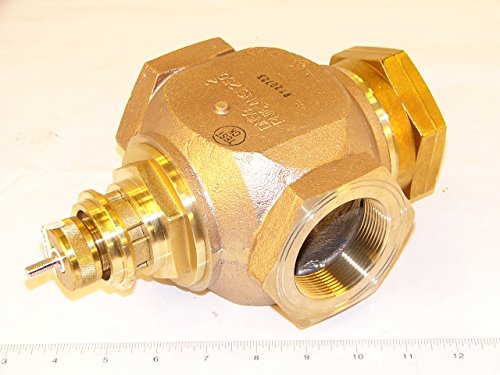

Johnson Controls VG7842ST+3008EP 2 NPT 3-Way Mixing Globe Valve 9 to 13 psig 46.2 Cv

Product Description

The Johnson Controls VG7842ST+3008EP is a 2-inch NPT 3-Way Mixing Globe Valve. It is designed to regulate water and steam flow in HVAC systems. The valve uses a pneumatic actuator and has a flow capacity of 46.2 Cv.

• Three-way mixing
• Brass linear trim
• Standard threaded stem

Product Highlights

This valve is ideal for managing water and steam flow in response to a controller's demands within HVAC systems. It is equipped with a factory-mounted actuator, making it easy to install and reliable in performance.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG7842ST+3008EP
• Model: VG7000 Series

Technical Specifications

• Body Type: Three-Way Mixing
• Trim and Flow Characteristics: Brass Linear
• Stem Type: Standard Threaded Stem
• Actuator Type: Pneumatic
• Spring Range: 9 to 13 psig
• Flow Capacity (Cv): 46.2
• Connection Type: Threaded
• Material: Cast Bronze
• Weight: 21 lbs
• Dimensions: 16 x 8 x 8 inches
